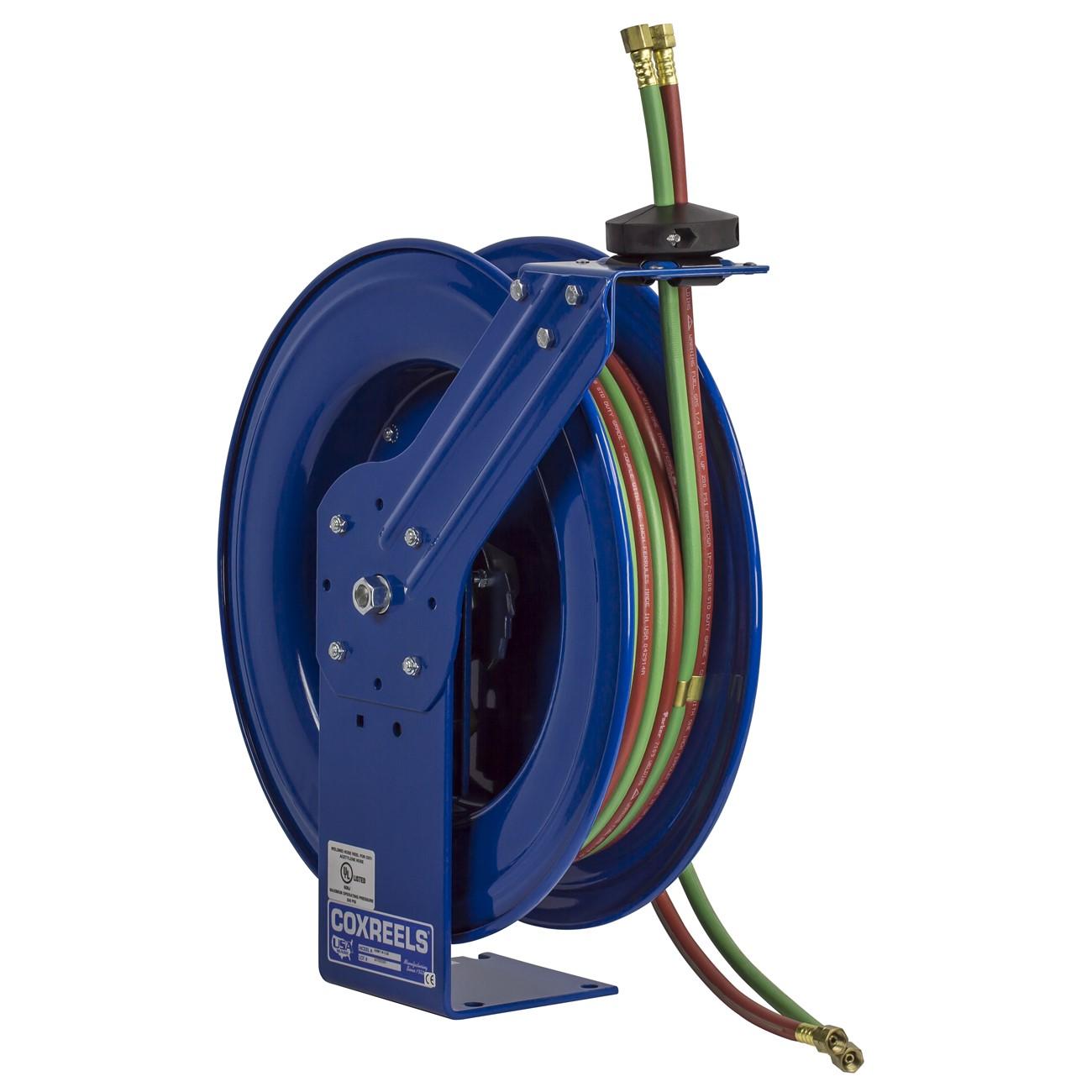

Coxreels SHWT-N-150 Welding Hose Reel 1/4 in 50 Ft

Product Description

The COXREELS SHWT-N-150 is a spring-driven welding hose reel from the SHW Series, designed to manage twin-line welding hose in demanding shop and field environments. Built on a larger chassis than the compact P-W Series, it features Coxreels original Super Hub dual axle support system for increased structural integrity, reduced vibration, and stable operation under load. The reel accommodates 1/4-inch ID hose up to 50 feet and is constructed with heavy-gauge steel throughout. Licensed welding technicians and industrial maintenance professionals are the primary installers of this unit.

The SHWT-N-150 is suited for welding gas distribution in industrial, manufacturing, and fabrication environments where twin-line hose management is required. Its multi-position guide arm allows mounting to walls, floors, ceilings, and vehicles, making it adaptable to fixed and mobile service setups. The spring-driven retraction mechanism keeps hose under consistent tension, reducing trip hazards and hose wear on busy shop floors.

Key Features

• Super Hub dual axle support system reduces vibration and increases frame stability during operation
• External 90-degree full-flow dual-ported brass swivel with Viton seals routes both connections from the same side of the reel, eliminating the need to dismount for access
• Cartridge-style spring motor is lubricated, enclosed, and fully removable for maintenance without disassembling the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges protect hose and improve operator safety
• Solid one-piece 1/4-inch steel base and support post with no-weld construction for maximum stability
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style spring-driven welding hose reel for use with 1/4-inch ID twin-line welding hose up to 50 feet in length, consistent with standard SHW Series applications.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas supply systems and applicable safety codes. Shut off all gas supply valves and relieve hose pressure completely before mounting or servicing the reel. The multi-position guide arm should be secured to a structurally sound surface rated for the combined weight of the reel and loaded hose. Verify swivel connections are leak-free using appropriate detection methods before returning the system to service.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length: 50 feet
Drive Type: Spring driven
• Material: Steel
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 64 pounds
• UPC: 674255719736

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHWT-N-150
