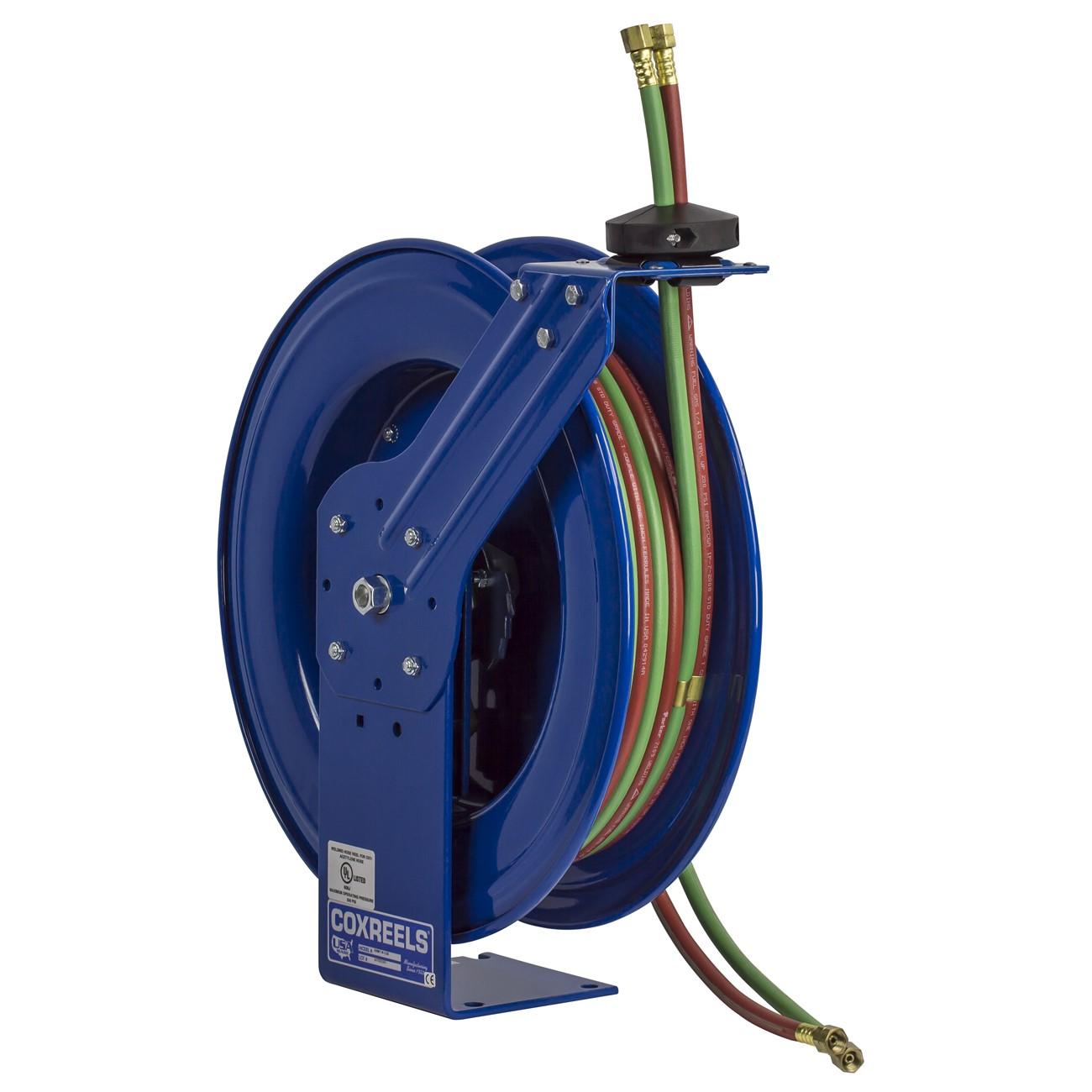

Coxreels SHWT-N-1100 Welding Hose Reel 1/4 in 100 Ft

Product Description

The COXREELS SHWT-N-1100 is a spring-driven welding hose reel from the SHW Series, built to manage bulky twin-line welding hose in demanding shop and field environments. It features a 1/4 inch inner diameter hose path and accommodates up to 100 feet of welding hose. The larger SHW Series chassis and frame provide capacity for longer hose runs, and the original Super Hub dual axle support system reduces vibration while increasing structural integrity during operation. Welding supply technicians and industrial maintenance professionals install this reel where reliable hose management and continuous-duty performance are required.

The SHWT-N-1100 is suited for welding gas supply applications in fabrication shops, manufacturing facilities, and industrial service environments. The spring-driven retraction mechanism keeps hose under controlled tension and off the floor during use. The multi-position guide arm allows mounting to walls, floors, ceilings, and vehicles, making this reel adaptable across a wide range of fixed and mobile welding setups. Where twin-line welding hose must be routed cleanly and retracted consistently, this reel provides a stable, serviceable solution.

Key Features

• External 90-degree full-flow dual-ported brass swivel with Viton seals — both connections accessible from the same side, no need to dismount the reel
• Cartridge-style spring motor is lubricated, enclosed, and fully removable for maintenance without disassembling the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece steel base and support post with no-weld construction and Super Hub dual axle support for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with 1/4 inch inner diameter twin-line welding hose up to 100 feet in length as part of the COXREELS SHW Series spring-driven welding hose reel platform.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas supply systems and applicable safety codes. Shut off all gas supply and relieve hose pressure before mounting or servicing the reel. Ensure the mounting surface is rated for the reel weight and the guide arm orientation is set before securing the unit. Follow IFGC and relevant OSHA guidelines for welding gas hose routing and reel placement.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Length Capacity: 100 feet
• Drive Type: Spring driven
• Swivel Type: External 90-degree dual-ported brass with Viton seals
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Material: Steel
• Finish: CPC powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 84 pounds
• UPC: 674255725942

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHWT-N-1100
