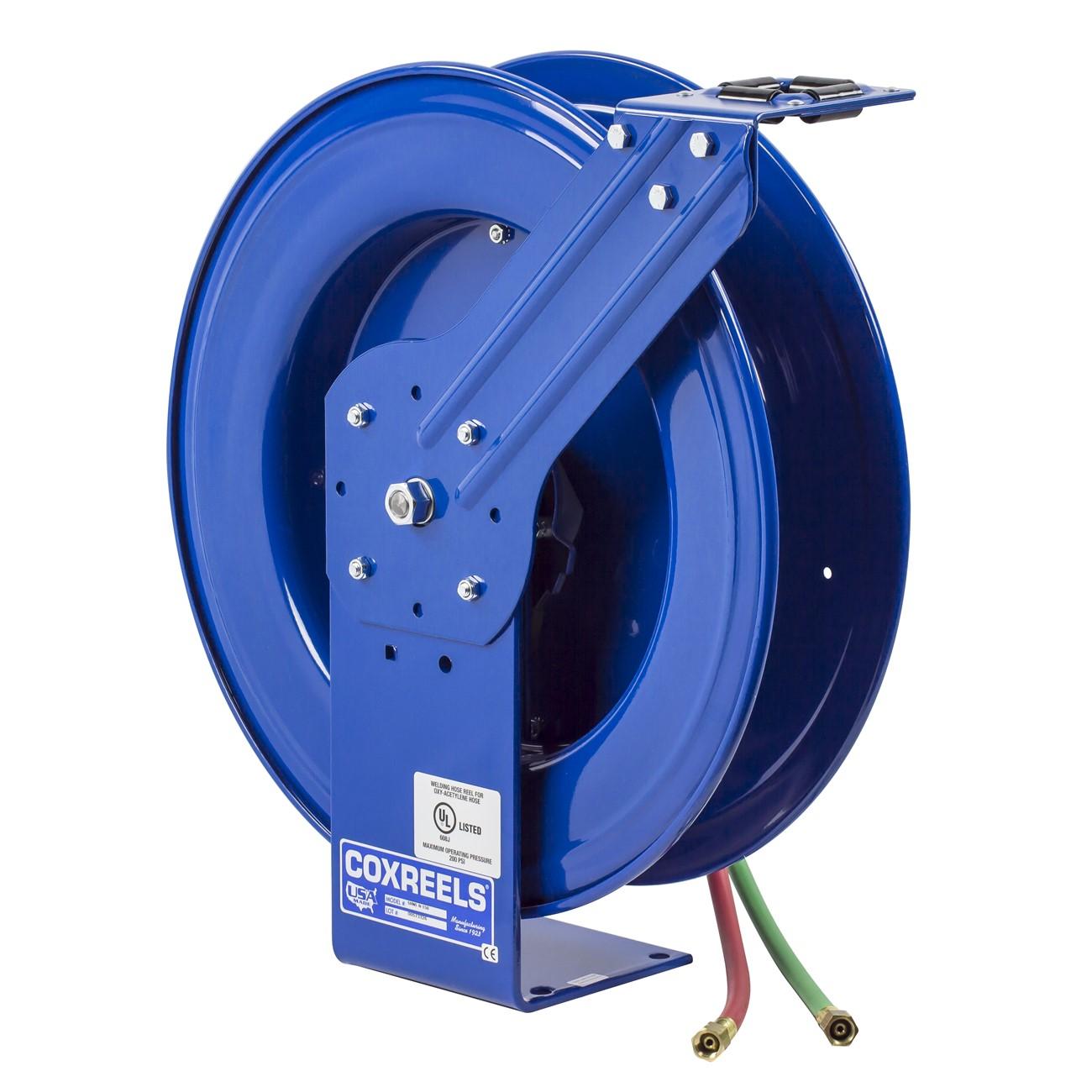

Coxreels SHWL-N-175 Welding Hose Reel 1/4 in 75 Ft Spring

Product Description

The COXREELS SHWL-N-175 is a spring-driven welding hose reel built for managing twin-line welding hose in demanding shop and field environments. Part of the SHW Series, it features a larger chassis and frame compared to the compact P-W Series, designed to handle longer hose lengths with greater structural stability. The reel ships at 63 pounds and measures 25 inches long by 13 inches wide by 27 inches tall. Its spring-driven retraction mechanism keeps hose under control and off the floor, reducing trip hazards and extending hose life. Welding technicians and industrial maintenance professionals are the primary installers.

The SHWL-N-175 is suited for welding gas distribution in residential shops, commercial fabrication facilities, and industrial maintenance environments where twin-line welding hose must be routed reliably and retracted safely. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of installation layouts. The steel single-pedestal base provides a no-weld one-piece construction for maximum anchoring stability on fixed and mobile platforms.

Key Features

• External 90-degree full-flow dual-ported brass swivel with Viton seals, both connections accessible from the same side of the reel without dismounting
• Enclosed cartridge-style spring motor is lubricated and fully removable for field maintenance without special tools
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for structural strength and hose protection
• Solid one-piece steel base and support post, no-weld construction, with Coxreels Super Hub dual axle support for reduced vibration and increased rigidity
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust for long-term corrosion protection in harsh environments

Compatibility

Designed for use with 1/4 inch ID twin-line welding hose up to 75 feet in length. Part of the COXREELS SHW Series, which is engineered for applications requiring a larger chassis and extended hose capacity compared to the P-W Series.

Installation Notes

Installation should be performed by a qualified welding equipment technician or industrial maintenance professional familiar with compressed gas systems. Shut off all gas supply valves and relieve line pressure completely before connecting or disconnecting hose fittings at the swivel. Secure the base to a structural mounting surface using fasteners appropriate for the load rating of the installation surface. Verify all swivel connections are leak-free using an approved gas leak detection solution before returning the system to service.

Technical Specifications

• Hose Inside Diameter: 1/4 inch
• Maximum Hose Length: 75 feet
• Drive Type: Spring driven
• Swivel Type: External 90-degree dual-ported brass with Viton seals
• Frame and Base Material: Steel
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Finish: CPC powder coat, chip and rust resistant
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 63 pounds
• UPC: 674255719712

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHWL-N-175
