Coxreels SHWL-N-1100 Welding Hose Reel 1/4 in 100 Ft Steel

Product Description

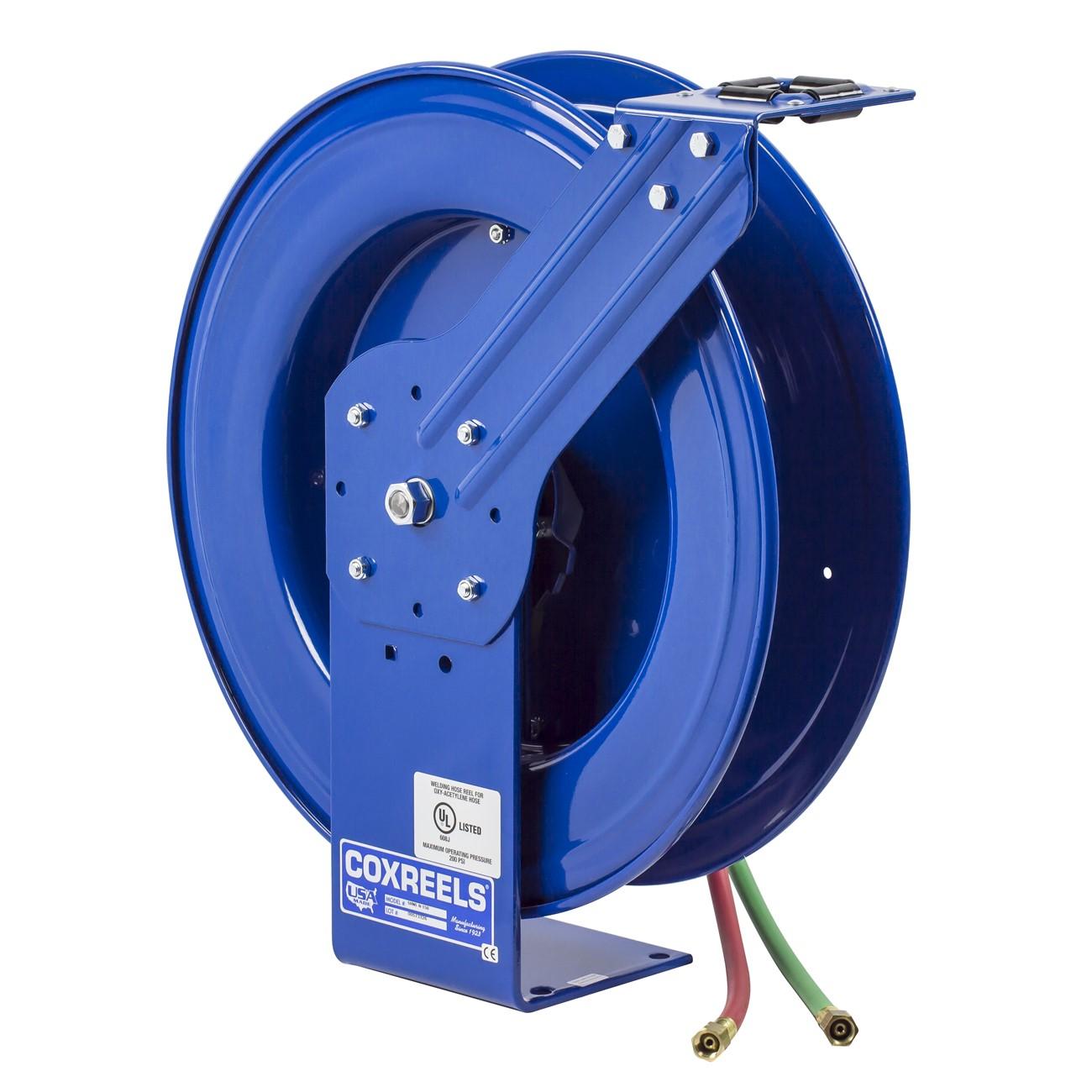

The COXREELS SHWL-N-1100 is a spring-driven welding hose reel built for managing twin-line welding hose in demanding shop and field environments. Part of the SHW Series, it features a larger chassis and frame designed to handle longer hose lengths, paired with the Coxreels Super Hub dual axle support system for increased structural stability and reduced vibration during operation. The reel accepts 1/4-inch inner-diameter hose up to 100 feet and is constructed with heavy-gauge steel throughout. It is installed by welding professionals, fabricators, and industrial maintenance technicians who need reliable, hands-free hose management at a fixed station.

The SHWL-N-1100 is suited for residential welding shops, commercial fabrication facilities, and industrial maintenance bays where twin-line welding hose must be stored and deployed repeatedly. The spring-driven retraction mechanism keeps hose off the floor and under consistent tension. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making this reel adaptable to a wide range of installation layouts. The external brass swivel with Viton seals provides dual-port access from the same side of the reel, eliminating the need to dismount the reel for connection changes.

Key Features

• SHW Series large chassis with Super Hub dual axle support for reduced vibration and greater structural integrity
• External 90-degree full-flow dual-ported brass swivel with Viton seals, both connections accessible from one side
• Lubricated, enclosed cartridge-style spring motor is removable for maintenance without full disassembly
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Single-pedestal solid one-piece steel base and support post, no-weld construction for maximum stability
• CPC powder coat finish resists chips and rust; permanently lubricated precision bearings throughout

Compatibility

Designed as an OEM-style replacement and direct-fit option for twin-line welding hose management applications requiring a 1/4-inch ID, 100-foot capacity spring-driven reel in the SHW Series configuration.

Installation Notes

Installation is typically performed by welding professionals or industrial maintenance technicians. Shut off all gas supply lines and depressurize the hose assembly before mounting or connecting. The multi-position guide arm should be secured to a structurally adequate surface rated for the combined weight of the reel and fully loaded hose. Consult applicable facility safety codes and the manufacturer installation guide before placing the reel in service.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Capacity: 100 feet
• Hose Type: Twin-line welding hose
• Spring Drive: Cartridge-style spring motor
• Swivel Material: Brass with Viton seals
• Frame Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 62 pounds
• UPC: 674255725492

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHWL-N-1100
