Coxreels SHW-N-175 Welding Hose Reel 1/4 in 75 Ft Spring

Product Description

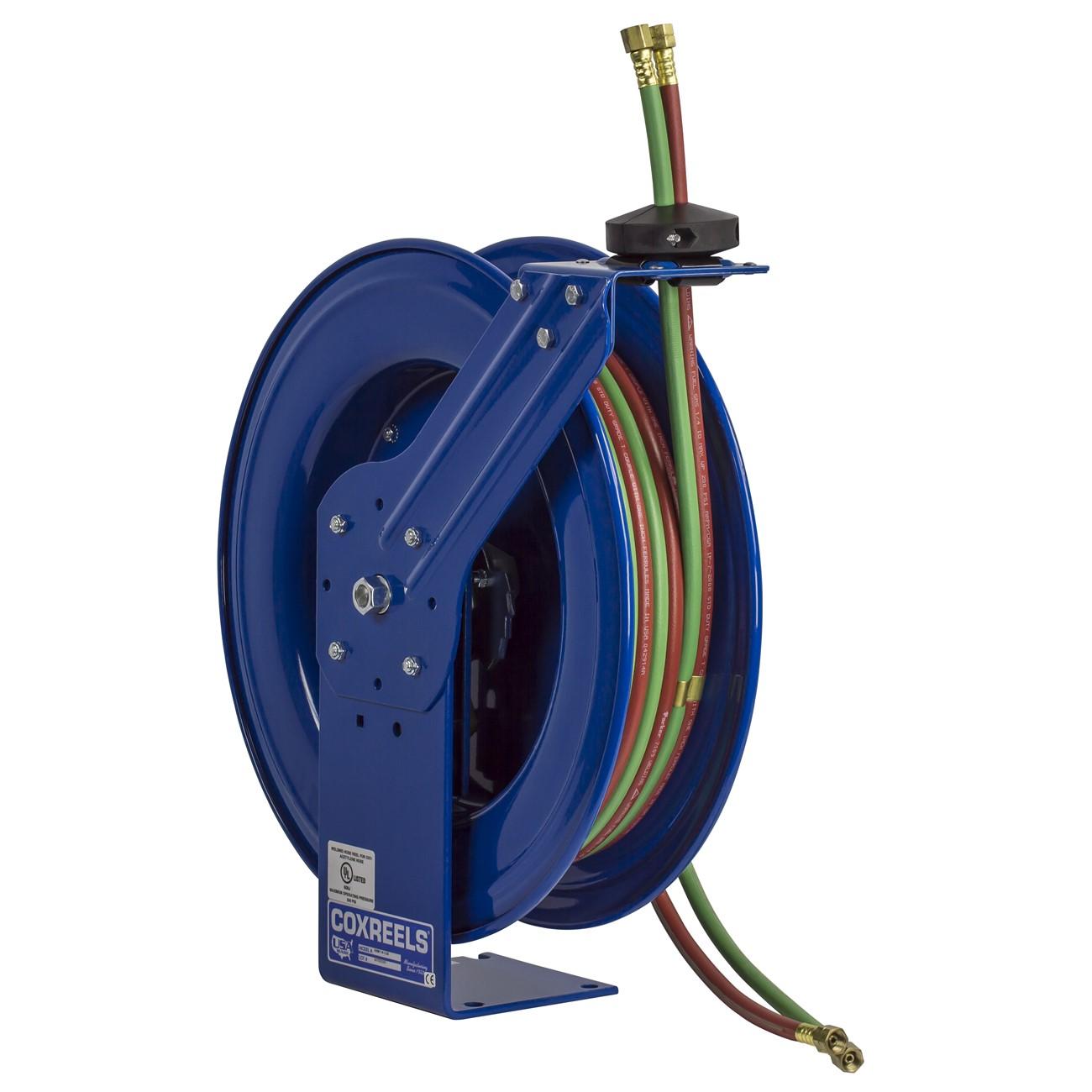

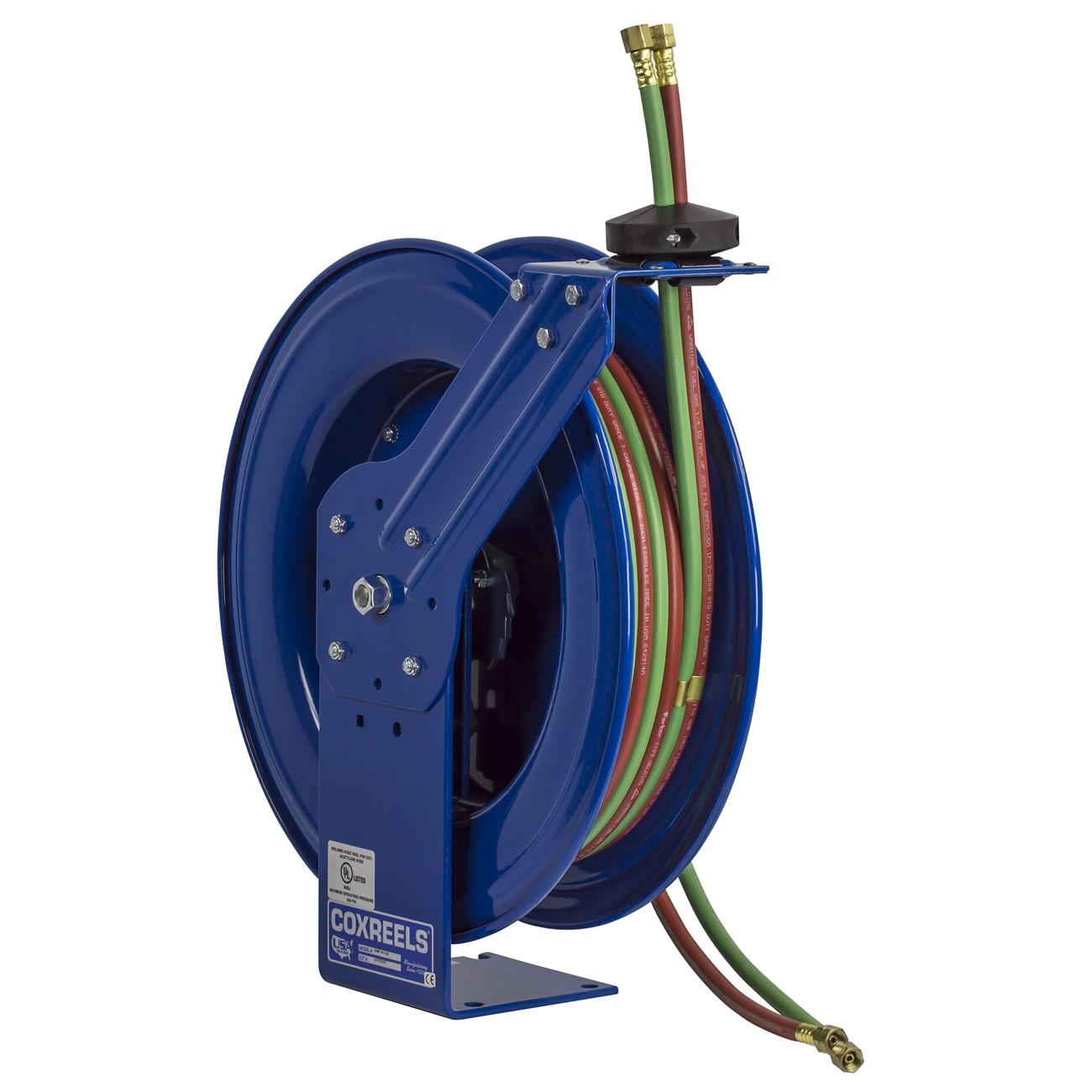

The COXREELS SHW-N-175 is a spring-driven welding hose reel built for managing bulky twin-line oxygen-acetylene hose in demanding shop and field environments. Designed around a large-chassis SHW Series frame, it accommodates longer hose runs with a 1/4 inch inner diameter and up to 75 feet of welding hose capacity. The reel weighs 80 pounds and measures 25 inches long by 13 inches wide by 27 inches tall, giving it a stable footprint on the floor, wall, ceiling, or vehicle mount. Licensed HVAC and welding technicians, pipefitters, and shop maintenance crews are the primary installers and operators of this unit.

The SHW-N-175 is suited for industrial and commercial welding applications where twin-line hose management is critical to workflow and operator safety. The multi-position guide arm makes it adaptable to a wide range of installation orientations, including wall, floor, ceiling, and vehicle mounting. Its spring-driven retraction keeps hose off the floor without requiring motor power, making it practical in locations where electrical access is limited or where a simpler, lower-maintenance drive system is preferred.

Key Features

• External 90-degree full-flow dual-ported brass swivel with Viton seals — both connections accessible from the same side, no dismounting required
• Cartridge-style spring motor is lubricated, enclosed, and removable for field maintenance without special tooling
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Single-pedestal steel base with solid one-piece construction and no welds for maximum structural stability
• Coxreels Super Hub dual axle support system reduces vibration and increases frame integrity during operation
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with oxygen-acetylene twin-line welding hose with a 1/4 inch inner diameter in applications requiring spring-driven retraction and dual-port swivel access.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas systems and applicable safety codes. Shut off all gas supply valves and bleed pressure from the hose before mounting or connecting the reel. Ensure the mounting surface is rated for the combined weight of the reel and full hose load. Verify all swivel and hose connections are leak-free before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Capacity: 75 feet
• Drive Type: Spring driven
• Swivel Type: External 90-degree dual-ported brass with Viton seals
• Base Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 80 pounds
• UPC: 674255719651

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHW-N-175
