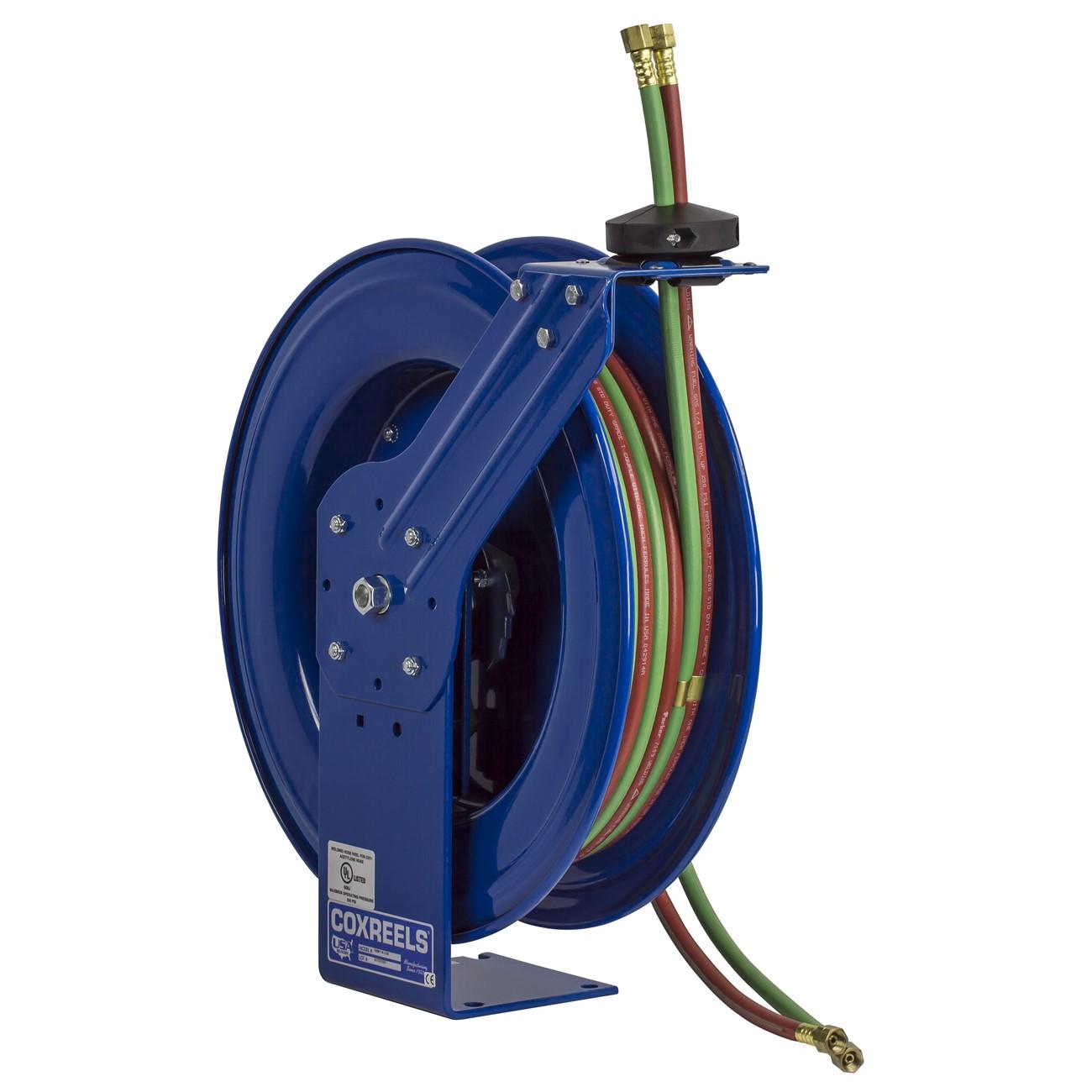

Coxreels SHW-N-160 Welding Hose Reel 1/4 in 60 Ft Spring

Product Description

The COXREELS SHW-N-160 is a spring-driven welding hose reel designed to manage twin-line oxygen-acetylene hose in demanding shop and field environments. Built on the SHW Series larger chassis and frame, it accommodates longer hose runs up to 60 feet with a 1/4-inch inner diameter. The unit weighs 76 pounds and measures 25 inches long, 13 inches wide, and 27 inches tall, giving it a stable, low-profile footprint on any mount. A steel single-pedestal base with no-weld construction provides the structural rigidity welding service environments require. Licensed welding technicians and industrial maintenance professionals are the primary installers.

The SHW-N-160 is suited for stationary installations in fabrication shops, industrial maintenance bays, and fleet service facilities where twin-line welding hose must be stored and deployed repeatedly without kinking or tangling. The spring-retract mechanism keeps hose under controlled tension at all times, reducing trip hazards and hose wear. The larger SHW chassis accommodates heavier, bulkier hose assemblies that the more compact P-W Series cannot handle as effectively. Its multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations.

Key Features

• External 90-degree full-flow dual-ported brass swivel with Viton seals routes both connections from the same side of the reel, eliminating the need to dismount the reel for access
• Coxreels Super Hub dual-axle support system reduces vibration and increases structural integrity during retract cycles
• CNC robotically spun and ribbed steel discs with rolled edges protect hose and improve operator safety
• Enclosed, lubricated cartridge-style spring motor is removable for maintenance without disassembling the reel
• Solid one-piece steel base and support post with no-weld construction for maximum stability
• CPC powder-coat finish resists chipping and rust; adjustable solid rubber hose stop included

Compatibility

Designed as an OEM-style replacement or new-installation reel for twin-line oxygen-acetylene welding hose with 1/4-inch inner diameter, up to 60 feet in length, in industrial and shop settings.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas plumbing and applicable safety codes. Shut off and bleed all gas supply lines before connecting or disconnecting hose fittings at the swivel. Verify that mounting hardware is appropriate for the surface type and rated to support the 76-pound unit plus hose load. Inspect swivel seals and hose connections for leaks with an approved leak-detection solution before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Length Capacity: 60 feet
• Drive Type: Spring driven
• Material: Steel
• Swivel Material: Brass with Viton seals
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 76 pounds
• UPC: 674255719644

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHW-N-160
