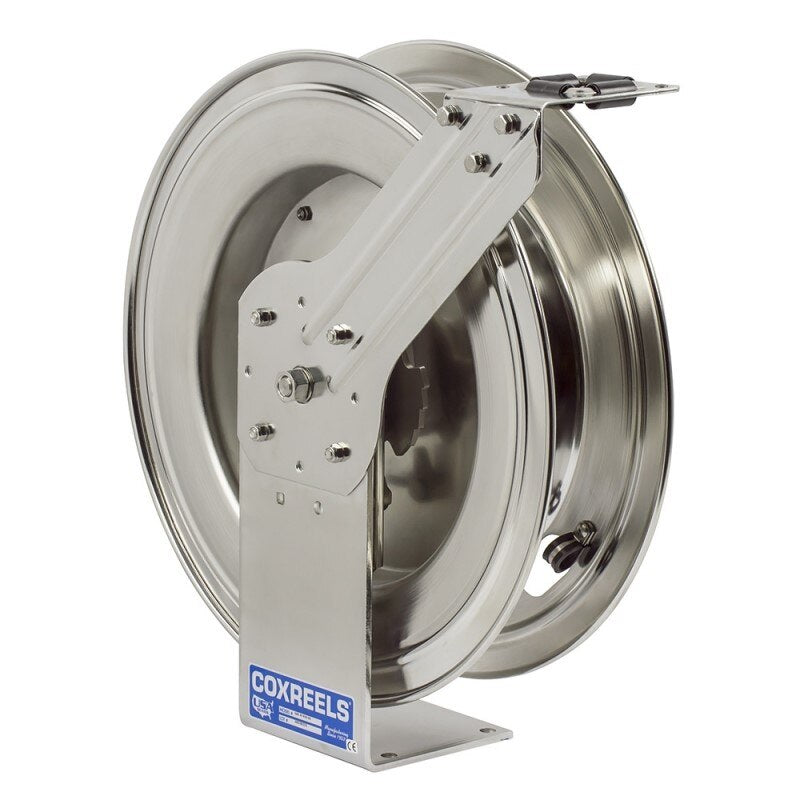

Coxreels SHL-N-525-SS Ss Spring Hose Reel 3/4 in 25 Ft

Product Description

The COXREELS SHL-N-525-SS is an electro-polished stainless steel spring-driven hose reel designed for demanding environments where corrosion, contamination, and rust are constant concerns. The reel features a fully stainless steel fluid path, a cartridge-style spring motor, and CNC robotically spun disc sides with rolled edges. It accepts 3/4 inch ID hose up to 25 feet and is built for repeated daily use in food processing, chemical handling, marine facilities, and any setting that requires non-corrosive, cleanable equipment. Licensed contractors and facility maintenance professionals are the typical installers.

This hose reel is suited for stationary and mobile installations in both commercial and industrial environments. Typical applications include food and beverage processing lines, marina fuel and water service, chemical distribution stations, and wash-down service points where stainless steel is specified by code or facility standards. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of service layouts. The single-pedestal stainless steel base provides stability without excessive weight.

Key Features

• Electro-polished stainless steel construction throughout for corrosion resistance and cleanability
• Fully stainless steel fluid path with machined 90-degree full-flow NPT swivel inlet
• Enclosed cartridge-style spring motor is removable for maintenance without disassembling the reel
• Heavy-duty CNC robotically spun and ribbed disc sides with rolled edges for strength and hose protection
• Solid one-piece stainless steel base and support post, no-weld single pedestal design
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting

Compatibility

Designed as an OEM-style replacement or direct-install stainless steel spring-driven hose reel for 3/4 inch ID hose service lines in corrosive or sanitary environments.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling systems and applicable plumbing or mechanical codes. Shut off and depressurize the supply line before connecting or disconnecting the swivel inlet. Mounting hardware must be rated for the combined weight of the reel and a fully extended, fluid-filled hose. Verify inlet thread type and size match the supply fitting before final connection.

Technical Specifications

• Hose ID: 3/4 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Material: Electro-polished stainless steel
• Mounting Positions: Wall, floor, ceiling, vehicle
• Length: 20.25 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 45 pounds
• UPC: 674255719590

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHL-N-525-SS
