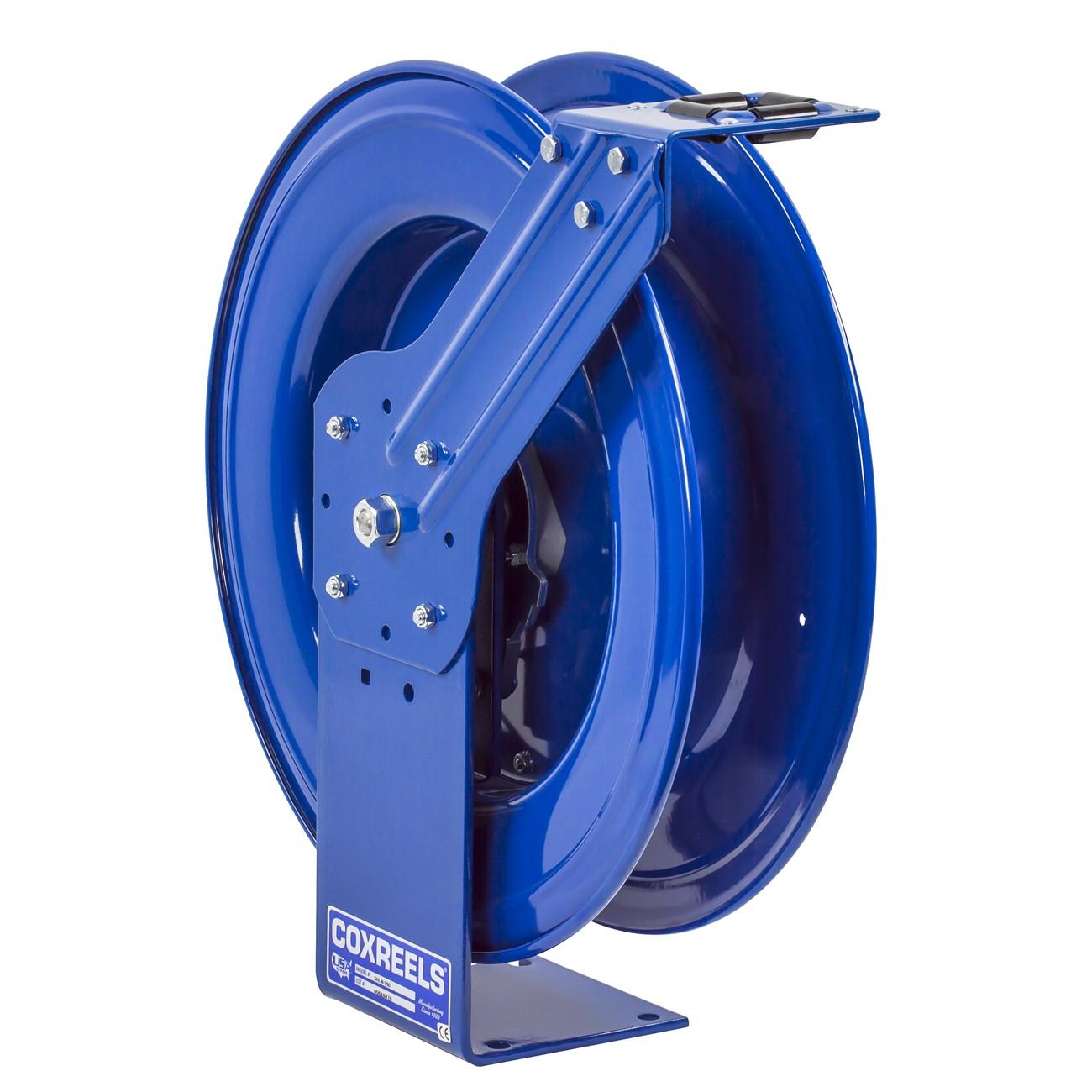

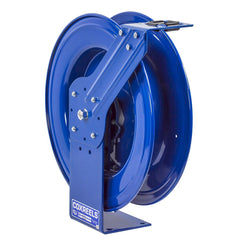

Coxreels SHL-N-525 Spring Driven Hose Reel 3/4 in Id

Product Description

The COXREELS SHL-N-525 is a spring-driven hose reel from the SH Series Super Hub line, built for demanding service applications where reliable hose retraction and structural durability are required. The reel accepts hose with a 3/4 inch ID and 1-1/16 inch OD, with a 25-foot hose length capacity. The larger SH Series chassis accommodates longer and larger-diameter hose than standard compact reels. Coxreels original dual axle Super Hub support system reduces vibration during operation and increases structural integrity. Designed for installation by service technicians in industrial, fleet maintenance, and workshop environments.

The SHL-N-525 is suited for fluid transfer applications including oil, coolant, and similar service fluids in professional shop and fleet service settings. The multi-position guide arm adjusts to support wall, floor, ceiling, and vehicle-mount installations, making it adaptable to a wide range of service bay layouts. The spring-driven retraction mechanism keeps hose off the floor and coiled under consistent tension without requiring manual winding.

Key Features

• Spring-driven retraction for automatic hose retrieval without manual winding
• Dual axle Super Hub support system reduces vibration and increases reel stability
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Enclosed cartridge-style motor is lubricated and removable for field maintenance
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base with single pedestal design and no-weld construction for maximum stability
• CPC powder coat finish resists chips and rust for long service life

Compatibility

Designed as an OEM-style spring-driven reel for professional workshop, fleet service, and industrial fluid delivery applications accepting 3/4 inch ID hose up to 25 feet in length.

Installation Notes

Installation is typically performed by a qualified service technician or maintenance professional. Shut off all fluid supply lines and relieve system pressure before mounting or servicing the reel. The guide arm should be positioned to ensure hose feeds and retracts without kinking or binding. Mounting hardware selection should be appropriate for the surface type and load rating required for a 57-pound unit under operational tension.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1-1/16 inch
• Hose Length Capacity: 25 feet
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 57 pounds
• Base Material: Steel
• Swivel Material: Solid brass
• Drive Type: Spring driven
• Finish: CPC powder coat
• UPC: 674255719569

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHL-N-525
