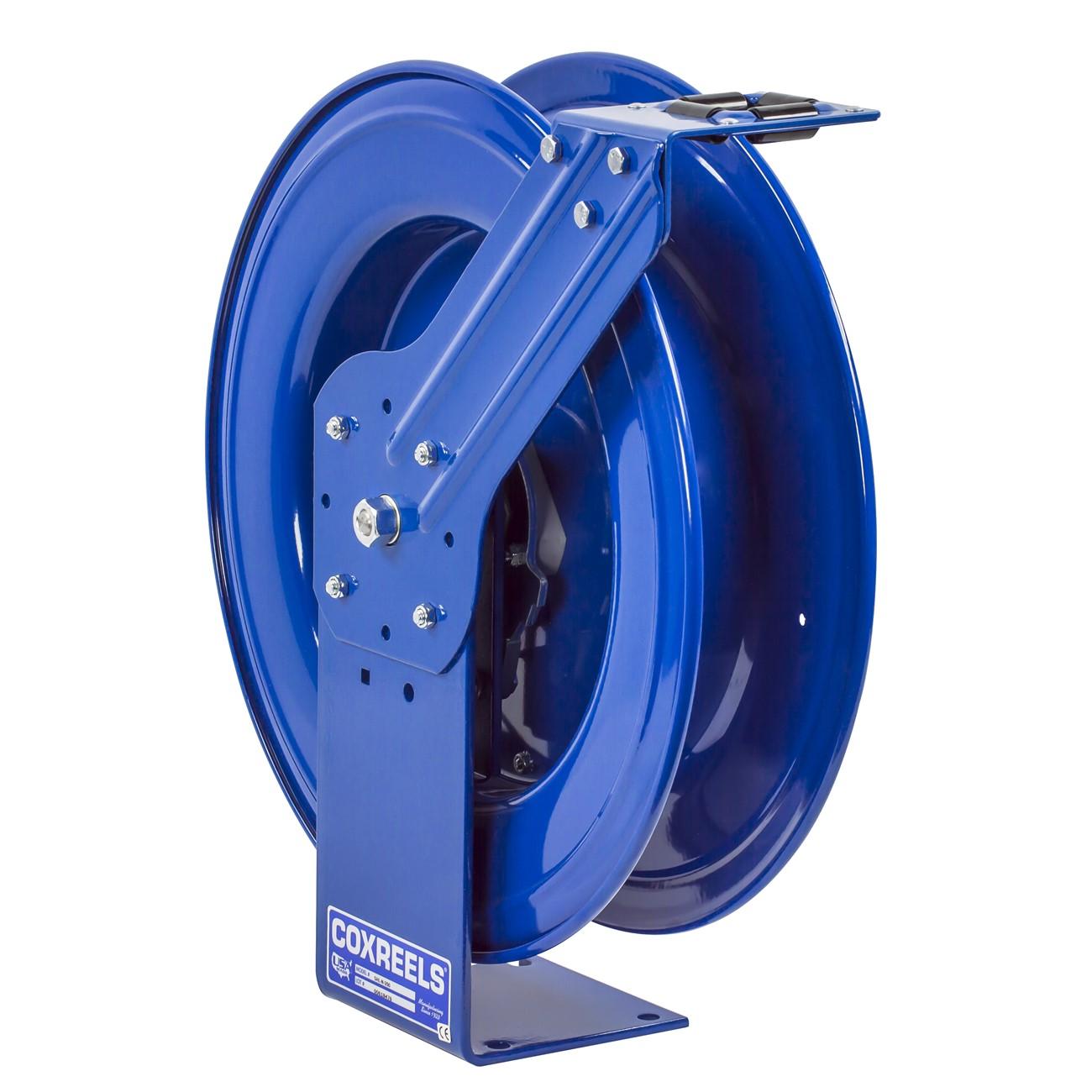

Coxreels SHL-N-525-DF-BBX Def Hose Reel 3/4 Inch Id

Product Description

The COXREELS SHL-N-525-DF-BBX is a heavy-duty single pedestal hose reel from the SH-DEF Series, engineered specifically for Diesel Exhaust Fluid (DEF) dispensing in demanding shop and fleet service environments. The reel features a stainless steel 90-degree full-flow NPT swivel with chemical-resistant Viton seals, keeping DEF contact surfaces non-corrosive and leak-resistant. A cartridge-style motor is fully enclosed and lubricated, making it removable for field maintenance without special tooling. CNC robotically spun, ribbed discs with rolled edges protect both the hose and the technician. The unit weighs 45 pounds and is designed for licensed service technicians and fleet maintenance professionals.

This reel is suited for stationary service bays or mobile vehicle-mounted DEF dispensing applications. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, giving installers flexibility in a wide range of shop layouts. The solid one-piece steel base and support post require no welding and provide a stable platform. The exclusive dual axle Super Hub support system reduces vibration during reel operation, making this unit equally capable in rugged mobile setups and fixed-facility installations. The 3/4 inch ID hose path accommodates standard DEF dispenser hose and hardware.

Key Features

• Stainless steel 90-degree full-flow NPT swivel with Viton seals for DEF chemical compatibility
• Enclosed, lubricated cartridge-style motor is removable for easy field maintenance
• CNC robotically spun ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel single pedestal base with no-weld construction for maximum stability
• Dual axle Super Hub support system reduces vibration in both stationary and mobile use
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips and rust for long service life

Compatibility

Designed for use with standard DEF dispenser hose with 3/4 inch ID and 1-1/8 inch OD in heavy-duty single pedestal SH Series configurations for stationary or mobile DEF dispensing systems.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid dispensing systems and applicable shop safety codes. Power down or depressurize the fluid system completely before connecting or servicing the reel. Secure the mounting base to a structurally sound surface rated for the combined weight of the reel and loaded hose. Follow all applicable local regulations governing DEF handling and fluid dispensing equipment.

Technical Specifications

• Hose ID: 3/4 inches
• Hose OD: 1-1/8 inches
• Swivel Material: Stainless Steel
• Seal Material: Viton
• Pedestal Configuration: Single Pedestal
• Motor Type: Cartridge, enclosed and lubricated
• Finish: CPC Powder Coat
• Weight: 45 pounds
• UPC: 674255748057

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHL-N-525-DF-BBX
