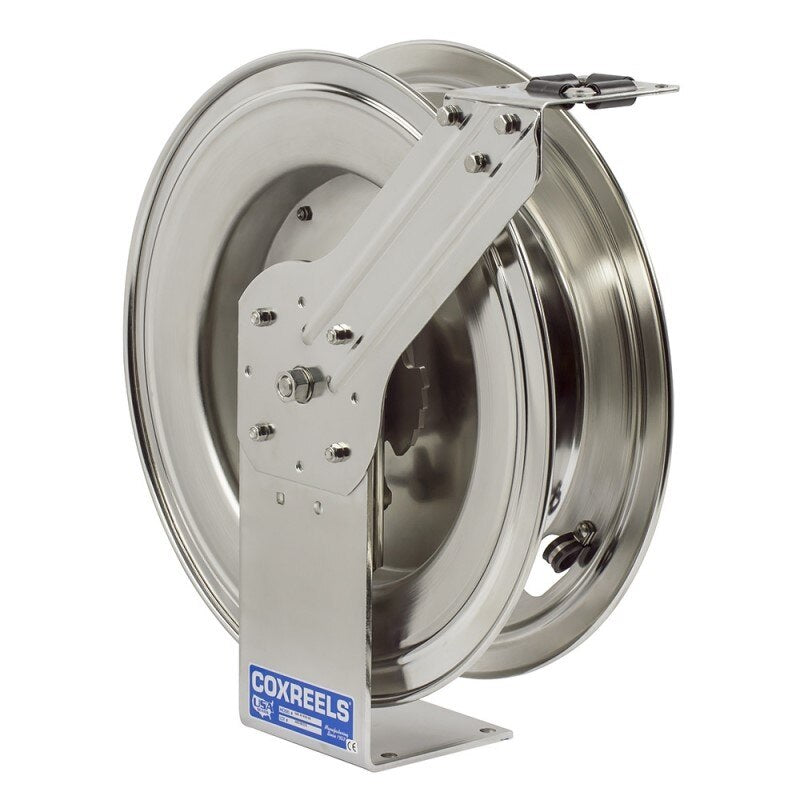

Coxreels SHL-N-450-SS Stainless Steel Hose Reel 1/2 in 50 Ft

Product Description

The COXREELS SHL-N-450-SS is a spring-driven, electro-polished stainless steel hose reel designed for demanding environments where corrosion, rust, and contamination are ongoing concerns. Built on the SH-SS Series platform, this reel accepts 1/2 inch ID hose up to 50 feet in length and delivers a fully stainless fluid path from inlet to outlet. The 90-degree full-flow NPT swivel inlet is machined from stainless steel, and the enclosed cartridge-style motor is electro-polished for both corrosion resistance and ease of service. This unit weighs 46 pounds and is suited for permanent installation by industrial maintenance technicians, marine service crews, or facility professionals working in corrosive or sanitary environments.

This hose reel is built for applications where standard steel or painted reels fail prematurely. Typical install locations include food and beverage processing facilities, chemical handling operations, marinas, car washes, and coastal or offshore environments where salt air and moisture accelerate corrosion. The spring-driven retraction mechanism keeps hose managed and off the floor, reducing trip hazards and hose wear. The multi-position guide arm mounts to wall, floor, ceiling, or vehicle surfaces, giving installers flexibility across a wide range of facility layouts and service vehicle configurations.

Key Features

• Electro-polished stainless steel construction throughout for non-corrosive performance in food, chemical, and marine environments
• Full-flow stainless steel 90-degree NPT swivel inlet with external fluid path machined from solid stainless stock
• Enclosed cartridge-style spring motor is electro-polished, self-lubricated, and removable for field maintenance without full disassembly
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and structural strength
• Single-pedestal stainless steel base with no-weld construction and dual axle support for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting

Compatibility

Designed for use with 1/2 inch ID hose up to 50 feet in length. Fits standard NPT hose and fitting connections. Verify inlet and outlet thread sizing against existing hose assembly before installation.

Installation Notes

Installation is typically performed by industrial maintenance technicians or plumbing professionals. Shut off fluid supply completely and depressurize the hose and reel before mounting or servicing. Secure the base to a structurally sound surface using fasteners rated for the mounting substrate and load. Consult applicable facility codes and the manufacturer installation guide for torque and anchoring requirements specific to the mounting surface type.

Technical Specifications

• Hose ID: 1/2 inch
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Material: Electro-polished stainless steel
• Swivel Inlet: 90-degree full-flow NPT stainless steel
• Length: 20.25 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 46 pounds
• UPC: 674255719552

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHL-N-450-SS
