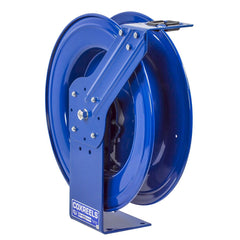

Coxreels SHL-N-450-BBX Def Hose Reel 1/2 in 50 Ft

Product Description

The COXREELS SHL-N-450-BBX is a heavy-duty DEF Series spring-rewind hose reel engineered for Diesel Exhaust Fluid dispensing in demanding service environments. Built on a single-pedestal SH Series frame, this reel features a stainless steel 90-degree full-flow NPT swivel with chemical-resistant Viton seals to maintain a secure, corrosion-resistant fluid path. The hose capacity is 1/2 inch ID by 50 feet. The cartridge-style spring motor is lubricated, enclosed, and fully removable for field maintenance without specialized tooling. This reel is used by fleet service technicians, diesel equipment shops, and commercial fueling operations that require reliable DEF transfer at a fixed or mobile station.

The SHL-N-450-BBX fits stationary shop installations as well as mobile service truck and equipment-bay applications. The multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting, giving installers flexibility across a wide range of bay configurations. The single-pedestal base is constructed from one solid piece of steel with no welds at the support post, reducing stress points under repeated use. The exclusive dual-axle Super Hub support system reduces vibration and improves reel stability during hose retraction, which is particularly important in mobile or high-cycle environments.

Key Features

• Stainless steel 90-degree full-flow NPT swivel rated for DEF service with Viton seals for chemical resistance
• Enclosed, lubricated cartridge spring motor is removable for safe, convenient maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel single-pedestal base with no-weld construction for maximum structural stability
• Dual-axle Super Hub support system reduces vibration for stationary and mobile use
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish provides chip resistance and rust inhibition for long service life

Compatibility

Designed as an OEM-style DEF dispensing hose reel for stationary shop and mobile service applications requiring a 1/2 inch ID hose path and standard NPT swivel connections.

Installation Notes

Installation of this reel is typically performed by fluid-handling equipment technicians or qualified shop maintenance personnel. Shut down all fluid supply pressure to the line before mounting or connecting the reel. Mounting hardware must be appropriate for the selected surface type — wall, floor, ceiling, or vehicle bed — and fastener selection should account for load and vibration in mobile applications. Follow all applicable federal and local regulations for DEF handling and dispenser installation.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Hose Capacity: 50 feet
• Swivel Type: Stainless steel 90-degree full-flow NPT
• Seal Material: Viton
• Frame Configuration: Single pedestal
• Finish: CPC powder coat
• Weight: 46 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHL-N-450-BBX
