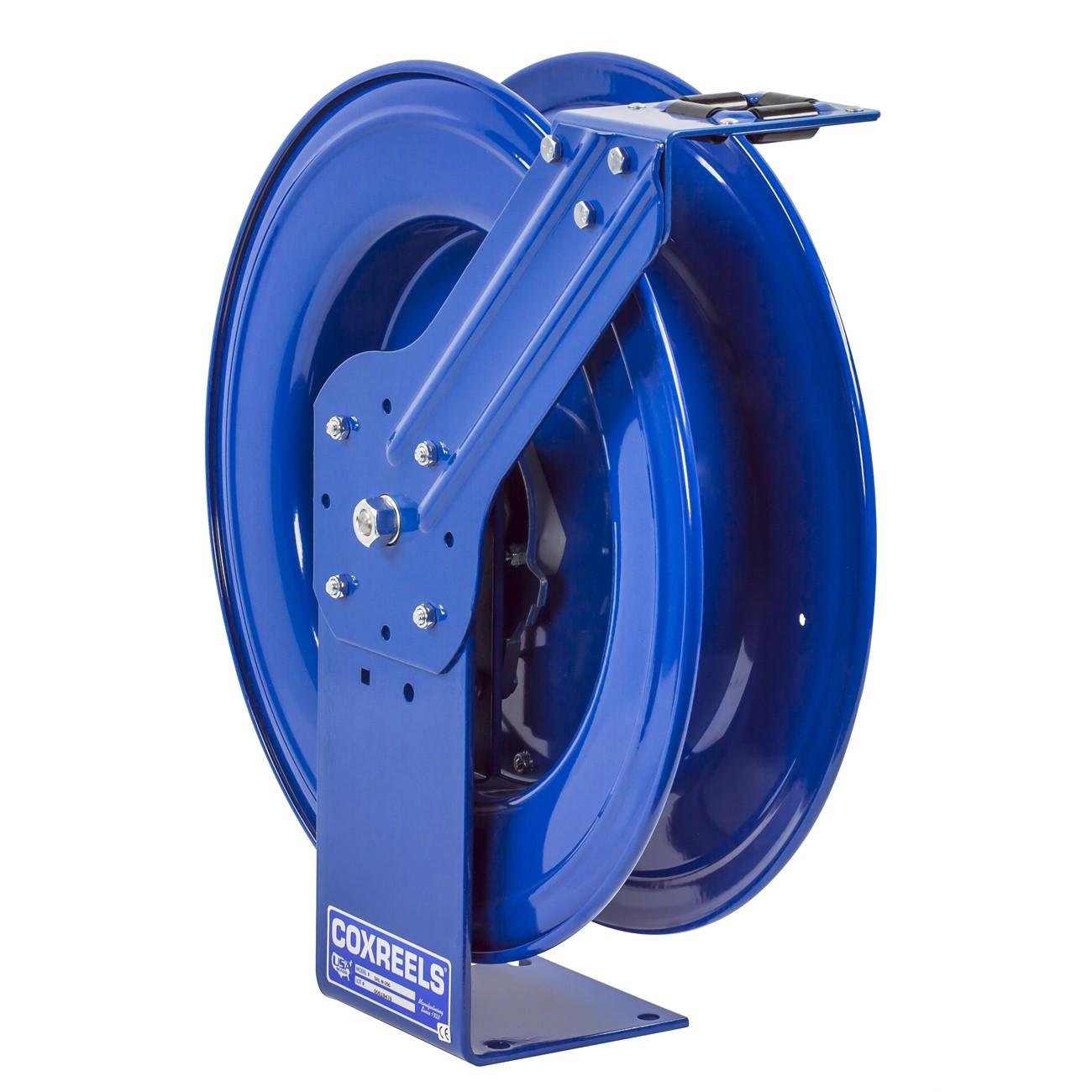

Coxreels SHL-N-440 Spring Driven Hose Reel 40 Ft Steel

Product Description

The COXREELS SHL-N-440 is a spring-driven hose reel from the SH Series Super Hub line, built for demanding shop, fleet, and industrial service environments. Designed around a dual-axle support system, this reel accepts 1/2 inch ID hose up to 40 feet in length and is constructed with a heavy-duty steel base and frame sized to handle larger hose diameters and extended lengths. A CPC powder coat finish resists chipping and rust for long service life. Licensed HVAC technicians, mechanics, plumbers, and fleet service pros install this reel in fixed or vehicle-mounted applications where consistent hose retraction and structural stability are required.

The SHL-N-440 suits residential shop bays, commercial service vehicles, and industrial facilities where hose management is a daily workflow need. The multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting, giving installers flexibility in placement. The spring-driven retraction mechanism keeps hose off the floor and ready for the next use without manual coiling. This reel is appropriate for air, water, and compatible fluid service lines within its rated hose specifications.

Key Features

• Super Hub dual-axle support system reduces vibration and increases structural stability during operation
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe and convenient servicing
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base and support post with no-weld construction for maximum stability
• Multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chipping and rust for extended service life

Compatibility

Designed as an OEM-style replacement and standard fitment for 1/2 inch ID hose assemblies up to 40 feet in length in industrial, commercial, and fleet service applications.

Installation Notes

Installation is typically performed by qualified mechanics, fleet technicians, or industrial maintenance personnel. Shut off and depressurize the supply line completely before connecting or servicing the reel or swivel. Mounting hardware must be rated for the combined weight of the reel and fully loaded hose; verify fastener pull-out strength for the mounting surface type. Refer to local and facility safety codes for hose reel placement and clearance requirements.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Maximum Hose Length: 40 feet
• Reel Length: 20.5 inches
• Reel Width: 10.5 inches
• Reel Height: 22 inches
• Weight: 45 pounds
• Material: Steel
• Drive Type: Spring driven
• Swivel Material: Solid brass
• Finish: CPC powder coat
• UPC: 674255719507

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHL-N-440
