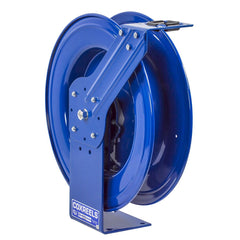

Coxreels SHL-N-435 Spring Driven Hose Reel 35 Ft Steel

Product Description

The COXREELS SHL-N-435 is a spring-driven hose reel from the SH Series Super Hub line, built for demanding industrial and trade applications. It features a 1/2 inch ID inlet, accommodates hose up to 3/4 inch OD, and handles a 35 ft hose length. The heavy-duty steel construction and dual axle Super Hub support system reduce vibration and increase structural integrity during operation. A machined brass 90-degree full-flow NPT swivel allows fast hose installation and seal maintenance without removing the reel from its mount. Licensed plumbers, industrial maintenance technicians, and fleet service professionals are the typical installers of this unit.

The SHL-N-435 is suited for wall, floor, ceiling, and vehicle mounting positions thanks to its multi-position guide arm. Its single-pedestal steel base with solid one-piece construction and no-weld support post provides maximum stability on fixed installations. The larger SH Series chassis is designed to accommodate longer hose lengths and larger hose diameters compared to standard compact reels, making it a practical choice for service bays, workshops, and mobile service vehicles where a longer reach is required.

Key Features

• Spring-driven retraction with lubricated, enclosed cartridge-style motor that is removable for maintenance
• Machined solid brass 90-degree full-flow NPT swivel allows seal service and hose swaps without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Dual axle Super Hub support system reduces vibration and strengthens structural integrity
• Single-pedestal steel base, no-weld construction for maximum stability
• CPC powder coat finish resists chips and rust; permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct installation unit within the COXREELS SH Series spring-driven hose reel family, compatible with standard NPT hose fittings at 1/2 inch ID and 3/4 inch OD configurations up to 35 ft in length.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air or fluid distribution systems. Depressurize and bleed all lines before connecting or disconnecting hose fittings. Secure the mounting base to a structurally adequate surface using hardware appropriate for the mounting orientation. Verify that inlet supply pressure and hose ratings are within the reel specifications before placing the unit in service.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Length: 35 ft
• Material: Steel
• Drive Type: Spring driven
• Swivel: Machined brass 90-degree full-flow NPT
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 43 pounds
• UPC: 674255719491

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHL-N-435
