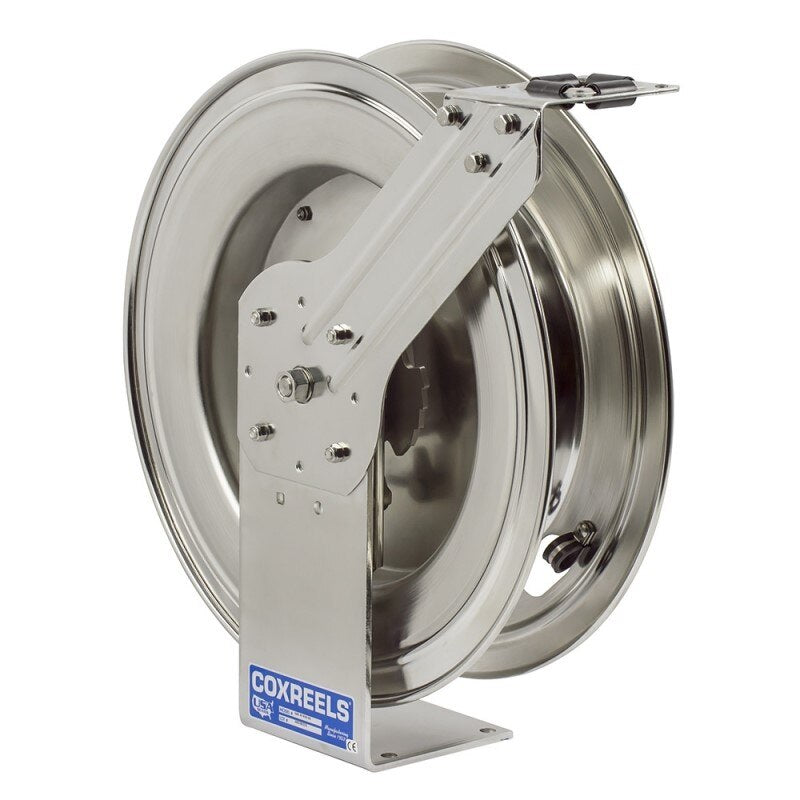

Coxreels SHL-N-350-SS Stainless Steel Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS SHL-N-350-SS is a spring-driven, stainless steel hose reel designed for demanding environments where corrosion, contamination, and chemical exposure are ongoing concerns. The reel features an electro-polished stainless steel construction throughout, including a full stainless steel fluid path, making it suitable for food processing, chemical handling, marina service, and similar applications. A cartridge-style spring motor provides reliable automatic retraction, and the machined 90-degree full-flow NPT swivel inlet maintains a clean, non-corrosive external fluid path. Licensed tradespeople working in code-regulated or sanitation-critical environments will find this reel well suited for permanent installation.

The SHL-N-350-SS is built for use with 3/8-inch ID hose in environments where standard steel reels would rust or corrode. Typical applications include food and beverage facilities, chemical processing plants, commercial marinas, car wash operations, and industrial wash-down stations. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across a wide range of service scenarios. This reel is engineered for professional installation in facilities that require non-contaminating, corrosion-resistant fluid delivery equipment.

Key Features

• Electro-polished stainless steel construction with full stainless steel fluid path for corrosion-free service
• Cartridge-style spring motor is enclosed, lubricated, and removable for straightforward maintenance
• Machined stainless steel 90-degree full-flow NPT swivel inlet for non-corrosive external fluid connection
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece stainless steel base and support post with no-weld single pedestal design for maximum stability
• Multi-position stainless steel guide arm adjusts for wall, floor, ceiling, or vehicle mounting

Compatibility

Designed as an OEM-style replacement or direct-install option for stainless steel spring-driven hose reel applications requiring 3/8-inch ID hose capacity and corrosion-resistant construction.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with fluid handling systems and applicable facility codes. Before mounting, shut off the fluid supply line and depressurize the hose and reel assembly. Secure the base to a structurally adequate mounting surface using fasteners appropriate for the mounting orientation and load. Verify all NPT swivel inlet connections are leak-free before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose Length: 50 feet
• Drive Type: Spring driven
• Material: Electro-polished stainless steel
• Inlet Connection: 90-degree full-flow NPT swivel
• Mounting Positions: Wall, floor, ceiling, vehicle
• Length: 20.25 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 44 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHL-N-350-SS
