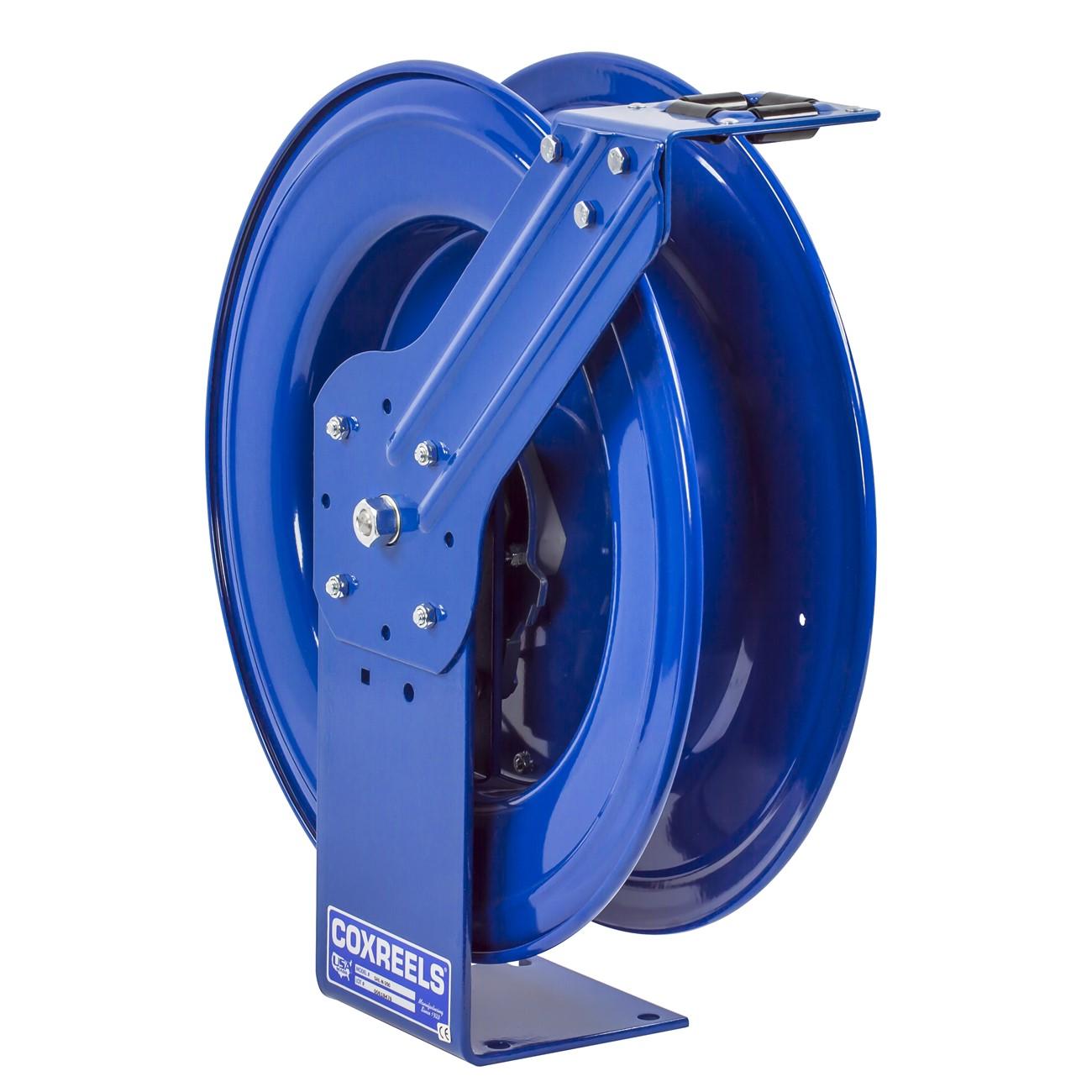

Coxreels SHL-N-350 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS SHL-N-350 is a spring-driven hose reel from the SH Series, built for demanding trade applications where durability and reliable retraction are non-negotiable. Designed around a 3/8 inch ID hose with a 5/8 inch OD, the reel accommodates up to 50 feet of hose length. The unit is constructed from steel and weighs 44 pounds. At the core of the design is Coxreels Super Hub dual axle support system, which increases operational stability, reduces vibration, and reinforces the structural integrity of the reel. HVAC technicians, plumbers, and industrial service professionals are the primary installers of this unit.

The SHL-N-350 is suited for residential and light commercial service environments where a spring-retract hose reel is required for consistent, controlled hose management. The larger SH Series chassis accommodates longer hose lengths and larger hose diameters compared to standard compact reels, making it a practical choice for service vehicles, shop installations, and fixed wall or ceiling mounts. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across a range of job site setups.

Key Features

• Spring-driven retraction with a cartridge-style motor that is enclosed, lubricated, and removable for maintenance without major disassembly
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Single pedestal base with solid one-piece steel construction and no-weld support post for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish resists chips and rust for long service life in harsh environments

Compatibility

Designed as an OEM-style spring-driven hose reel replacement or new installation for 3/8 inch ID hose assemblies up to 50 feet in length in service, industrial, and vehicle-mount applications.

Installation Notes

Installation is typically performed by licensed plumbers, HVAC technicians, or qualified maintenance professionals. Depressurize and drain the hose and supply line completely before mounting or servicing the reel. The multi-position guide arm should be secured to a structurally sound surface rated for the combined weight of the reel and loaded hose. Consult applicable local plumbing and mechanical codes before completing the installation.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Maximum Hose Length: 50 feet
• Drive Type: Spring driven
• Material: Steel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 44 pounds
• UPC: 674255719446

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHL-N-350
