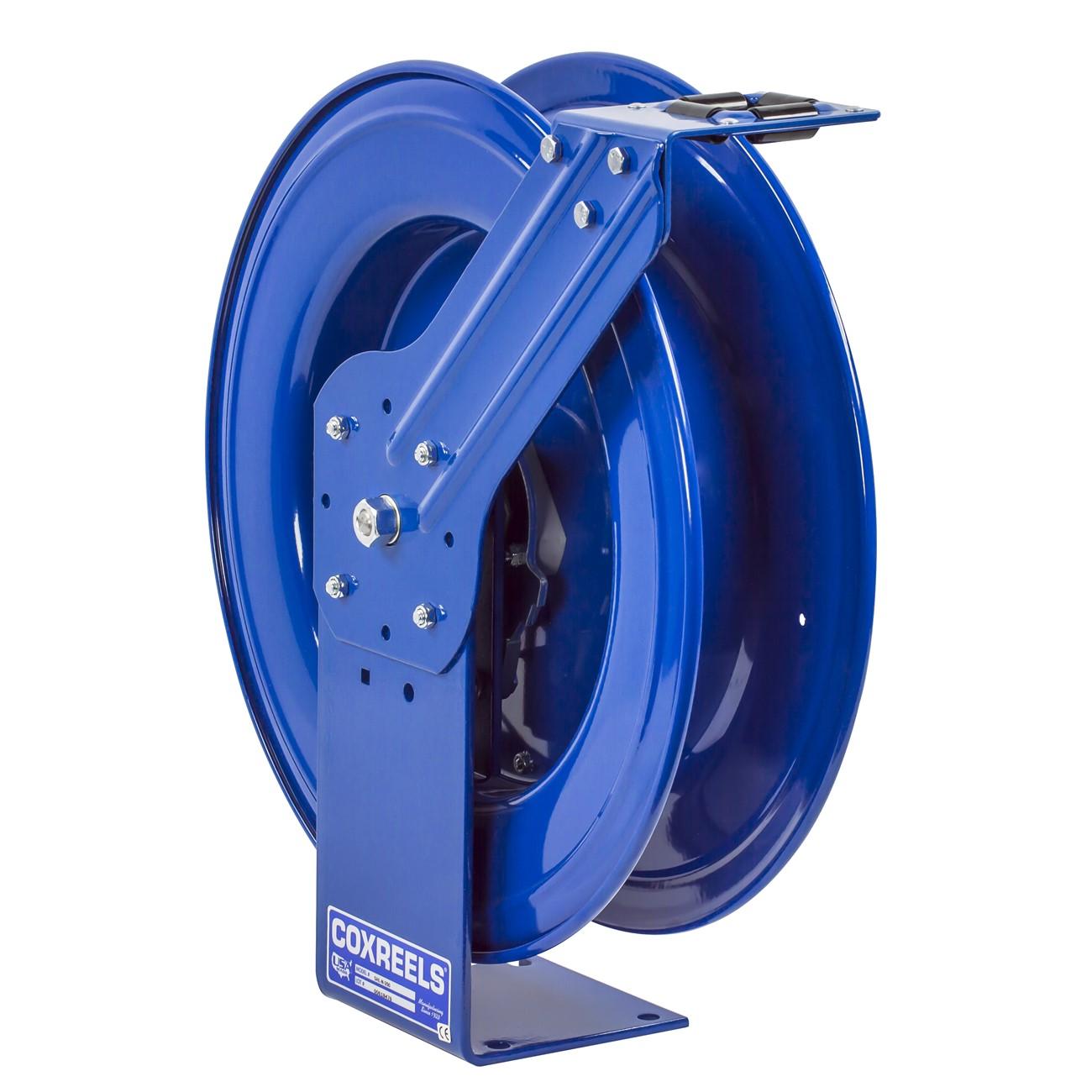

Coxreels SHL-N-3100 Spring Driven Hose Reel 3/8 in 100 Ft

Product Description

The COXREELS SHL-N-3100 is a spring-driven hose reel from the SH Series Super Hub line, built for heavy-duty fluid delivery and retrieval in demanding trade environments. The reel accepts 3/8-inch ID hose up to 100 feet in length and is constructed with a steel chassis designed to handle longer hose runs and larger hose diameters than standard compact reels. A dual axle support system reduces vibration and increases structural stability during operation. The cartridge-style rewind motor is enclosed and lubricated, making it serviceable without removing the reel from its mount. Licensed plumbers, industrial maintenance technicians, and fleet service professionals are the typical installers.

This reel suits a wide range of stationary and mobile service applications, including shop air lines, fluid dispensing systems, and vehicle-mounted service rigs. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility in tight or unconventional spaces. The single-pedestal steel base requires no welding during installation and provides a stable, low-profile footprint. It is well suited to both fixed service bay installations and vehicle-mounted hose management setups.

Key Features

• Spring-driven retraction with an enclosed, lubricated cartridge motor for low-maintenance operation
• Dual axle Super Hub support system reduces vibration and strengthens frame integrity
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Multi-position guide arm compatible with wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust for long service life

Compatibility

Designed as an OEM-style replacement or new-installation spring-driven hose reel for 3/8-inch ID hose applications up to 100 feet in length.

Installation Notes

Installation is typically performed by licensed plumbers, mechanical contractors, or qualified shop technicians. Depressurize and drain the hose and supply line completely before mounting or connecting the reel. Secure the steel base to a structurally sound surface using hardware rated for the reel weight and anticipated line pressure. Verify all NPT swivel connections are properly sealed and torqued to fitting manufacturer standards before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Maximum Hose Length: 100 feet
• Drive Type: Spring driven
• Frame Material: Steel
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 60 pounds
• UPC: 674255729605

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHL-N-3100
