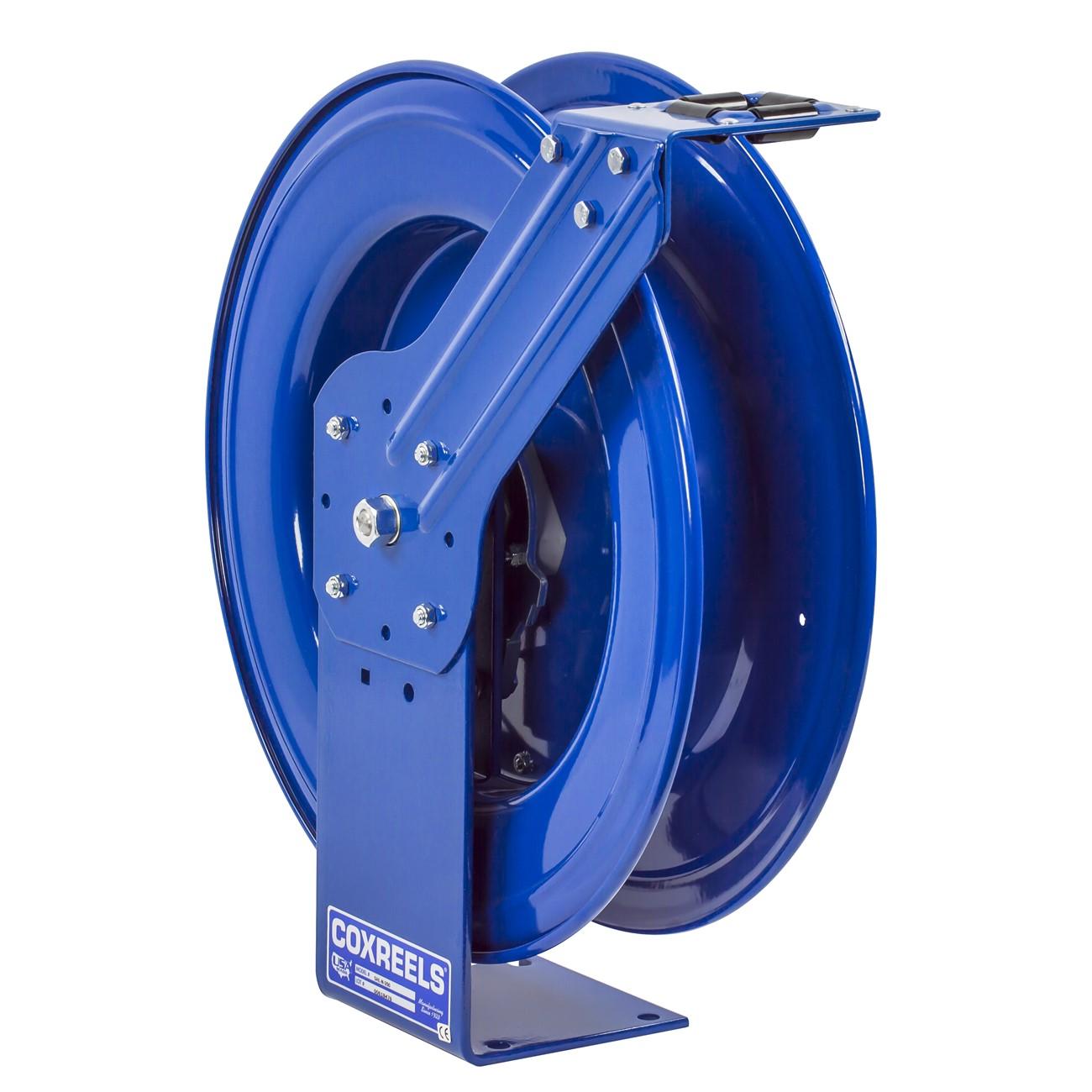

Coxreels SHFL-N-525 Fuel Hose Reel 3/4 in 25 Ft Spring Driven

Product Description

The COXREELS SHFL-N-525 is a spring-driven fuel hose reel from the SH Series, designed for reliable fuel dispensing in demanding service environments. Built on a larger chassis than standard compact reels, it accommodates a 3/4-inch ID, 1-1/8-inch OD hose up to 25 feet in length. The reel uses a lubricated, enclosed cartridge-style spring motor that can be removed without specialized tooling for routine maintenance. A machined solid-brass 90-degree full-flow NPT swivel is matched to fuel dispensing service. Sturdy CNC robotically spun and ribbed discs with rolled edges provide structural durability and protect the hose during retraction. This reel is installed by mechanics, fleet service technicians, and fuel-system professionals in garages, truck stops, and mobile service applications.

The SHFL-N-525 is suited for fuel dispensing installations in commercial garages, fleet maintenance facilities, service bays, and mobile service vehicles. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across a wide range of service bay layouts. The single-pedestal steel base provides a stable mounting footprint without requiring welded fabrication. The reel is intended for use with fuel dispensing hose rated for petroleum-based fluids.

Key Features

• Spring-driven retraction with a lubricated, enclosed cartridge motor — removable for safe, convenient maintenance
• Machined solid-brass 90-degree full-flow NPT swivel rated for fuel dispensing applications
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Solid one-piece 1/4-inch steel base with single-pedestal, no-weld support post for maximum stability
• Exclusive dual-axle Super Hub support system reduces vibration and reinforces structural integrity during operation
• Multi-position guide arm mounts to wall, floor, ceiling, or vehicle; includes adjustable solid-rubber hose stop
• CPC powder coat finish — chip resistant and rust inhibiting for long service life

Compatibility

Designed as an OEM-style spring-driven reel for fuel dispensing hose service; intended for use with 3/4-inch ID fuel dispensing hose up to 25 feet in petroleum-rated service applications.

Installation Notes

Installation should be performed by a qualified mechanic or fuel-system technician familiar with applicable fire codes and local regulations governing fuel dispensing equipment. Shut off all fuel supply lines and eliminate ignition sources in the work area before mounting or servicing the reel. Secure the steel base to a structurally sound surface using fasteners appropriate for the mounting substrate. Verify all NPT swivel connections are leak-free before returning the system to service.

Technical Specifications

• Hose ID: 3/4 inches
• Hose OD: 1-1/8 inches
• Hose Length: 25 feet
• Drive Type: Spring driven
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Material: 1/4-inch solid steel, single-pedestal no-weld design
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 45 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHFL-N-525
