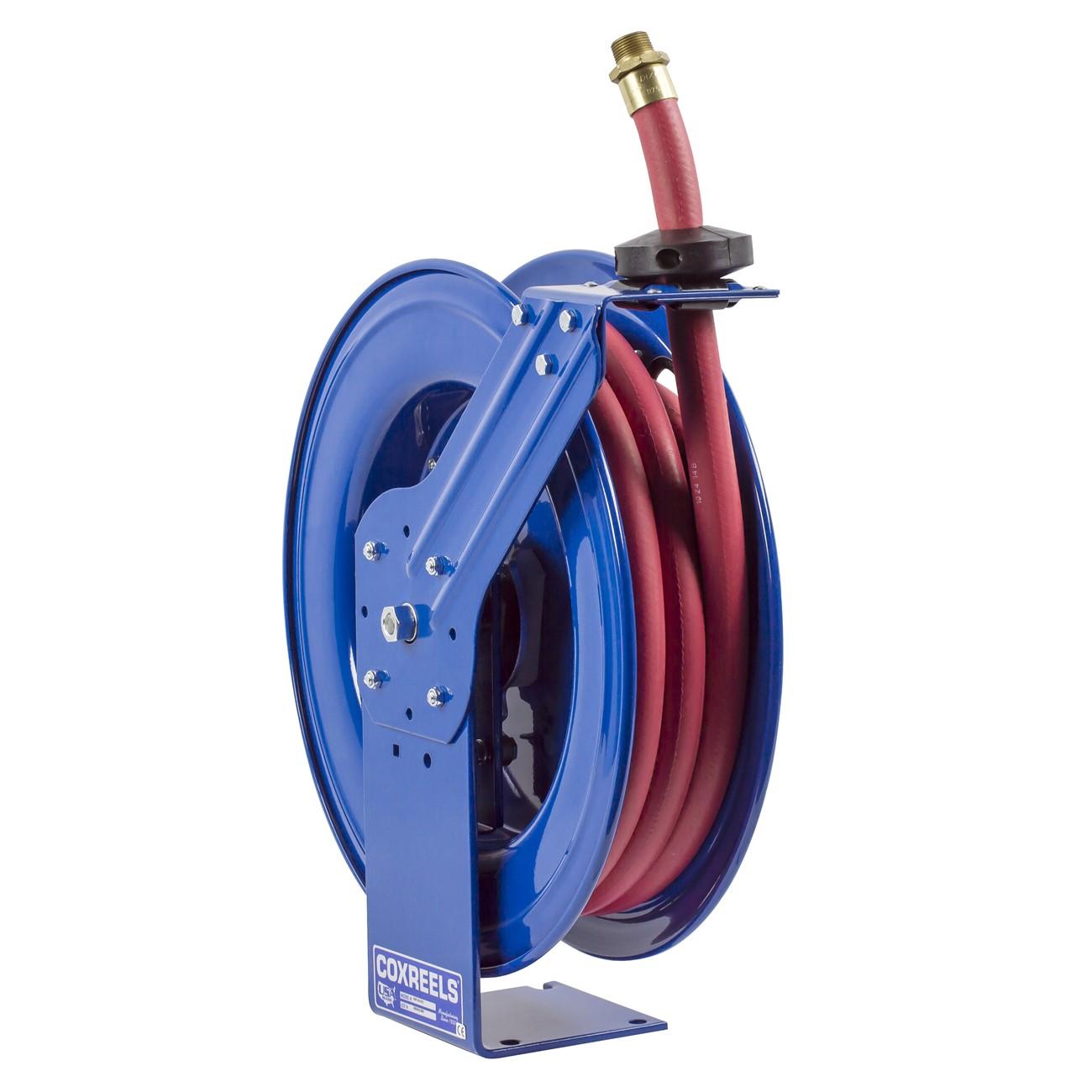

Coxreels SHF-N-525 Fuel Hose Reel 3/4 Inch 25 Ft

Product Description

The COXREELS SHF-N-525 is a spring-driven fuel hose reel built on the SH Series Super Hub platform, designed for commercial and industrial fuel dispensing applications. It accommodates 3/4 inch ID hose up to 25 feet in length and features a dual axle Super Hub support system that reduces vibration and increases structural stability during operation. The reel ships with a machined solid brass 90-degree full-flow NPT swivel rated for fuel service. A lubricated, enclosed cartridge-style spring motor is field-removable, making maintenance straightforward without specialized tooling. Licensed technicians and fuel equipment service professionals are the primary installers of this unit.

The SHF-N-525 is suited for fuel dispensing stations, fleet service facilities, agricultural operations, and vehicle-mounted service trucks where a retractable hose reel is needed for diesel, gasoline, or similar petroleum-based fluids. The larger SH Series chassis accommodates the added demands of fuel hose, which runs heavier and stiffer than standard air or water hose. The multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting, giving installers flexibility across a wide range of service environments.

Key Features

• Spring-driven retraction with lubricated, enclosed cartridge-style motor for easy field removal and maintenance
• Machined solid brass 90-degree full-flow NPT swivel rated for fuel dispensing service
• Super Hub dual axle support system reduces vibration and strengthens structural integrity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece 1/4 inch steel base and support post, no-weld construction, for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish is chip resistant and rust inhibiting for long service life

Compatibility

Designed for use with 3/4 inch ID fuel dispensing hose up to 25 feet in length in commercial and industrial fuel service installations.

Installation Notes

Installation should be performed by a qualified fuel equipment technician or licensed tradesperson familiar with petroleum dispensing systems and applicable local codes. Shut off fuel supply and depressurize the hose line completely before mounting or servicing the reel. Ensure the mounting surface and fasteners are rated for the combined weight of the reel, hose, and fluid load. Follow all applicable fire codes and manufacturer torque requirements for swivel and inlet fittings.

Technical Specifications

• Hose ID: 3/4 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Material: 1/4 inch steel, one-piece no-weld construction
• Mounting Positions: Wall, floor, ceiling, vehicle
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 57 pounds
• Finish: CPC powder coat, chip resistant and rust inhibiting
• UPC: 674255723689

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SHF-N-525
