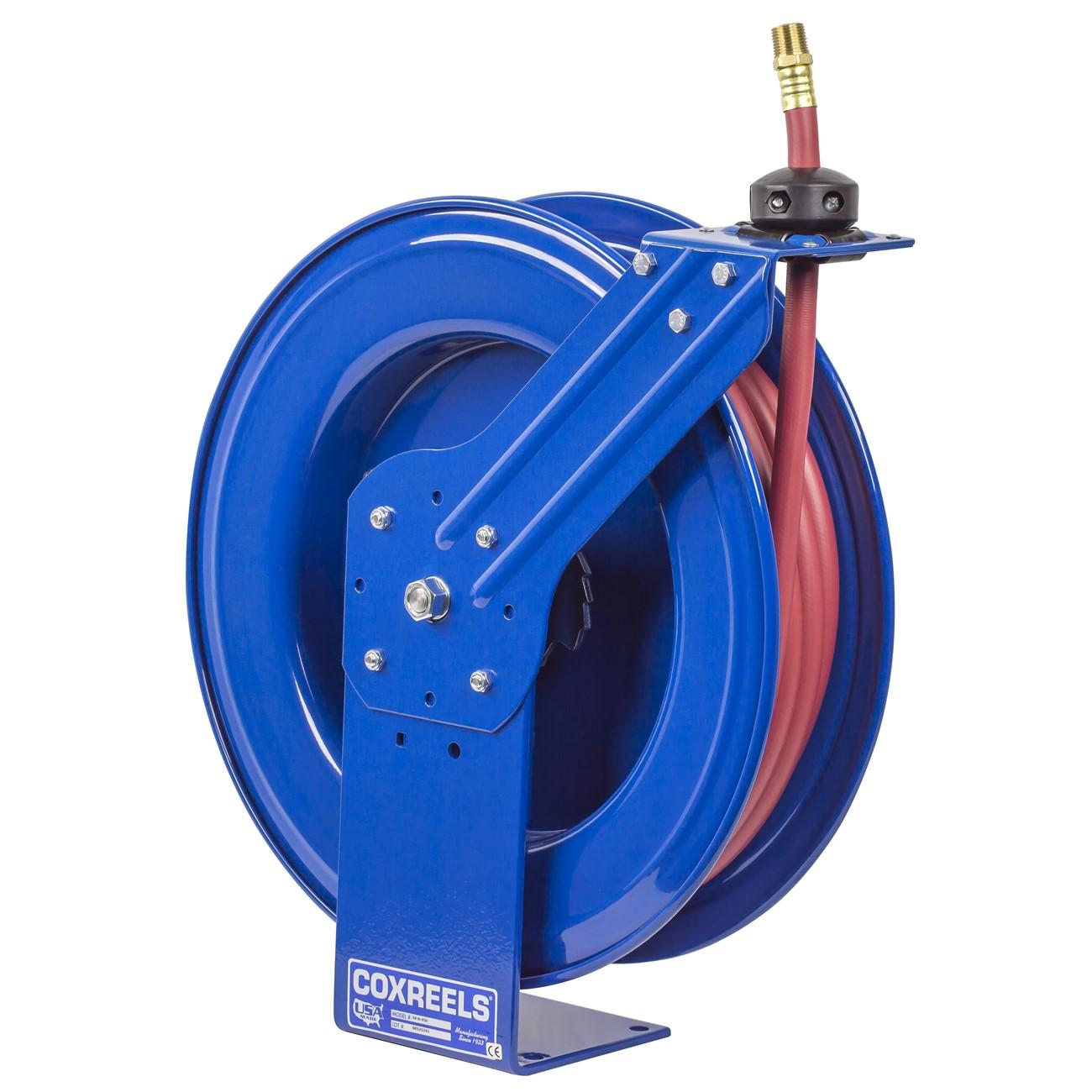

Coxreels SH-N-550 Spring Driven Hose Reel 50 Ft Steel

Product Description

The COXREELS SH-N-550 is a spring-driven hose reel from the SH Series Super Hub line, built for demanding industrial and trade applications. It features a solid steel construction with a 3/4 inch inner diameter hose inlet and accommodates up to 50 feet of hose. The dual axle Super Hub support system reduces operational vibration and reinforces structural integrity during repeated use. A machined brass 90-degree full-flow NPT swivel allows fast hose installation and seal maintenance without removing the reel from its mount. Licensed plumbers, maintenance technicians, and facility service pros are the typical installers of this unit.

The SH-N-550 is suited for stationary and mobile service setups in commercial, industrial, and fleet maintenance environments. The larger SH Series chassis is engineered to handle longer hose runs and larger hose diameters compared to standard compact reels. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable across a wide range of service bays, utility rooms, and mobile work vehicles.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor for easy field maintenance
• Machined solid brass 90-degree full-flow NPT swivel — no reel removal required for seal service
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• 1/4 inch solid one-piece steel base with single pedestal design and no-weld support post
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chipping and rust; adjustable solid rubber hose stop included

Compatibility

Designed as an OEM-style replacement or direct application fit for industrial spring-driven hose reel installations requiring a 3/4 inch ID inlet and up to 50 feet of hose capacity.

Installation Notes

Installation of this hose reel should be performed by a qualified technician familiar with industrial fluid or air distribution systems. Shut off the supply line and relieve all pressure before mounting or servicing the reel. Secure the mounting surface to a structure rated for the combined weight of the reel and fully loaded hose. Refer to applicable facility and safety codes for overhead or vehicle-mounted configurations.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1 1/16 inches
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Material: Steel
• Swivel: Machined solid brass 90-degree full-flow NPT
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 69 pounds
• UPC: 674255729582

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SH-N-550
