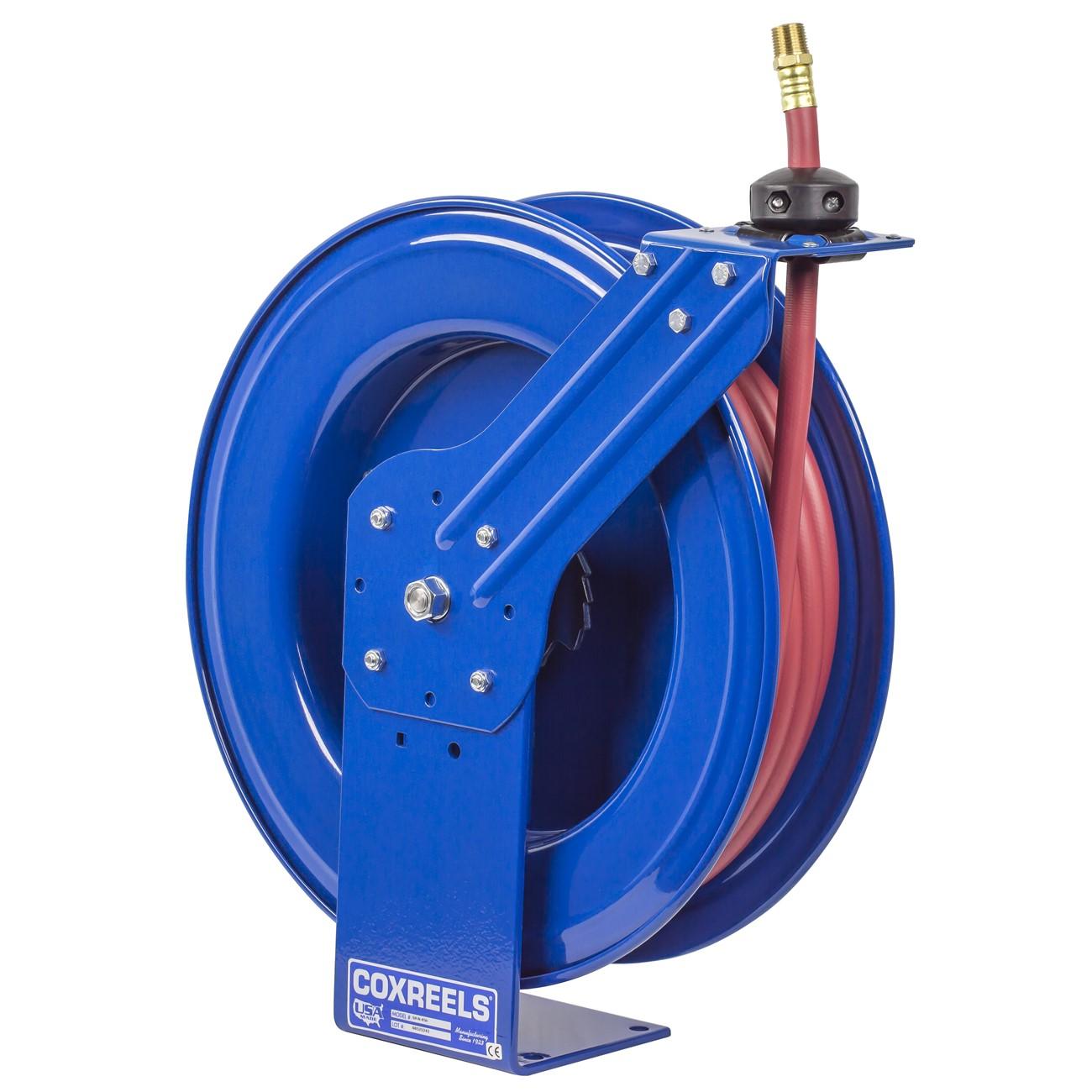

Coxreels SH-N-535 Spring Driven Hose Reel 3/4 in 35 Ft

Product Description

The COXREELS SH-N-535 is a spring-driven hose reel from the SH Series Super Hub line, built for demanding trade applications where reliable hose retraction and structural durability are required. The reel accepts hose with a 3/4 inch inner diameter and 1-1/16 inch outer diameter, supporting up to 35 feet of hose length. A dual axle support system reduces vibration during operation and reinforces the structural integrity of the frame. The larger chassis and frame compared to standard series reels accommodate longer and larger-diameter hose runs. At 57 pounds, this is a heavy-duty unit suited for permanent or vehicle-mounted installations handled by experienced tradespeople.

The SH-N-535 is used in industrial, fleet maintenance, and facility service applications where spring retraction is needed for air, water, or compatible fluid lines. The multi-position guide arm allows mounting to walls, floors, ceilings, or vehicles, giving installers flexibility across shop, service bay, and mobile service environments. The solid one-piece steel base and single pedestal design provide stability without welded joints, making this reel appropriate for high-cycle service conditions.

Key Features

• Spring-driven retraction with enclosed cartridge-style motor for easy removal and maintenance
• Machined solid brass 90-degree full-flow NPT swivel allows seal service and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Dual axle Super Hub support system reduces operational vibration and increases frame rigidity
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style fit within the COXREELS SH Series platform for applications requiring a spring-driven reel with 3/4 inch ID hose capacity up to 35 feet.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting requirements and applicable facility or vehicle codes. Depressurize and disconnect the hose line completely before mounting or servicing the reel. Secure the mounting surface to handle the combined weight of the reel and loaded hose. Verify NPT swivel connections are properly sealed before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1-1/16 inch
• Maximum Hose Length: 35 feet
• Drive Type: Spring driven
• Swivel Type: Machined brass 90-degree full-flow NPT
• Base Material: Steel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 57 pounds
• Finish: CPC powder coat
• UPC: 674255726581

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SH-N-535
