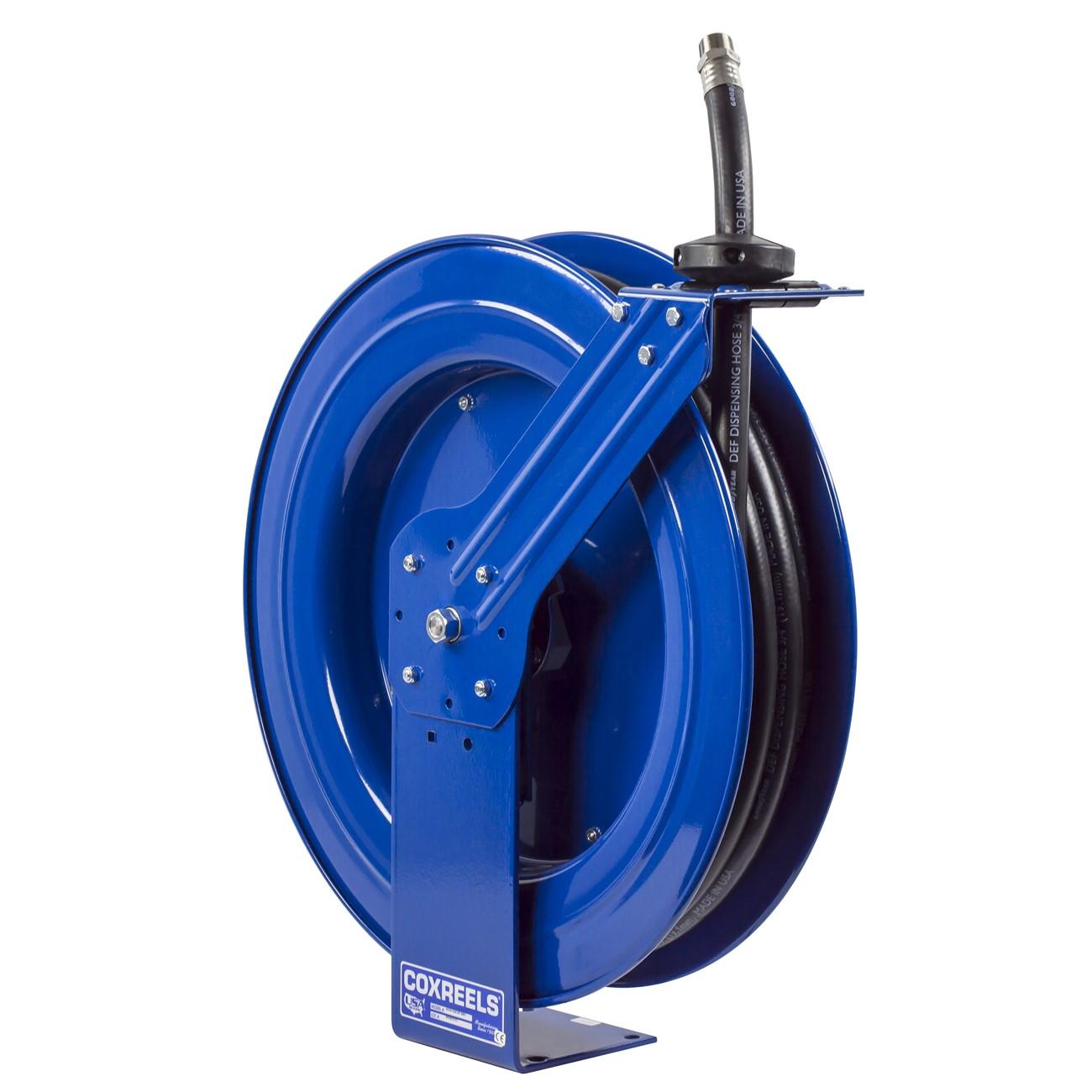

Coxreels SH-N-525-DF-BBX Def Hose Reel 3/4 Inch

Product Description

The COXREELS SH-N-525-DF-BBX is a heavy-duty Diesel Exhaust Fluid (DEF) hose reel from the SH-DEF Series, designed for safe and reliable DEF dispensing in demanding shop or fleet service environments. It features a stainless steel 90-degree full-flow NPT swivel with chemical-resistant Viton seals, engineered to stand up to DEF's corrosive properties. The single-pedestal SH Series configuration uses a solid one-piece steel base with no welds for maximum stability. A cartridge-style motor is fully enclosed and lubricated for extended service life. Licensed HVAC techs, fleet mechanics, and lube shop technicians routinely specify this reel for stationary and mobile DEF dispensing installations.

This reel is built for facilities that require a dedicated, fixed or vehicle-mounted DEF dispensing station. The multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting, making it adaptable to tight service bays or mobile lube trucks. The hose inlet measures 3/4 inch ID with a 1-1/8 inch OD, sized for standard DEF dispensing hose. The exclusive Super Hub dual axle support system reduces vibration during reel operation, an important factor in rugged mobile applications where stability affects dispense accuracy and equipment longevity.

Key Features

• Stainless steel 90-degree full-flow NPT swivel with Viton seals rated for DEF chemical resistance
• Enclosed, lubricated cartridge-style motor is removable for field maintenance without disassembling the reel
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base and support post construction with no welds for maximum structural integrity
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chipping and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style DEF dispensing reel for stationary service bay installations and mobile fleet maintenance applications requiring a 3/4 inch ID hose connection.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid dispensing system requirements. Shut off and depressurize the DEF supply line before mounting or connecting the reel. Mounting hardware selection should match the substrate type (steel framing, masonry, or vehicle frame rail) to support the reel's operating weight. Consult local environmental and fluid-handling codes before routing DEF lines in enclosed facilities.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1-1/8 inch
• Swivel Type: Stainless steel 90-degree full-flow NPT
• Seal Material: Viton
• Base Construction: Single pedestal, solid one-piece steel, no weld
• Finish: CPC powder coat
• Weight: 57 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SH-N-525-DF-BBX
