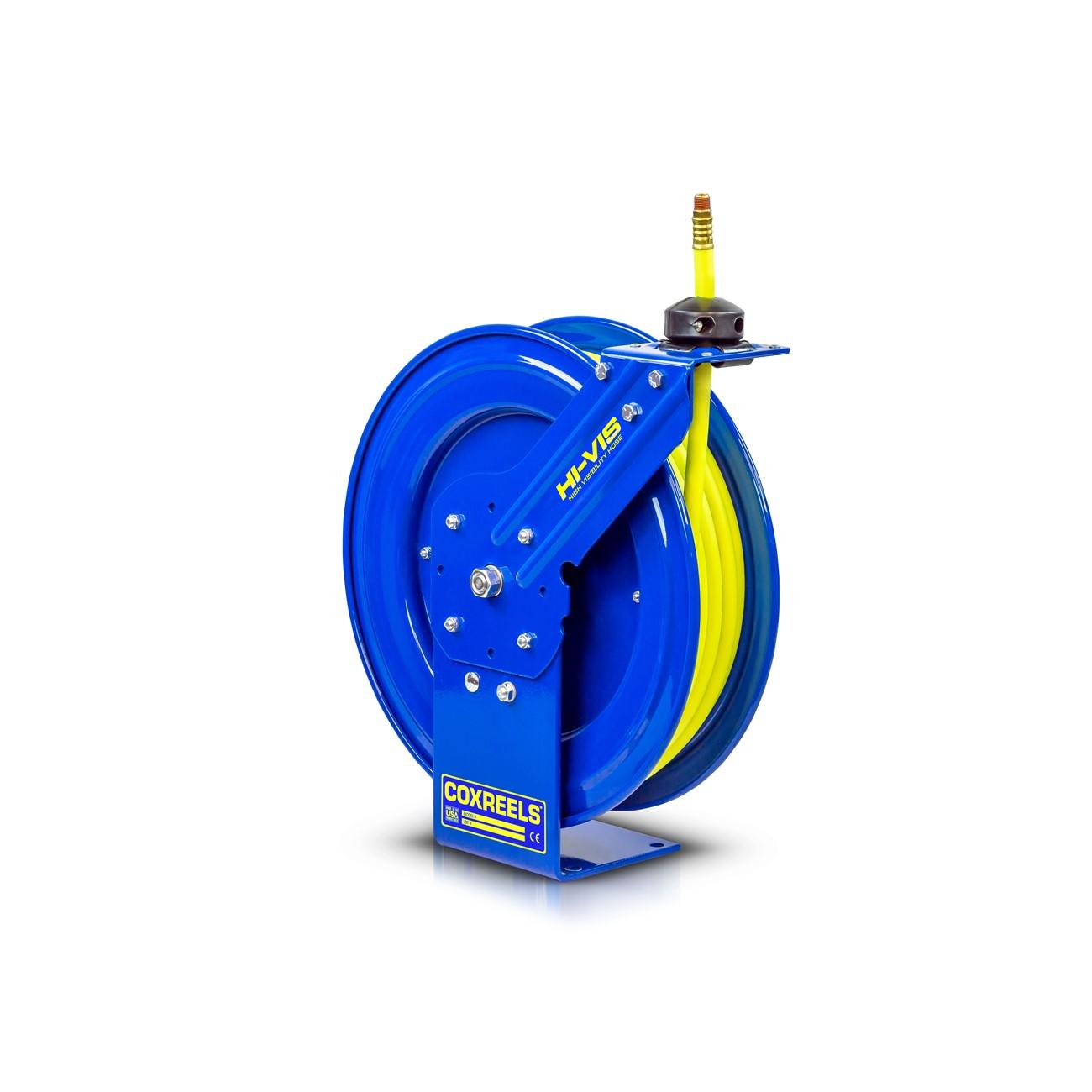

Coxreels SH-N-475-HV Hv Safety Hose Reel 1/2 in 75 Ft

Product Description

The COXREELS SH-N-475-HV is a high visibility safety hose reel engineered for demanding trade environments where hose awareness and operator safety are critical. The reel accepts a 1/2 inch ID, 3/4 inch OD hybrid bright yellow hose with a white gloss stripe, making it easy to track in busy work areas. The unit weighs 68 pounds and measures 25 inches in length, 13 inches in width, and 27 inches in height. It features a CNC robotically spun and ribbed disc assembly, a cartridge-style motor, and a solid one-piece steel base. Licensed contractors and industrial service technicians install this reel in fixed and mobile applications requiring reliable hose management.

The SH-N-475-HV is suited for industrial, commercial, and fleet service settings where a 75-foot hose reach is required. The adjustable guide arm accommodates wall, floor, ceiling, and vehicle mounting positions, making it adaptable across shop, field, and mobile service unit installations. The high visibility hose construction reduces trip hazard potential by laying flat and offering enhanced kink resistance with reduced coil memory. This reel is appropriate for service bays, maintenance facilities, and utility vehicles where controlled hose retraction and operator visibility are prioritized.

Key Features

• High visibility hybrid hose: bright yellow with white glossy stripe improves awareness in active work areas
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is fully removable for field maintenance
• Solid one-piece steel base with single pedestal design and dual axle support for maximum stability
• CPC powder coat finish resists chips and rust; versatile guide arm adjusts for wall, floor, ceiling, and vehicle mounting

Compatibility

Designed as an OEM-style replacement or direct-fit unit for industrial and commercial hose reel applications requiring a 1/2 inch ID, 75-foot capacity reel with high visibility hose.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting and fluid system connections. Shut off all supply pressure and depressurize the hose before mounting or servicing the reel. Verify that mounting surface load capacity is appropriate for the 68-pound unit weight plus hose and fluid load. Consult applicable facility and safety codes for proper anchoring hardware and positioning requirements.

Technical Specifications

• Hose Inside Diameter: 1/2 inch
• Hose Outside Diameter: 3/4 inch
• Hose Length: 75 feet
• Weight: 68 pounds
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Swivel Type: Machined solid brass 90-degree full-flow NPT
• Disc Construction: CNC robotically spun and ribbed with rolled edges
• Base Material: One-piece steel
• Finish: CPC chip-resistant and rust-inhibiting powder coat
• UPC: 674255752610

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SH-N-475-HV
