Coxreels SH-N-450 Spring Driven Hose Reel 1/2 in 50 Ft

Product Description

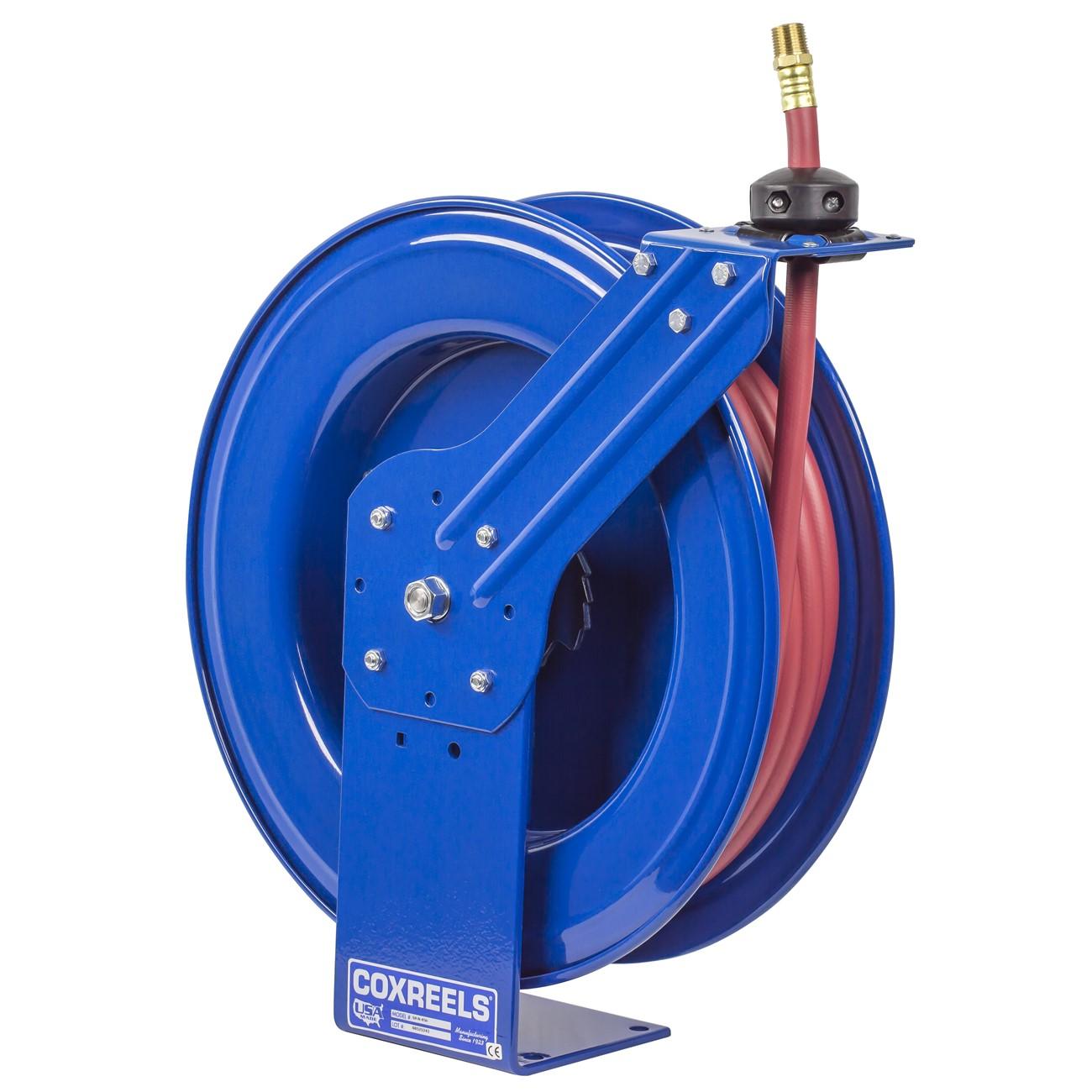

The COXREELS SH-N-450 is a spring-driven hose reel from the SH Series Super Hub line, built for demanding industrial and trade applications. The reel features a dual axle support system that stabilizes the drum during operation, reduces vibration, and reinforces the overall frame. A machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount. Weighing 54 pounds and measuring 20.5 inches long by 10.5 inches wide by 22 inches tall, the SH-N-450 is designed to handle 1/2 inch ID hose up to 50 feet in length. Licensed contractors and industrial maintenance technicians are the primary installers.

The SH-N-450 suits commercial and industrial installations where longer hose lengths and larger hose diameters are routine. The larger chassis and frame construction of the SH Series accommodates heavier-duty hose configurations compared to the P Series. Common deployment scenarios include shop floors, service bays, fleet maintenance facilities, and mobile service vehicles. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making the reel adaptable to a wide range of fixed and mobile installation environments.

Key Features

• Spring-driven retraction with enclosed cartridge-style motor that is removable for maintenance without specialized tools
• Machined solid brass 90-degree full-flow NPT swivel allows in-place seal service and fast hose installation
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Dual axle Super Hub support system reduces vibration and increases structural stability during operation
• Single pedestal design with solid one-piece steel base and support post, no weld construction
• CPC powder coat finish with chip resistance and rust inhibition; adjustable solid rubber hose stop included

Compatibility

Designed as an OEM-style spring-driven hose reel for industrial and commercial service applications requiring 1/2 inch ID hose up to 50 feet in length.

Installation Notes

Installation is typically performed by industrial maintenance technicians or licensed contractors familiar with hose reel mounting and fluid system connections. Depressurize and bleed the supply line before connecting or servicing the reel swivel. Verify that the mounting surface and fasteners are rated for the combined weight of the reel and a fully loaded hose. The multi-position guide arm must be secured in the correct orientation for the intended mount type before putting the reel into service.

Technical Specifications

• Hose ID: 1/2 inch
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Material: Steel
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 54 pounds
• UPC: 674255719392

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SH-N-450
