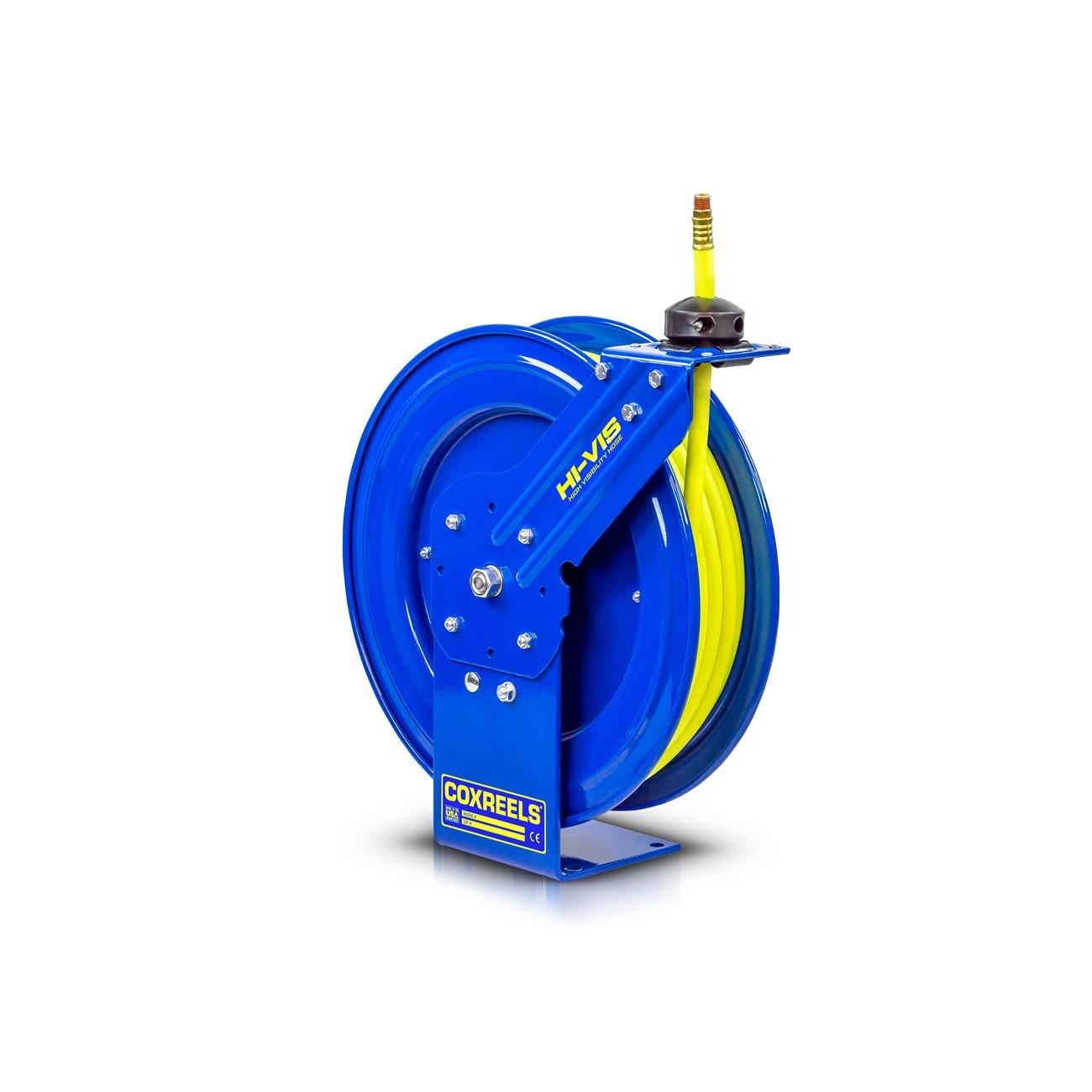

Coxreels SH-N-450-HV Safety Hose Reel 1/2 in 50 Ft

Product Description

The COXREELS SH-N-450-HV is a high-visibility safety hose reel designed for professional environments where hose awareness and operator safety are critical. This reel ships with a hybrid bright yellow hose featuring a white glossy stripe, combining PVC and rubber construction for reduced weight, improved flexibility, and enhanced kink resistance. The unit weighs 54 pounds and measures 20.5 inches long, 10.5 inches wide, and 22 inches tall. Licensed tradespeople in industrial, fleet service, and facility maintenance settings install this reel as a fixed or vehicle-mounted retractable hose management solution. The 1/2 inch ID, 3/4 inch OD hose runs 50 feet and integrates with a spring-driven retraction motor for controlled retrieval.

The SH-N-450-HV is suited for compressed air and fluid delivery applications in shops, service bays, and mobile service units where trip hazards and hose damage are ongoing concerns. The high-visibility hose reduces the likelihood of personnel contact with a deployed hose line. The versatile guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making this reel adaptable across a wide range of service environments. The sturdy single-pedestal steel base with integrated dual axle support provides stable operation under repeated daily use.

Key Features

• Hybrid PVC-rubber high-visibility hose: bright yellow with white glossy stripe for increased awareness in active work areas
• Enhanced kink resistance and reduced coil memory allow the hose to lay flat, lowering trip hazard potential
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose changes without removing the reel from its mount
• Enclosed cartridge-style retraction motor is fully lubricated and removable for field maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for structural strength and hose protection
• Chip-resistant, rust-inhibiting CPC powder coat finish with permanently lubricated precision bearings for long service life

Compatibility

Designed as an OEM-style replacement or direct-install retractable hose reel for professional compressed air and fluid delivery systems requiring a 1/2 inch ID hose connection with NPT fittings.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air or fluid system plumbing. Depressurize and isolate the supply line before connecting or disconnecting the reel. Secure the mounting base to a structurally adequate surface capable of supporting the loaded weight of the reel and extended hose. Verify NPT thread engagement and check for leaks before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Hose Length: 50 feet
• Hose Construction: Hybrid PVC and rubber blend
• Hose Color: Bright yellow with white glossy stripe
• Swivel Type: 90-degree full-flow NPT, solid brass
• Base Construction: Single pedestal, one-piece steel
• Finish: CPC powder coat, chip and rust resistant
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 54 pounds
• UPC: 674255752603

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SH-N-450-HV
