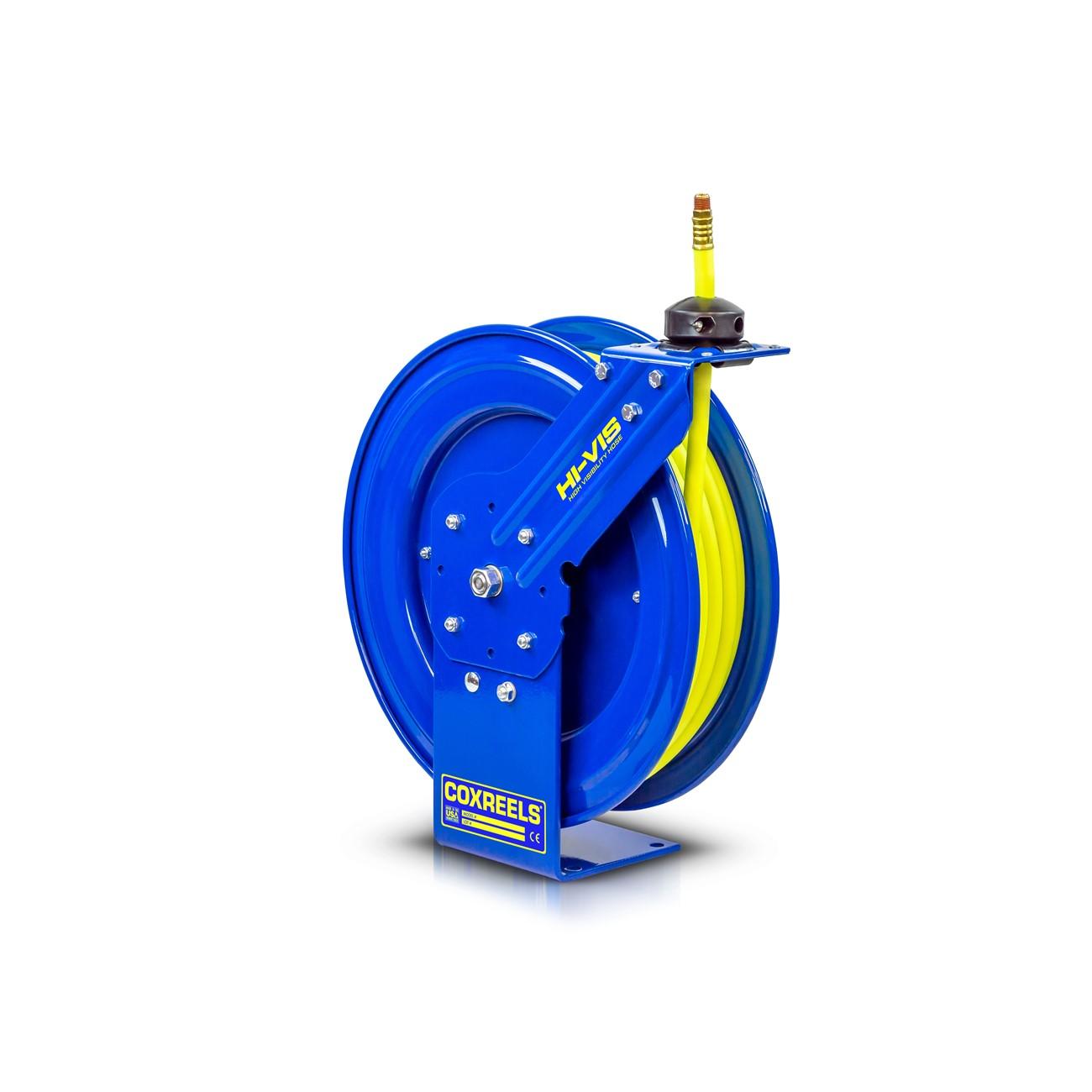

Coxreels SH-N-4100-HV High Visibility Safety Hose Reel

Product Description

The COXREELS SH-N-4100-HV is a high-visibility safety hose reel built for demanding trade environments where hose awareness and operator safety are priorities. The reel features a hybrid bright yellow hose with a white glossy stripe that increases visibility on the job site. The frame is constructed from steel with a CPC powder coat finish that resists chipping and rust. Weighing 81 pounds and measuring 25 inches long by 13 inches wide by 27 inches tall, this is a full-size unit suited for fixed installation in industrial, fleet, or shop settings. It is installed by maintenance technicians, industrial mechanics, and service shop personnel.

The SH-N-4100-HV is designed for fixed-mount applications in garages, service bays, fleet maintenance facilities, and industrial workspaces. The hose inlet is 1/2 inch ID with a 3/4 inch OD. The single pedestal base supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a wide range of facility layouts. The high-visibility hose construction reduces trip hazards and improves hose management in high-traffic work areas.

Key Features

• High-visibility hybrid hose in bright yellow with a white glossy stripe for improved job site awareness
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Lubricated, enclosed cartridge-style motor is removable for maintenance without full disassembly
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Solid one-piece steel base with single pedestal design and dual axle support for maximum stability
• Versatile guide arm adjusts for wall, floor, ceiling, and vehicle mounting positions
• Long-lasting CPC powder coat finish resists chips and rust; permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct-fit safety hose reel for fixed-mount hose management systems in industrial, fleet maintenance, and service shop applications.

Installation Notes

Installation is typically performed by maintenance mechanics or industrial service technicians. Shut off the fluid supply and depressurize the hose line completely before mounting or connecting the reel. Verify that the mounting surface can support the loaded weight of the reel and hose. Consult applicable facility codes and the manufacturer installation guide for fastener and fitting requirements.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Frame Material: Steel
• Swivel Material: Solid Brass
• Finish: CPC Powder Coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 81 pounds
• UPC: 674255752627

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SH-N-4100-HV
