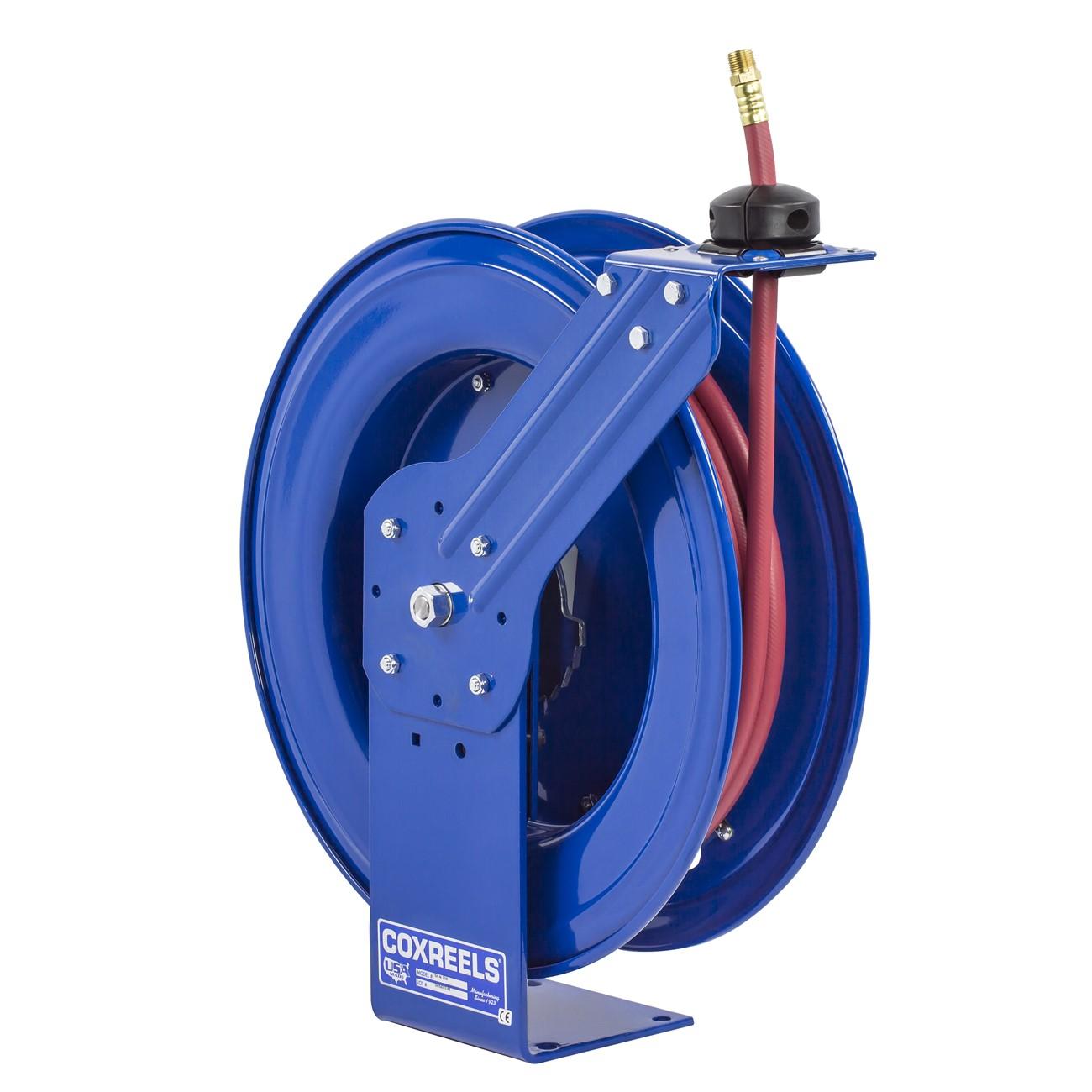

Coxreels SH-N-375 Spring Driven Hose Reel 3/8 in 75 Ft

Product Description

The COXREELS SH-N-375 is a spring-driven hose reel from the SH Super Hub series, engineered for demanding trade applications where longer hose runs and larger hose diameters are routine. The reel accepts 3/8-inch ID hose up to 75 feet in length and retracts automatically via an enclosed cartridge-style spring motor. The chassis is built around Coxreels dual axle support system, which distributes load across two axle points to reduce vibration, improve stability during retraction, and strengthen the overall structural integrity of the reel frame. At 68 pounds, this is a heavy-duty unit intended for permanent or semi-permanent mounting by industrial service technicians, plumbers, or facility maintenance crews.

The SH-N-375 is suited for shop air, water, or fluid service lines in commercial garages, manufacturing facilities, fleet service bays, and similar fixed-station environments. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a wide range of installation layouts. The spring-retract design keeps hose organized and off the floor, reducing trip hazards and hose wear in high-traffic service areas.

Key Features

• Spring-driven cartridge motor is fully enclosed, lubricated, and removable for maintenance without disassembling the reel from its mount
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel
• Heavy-duty CNC robotically spun discs feature rolled edges and ribbing for structural strength and hose protection
• Single-pedestal steel base with solid one-piece support post constructed without welds for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with 3/8-inch ID hose up to 75 feet in length. Typical applications include air, water, and general fluid service lines. Verify hose OD of 5/8 inch and working pressure rating before installation to confirm fitment.

Installation Notes

Installation should be performed by a qualified technician familiar with the applicable service medium — compressed air, water, or fluid lines. Shut off and depressurize the supply line completely before connecting or disconnecting the swivel fitting. Secure the mounting base to a structural surface rated for the combined weight of the reel and fully loaded hose. Consult local mechanical codes and the manufacturer installation guide for mounting hardware specifications and hose pressure ratings.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Maximum Hose Length: 75 feet
• Retraction Type: Spring driven
• Swivel Type: 90-degree full-flow NPT brass swivel
• Disc Construction: CNC robotically spun, ribbed with rolled edges
• Base Construction: Single-pedestal solid one-piece steel, no-weld
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 68 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SH-N-375
