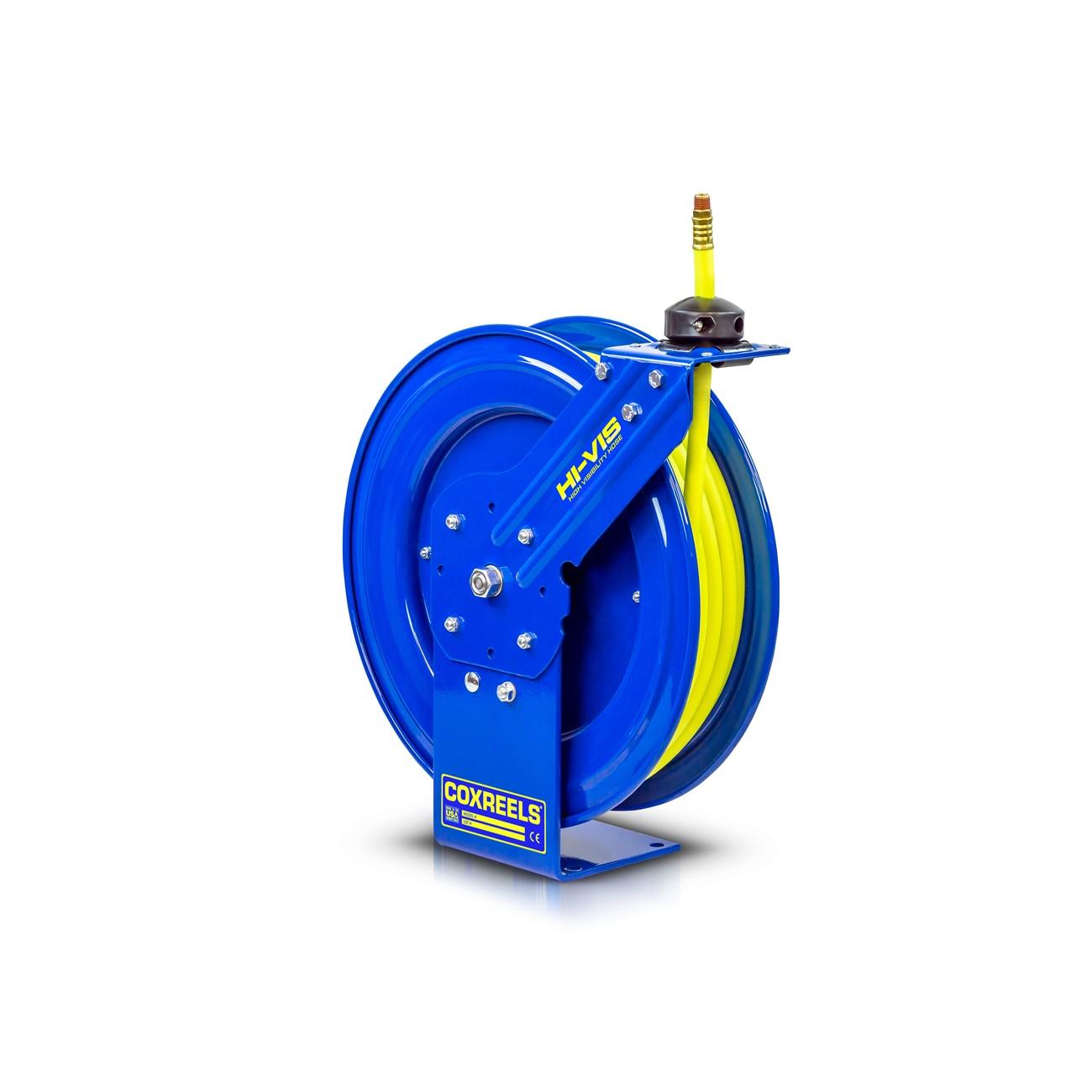

Coxreels SH-N-375-HV Hv Safety Hose Reel 3/8 in 75 Ft

Product Description

The COXREELS SH-N-375-HV is a high-visibility safety hose reel designed for demanding industrial and trade environments where hose location and operator awareness are critical. Built around a bright yellow hybrid hose with a white glossy stripe, this reel makes the hose easy to spot in busy workspaces. The unit features a machined solid brass 90-degree full-flow NPT swivel, CNC robotically spun and ribbed steel discs, and a lubricated enclosed cartridge-style motor. The reel suits applications requiring controlled retraction and a durable, stable mounting platform. Licensed tradespeople and facilities maintenance professionals are the typical installers.

The SH-N-375-HV is suited for use in commercial and industrial settings such as garages, service bays, manufacturing floors, and fleet maintenance facilities. The 3/8-inch ID, 5/8-inch OD hose with a 75-foot length provides adequate reach for most stationary service stations. The adjustable guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making this reel adaptable across a wide range of facility layouts. The hybrid PVC and rubber blend hose construction improves flexibility in low-temperature environments while maintaining kink resistance and reducing coil memory for a flatter lay that lowers trip hazard potential.

Key Features

• High-visibility hybrid hose — bright yellow with a white glossy stripe for improved job-site awareness
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Lubricated, enclosed cartridge-style motor is removable for maintenance without full disassembly
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Single-pedestal solid one-piece steel base with no-weld construction and dual axle support for maximum stability
• CPC powder coat finish resists chips and rust; adjustable guide arm mounts to wall, floor, ceiling, or vehicle

Compatibility

Designed as an OEM-style replacement or direct-fit hose reel for commercial and industrial hose reel installations requiring a 3/8-inch ID hose connection and standard NPT swivel fittings.

Installation Notes

Installation is typically performed by a qualified millwright, maintenance technician, or facilities professional. De-pressurize and disconnect all fluid supply lines before mounting or servicing the reel. Mounting hardware should be appropriate for the substrate — wall, ceiling, floor, or vehicle — and should support the loaded weight of the reel and hose. Refer to applicable OSHA and local safety codes for overhead and vehicle-mounted installations.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Outer Diameter: 5/8 inches
• Hose Length: 75 feet
• Hose Material: Hybrid PVC and rubber blend
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Construction: Single-pedestal solid one-piece steel, no-weld
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Unit Weight: 68 pounds
• Unit Length: 25 inches
• Unit Width: 13 inches
• Unit Height: 27 inches
• UPC: 674255752580

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SH-N-375-HV
