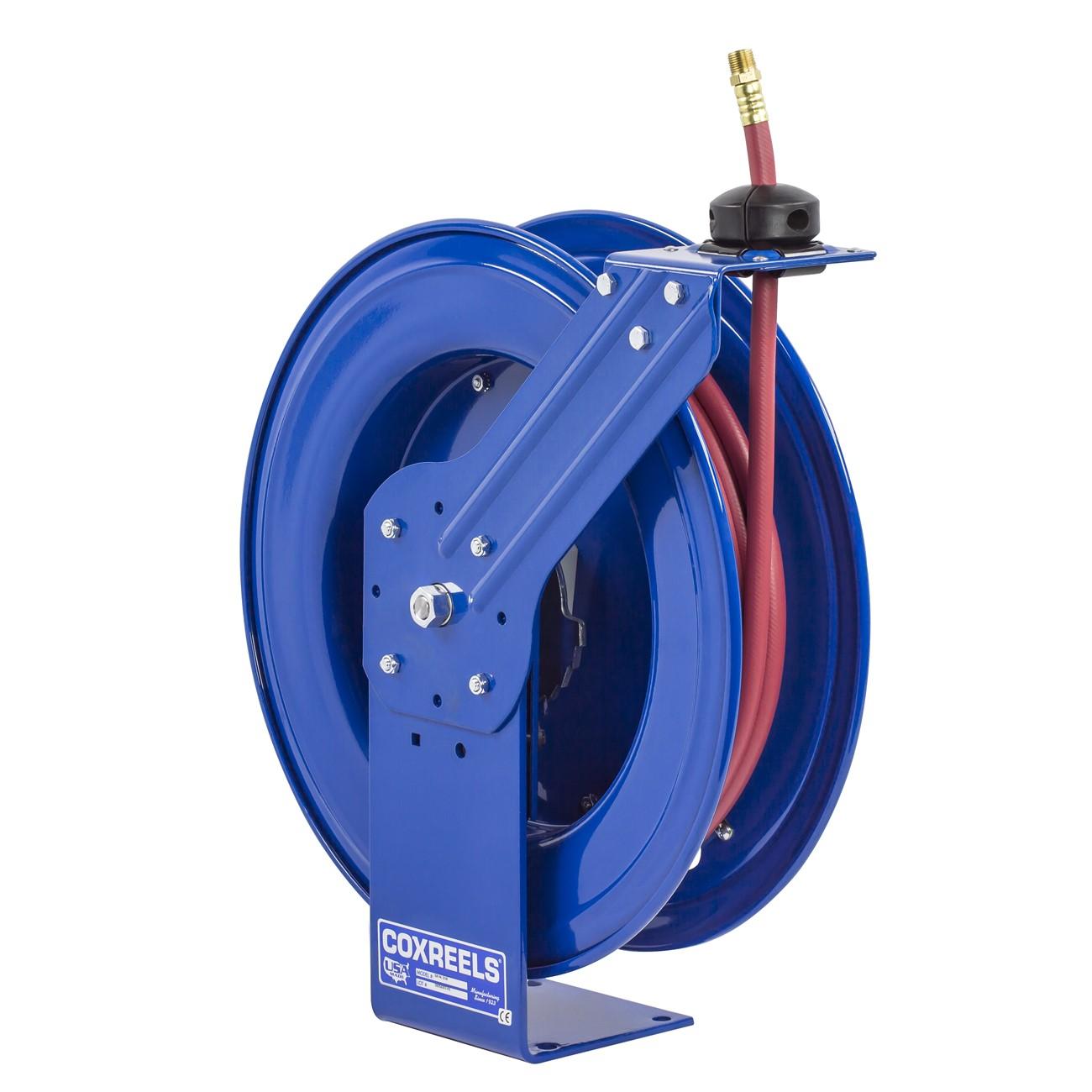

Coxreels SH-N-360 Spring Driven Hose Reel 3/8 in 60 Ft

Product Description

The COXREELS SH-N-360 is a spring-driven hose reel from the SH Series Super Hub line, built for demanding trade and industrial applications. It accepts hose with a 3/8-inch inner diameter and 5/8-inch outer diameter, with a 60-foot hose capacity. The reel features a dual axle Super Hub support system that reduces vibration, increases operational stability, and reinforces the structural integrity of the frame. The larger chassis and frame design compared to standard series reels accommodates longer hose lengths and larger hose diameters. Licensed contractors and service technicians in fluid handling, lubrication, and similar trades rely on this reel for consistent, high-cycle performance.

The SH-N-360 suits professional service environments where spring rewind, hands-free retraction, and secure wall, floor, ceiling, or vehicle mounting are required. Typical installation scenarios include service bays, fleet maintenance facilities, industrial plants, and utility vehicles. The multi-position guide arm adjusts to accommodate different mounting orientations without requiring additional hardware changes. The reel is designed for use with compatible hose assemblies in air, oil, water, and similar non-corrosive fluid service, depending on the hose fitted.

Key Features

• Spring-driven automatic rewind with enclosed, lubricated cartridge-style motor for easy field removal and maintenance
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Dual axle Super Hub support system reduces vibration and increases structural stability during operation
• Solid one-piece steel base and support post with no-weld single pedestal design for maximum stability
• CPC powder coat finish for chip resistance and rust inhibition; adjustable solid rubber hose stop included

Compatibility

Designed as an OEM-style spring-driven hose reel for professional fluid handling systems accepting 3/8-inch ID hose up to 60 feet in length, with a 5/8-inch OD hose profile.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid system components and applicable local codes. Shut off and depressurize the fluid supply line completely before connecting or disconnecting hose or swivel fittings. Verify that the mounting surface and fasteners are rated to support the reel weight and dynamic load during hose extension and retraction. Consult the manufacturer installation guide for guide arm positioning and swivel torque procedures specific to the mounting orientation selected.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Outer Diameter: 5/8 inches
• Hose Capacity: 60 feet
• Drive Type: Spring driven
• Swivel Type: 90-degree full-flow NPT brass swivel
• Base Material: Steel
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 53 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SH-N-360
