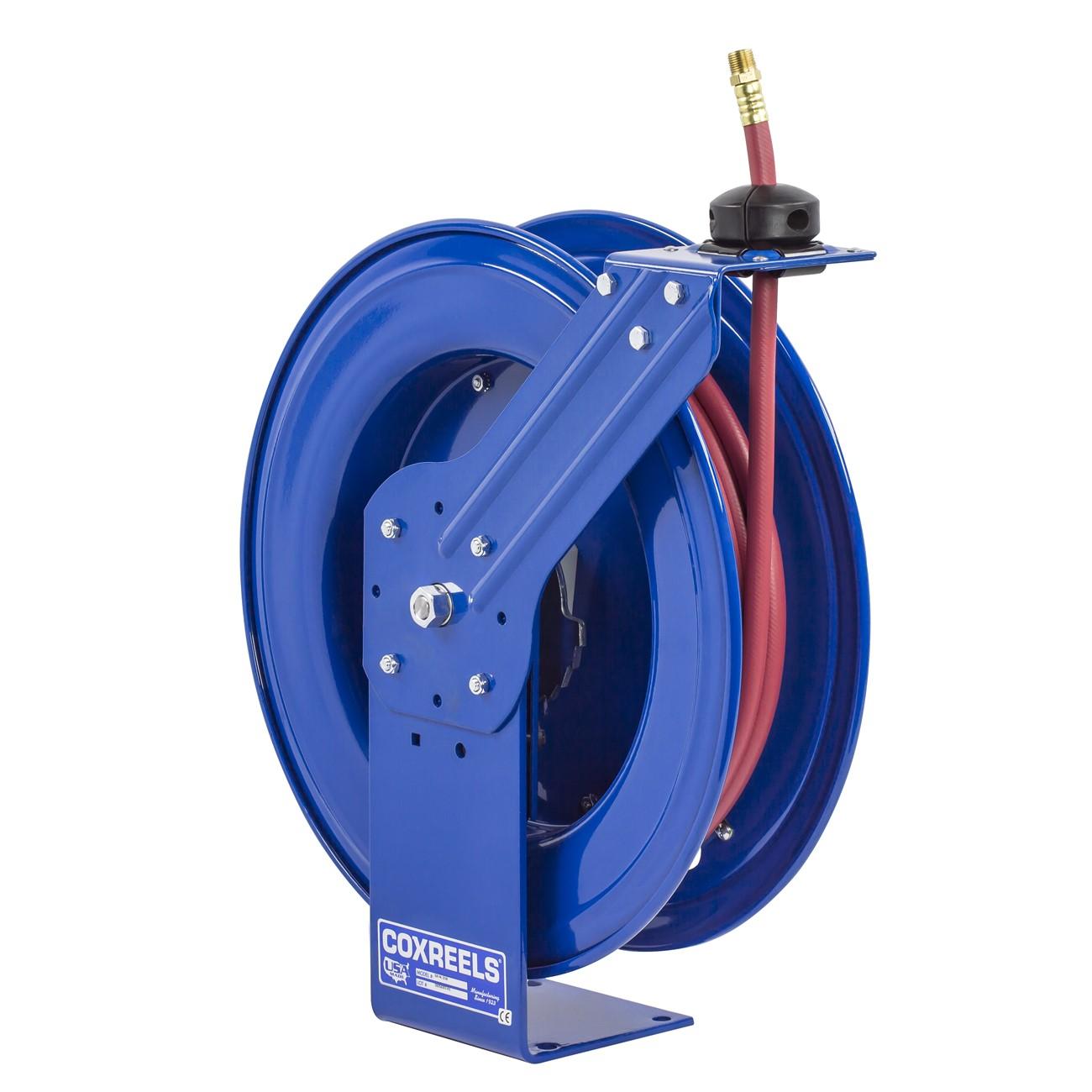

Coxreels SH-N-350 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS SH-N-350 is a spring-driven hose reel from the SH Series, also known as the Super Hub line. It accepts hose with a 3/8 inch inner diameter and 5/8 inch outer diameter, with a 50-foot hose capacity. The reel is built on a larger chassis than the standard P Series, which allows it to handle longer hose lengths and larger hose diameters. A dual axle support system reduces vibration and improves structural stability during operation. Licensed contractors and industrial maintenance professionals install this reel in fixed and mobile service environments.

The SH-N-350 is suited for fluid transfer applications in shop, fleet, and field service settings. The multi-position guide arm adjusts to accommodate wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across residential service bays, commercial facilities, and work vehicles. The spring-driven retraction mechanism returns the hose automatically after use. It is a working reel intended for environments where durability and consistent retraction under repeated daily use are required.

Key Features

• Spring-driven retraction with 50-foot hose capacity for 3/8 inch ID hose
• Dual axle Super Hub support system reduces vibration and increases structural integrity
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance without removing the reel from its mount
• Enclosed cartridge-style motor is lubricated and removable for field maintenance
• Heavy-duty CNC robotically spun ribbed discs with rolled edges protect hose and improve operator safety
• Solid one-piece steel base with single pedestal design requires no welding for maximum stability
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with 3/8 inch ID hose up to 50 feet in length. Consult COXREELS documentation to confirm hose wall thickness, working pressure, and fluid compatibility before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid transfer systems and applicable facility or vehicle mounting requirements. Power down or depressurize the supply line before connecting the inlet swivel. Secure the mounting base to a surface rated for the combined weight of the reel and filled hose. Verify that the guide arm position is set and locked before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 5/8 inch
• Hose Capacity: 50 feet
• Retraction Type: Spring driven
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Material: Steel
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 50 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SH-N-350
