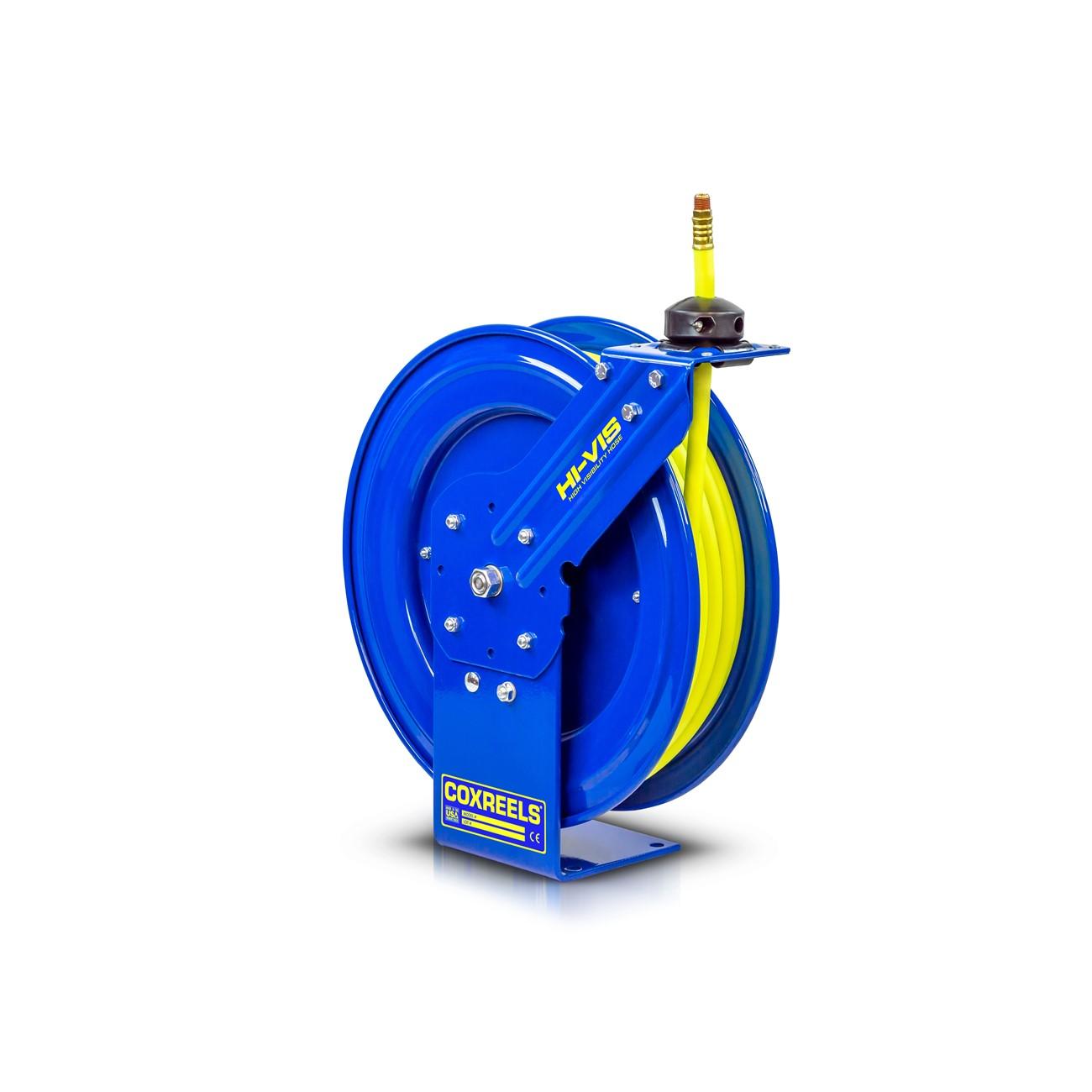

Coxreels SH-N-350-HV Hv Safety Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS SH-N-350-HV is a high-visibility retractable safety hose reel designed for professional shop, fleet, and industrial service environments. The reel feeds a hybrid bright yellow hose with a white glossy stripe, improving situational awareness and reducing trip hazards on busy shop floors. The hose features a 3/8-inch inner diameter and 50-foot length, supported by a heavy-duty CNC robotically spun and ribbed disc assembly with rolled edges. A permanently lubricated, enclosed cartridge-style motor drives controlled retraction. Licensed trades and fleet maintenance technicians are the primary installers for this unit.

The SH-N-350-HV suits residential and commercial service bays, fleet maintenance facilities, and industrial shop environments where hose management and operator safety are priorities. The adjustable guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to fixed shop installations or mobile service vehicle setups. The hybrid PVC-rubber hose blend delivers flexibility and kink resistance across a range of operating temperatures, laying flat when extended to minimize floor-level hazards.

Key Features

• High-visibility hybrid hose in bright yellow with a white glossy stripe for improved safety awareness
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for maintenance without full disassembly
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength and operator safety
• Solid one-piece steel base and support post with no-weld construction and dual axle support hub
• Chip-resistant, rust-inhibiting CPC powder coat finish with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or new installation hose reel for professional shop air and fluid service applications requiring high-visibility safety hose management.

Installation Notes

Installation is typically performed by qualified maintenance technicians or mechanical contractors. Before mounting, shut off the air or fluid supply to the service line and depressurize the system fully. Secure the reel to a structurally adequate mounting surface appropriate for the selected orientation — wall, floor, ceiling, or vehicle — using fasteners rated for the combined weight of the reel and hose under load. Verify all NPT swivel connections are sealed and leak-tested before returning the line to service.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Outer Diameter: 5/8 inches
• Hose Length: 50 feet
• Unit Length: 20.5 inches
• Unit Width: 10.5 inches
• Unit Height: 22 inches
• Weight: 50 pounds
• Base Material: Steel
• Swivel Material: Solid Brass
• Finish: CPC Powder Coat
• Hose Material: Hybrid PVC and Rubber Blend
• Mounting Positions: Wall, Floor, Ceiling, Vehicle

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SH-N-350-HV
