Coxreels SH-N-3100 Spring Driven Hose Reel 3/8 in 100 Ft

Product Description

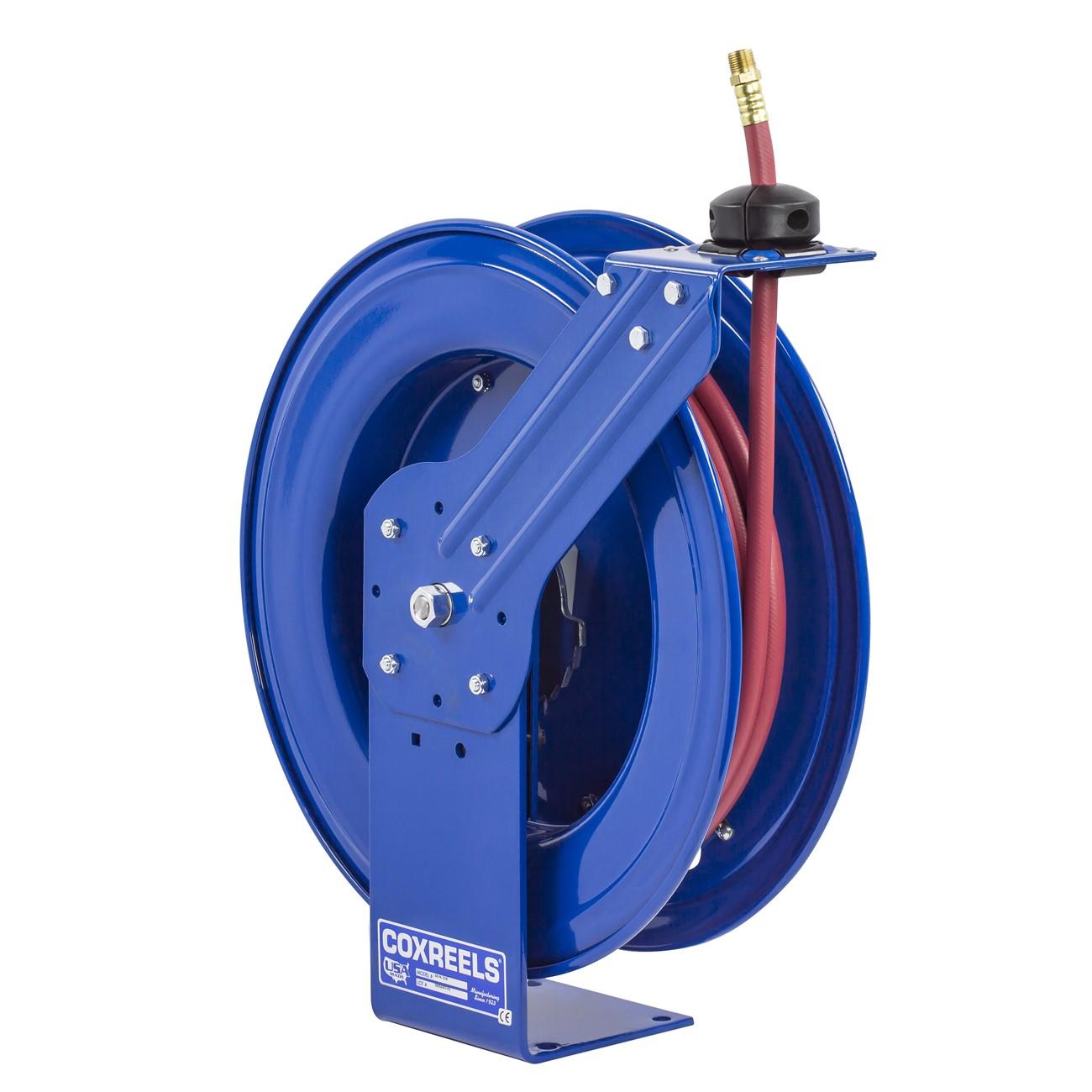

The COXREELS SH-N-3100 is a spring-driven hose reel in the SH Series Super Hub line, built for industrial and commercial service applications where reliable retraction and structural durability are required. The reel accepts 3/8 inch ID, 5/8 inch OD hose up to 100 feet in length. The larger chassis and frame are engineered to handle longer hose lengths and larger hose diameters compared to compact-class reels. A dual-axle Super Hub support system reduces vibration during operation and reinforces the structural integrity of the reel. The unit ships at 71 pounds and measures 25 inches long by 13 inches wide by 27 inches tall. Installation is performed by qualified service technicians in shop, fleet, or fixed facility environments.

The SH-N-3100 is suited for stationary and mobile service setups including wall, floor, ceiling, and vehicle mounting configurations. The multi-position guide arm adjusts to accommodate each of these mounting orientations without requiring specialized hardware changes. Typical applications include fluid dispensing, compressed air delivery, and similar hose-management tasks in automotive service, industrial maintenance, and fleet service environments. The single-pedestal steel base and no-weld construction make it a practical fit for permanent bay installations or vehicle-mounted service rigs.

Key Features

• Spring-driven retraction with cartridge-style motor that is fully enclosed, lubricated, and removable for maintenance without reel dismounting
• Machined solid-brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Dual-axle Super Hub support system reduces operational vibration and increases structural stability
• Solid one-piece steel base with single-pedestal, no-weld design for maximum mounting stability
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed to accept 3/8 inch ID, 5/8 inch OD hose up to 100 feet in length. Intended for use in spring-driven hose reel applications requiring a heavy-duty steel chassis with multi-position mounting capability.

Installation Notes

Mount using the appropriate fasteners for the intended surface type — wall, floor, ceiling, or vehicle — following the load ratings of the mounting structure. Depressurize and disconnect the hose from any fluid or air supply before servicing the swivel, motor cartridge, or hose connections. The guide arm position should be set and locked before the reel is placed into service. Installation should be performed by a qualified technician familiar with the applicable fluid or pneumatic system.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Maximum Hose Length: 100 feet
• Drive Type: Spring driven
• Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 71 pounds
• UPC: 674255729551

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SH-N-3100
