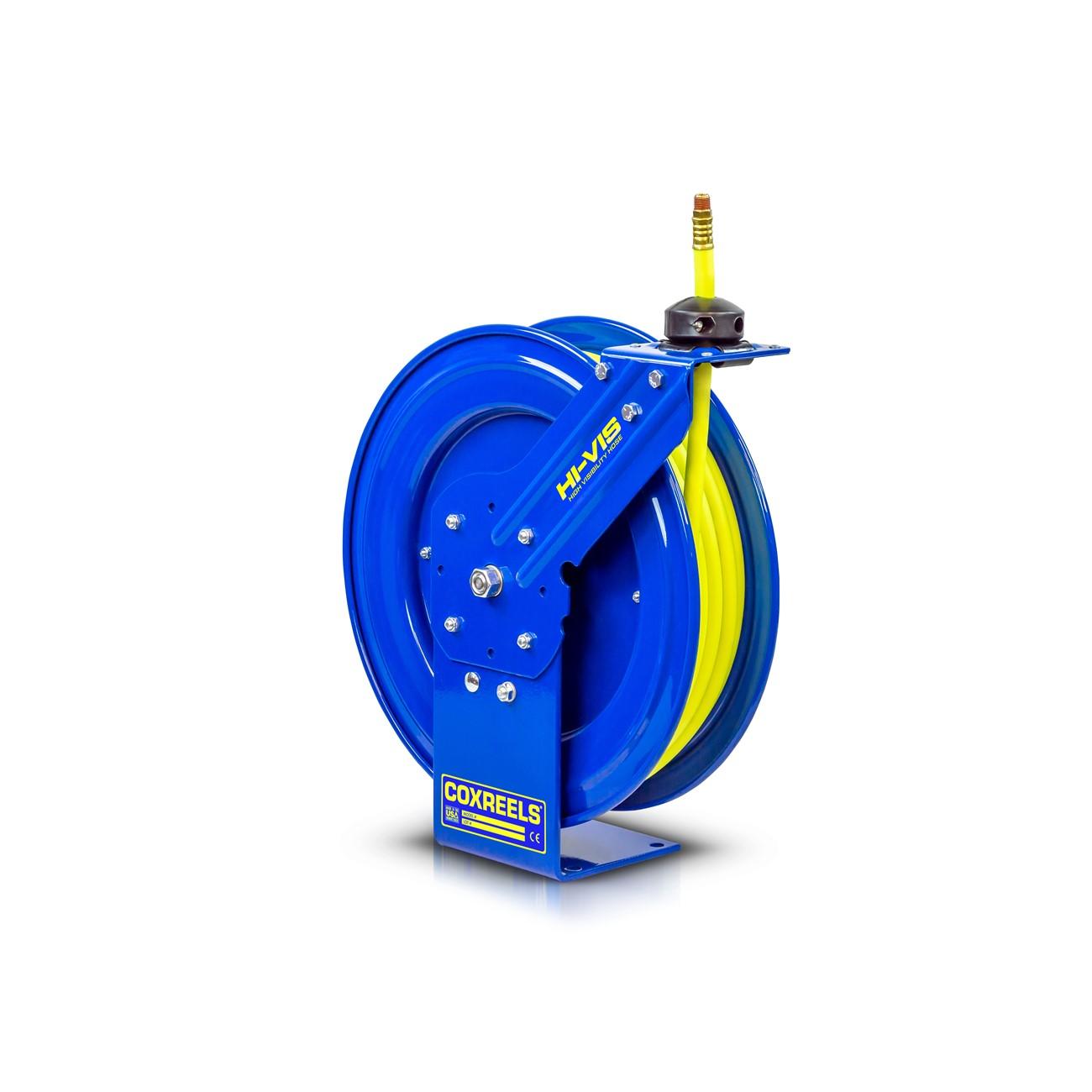

Coxreels SH-N-3100-HV Hv Safety Hose Reel 3/8 in

Product Description

The COXREELS SH-N-3100-HV is a high-visibility safety hose reel built for industrial and commercial service environments where hose awareness and operator safety are a priority. The reel features a bright yellow hybrid hose with a white glossy stripe, CNC robotically spun and ribbed steel discs, and a machined solid brass 90-degree full-flow NPT swivel. A cartridge-style motor is lubricated and fully enclosed for easy removal during maintenance. The one-piece steel base and support post provide a stable, no-weld single-pedestal foundation. Licensed trades and facility service professionals install this unit in demanding shop, fleet, and industrial applications.

This hose reel is suited for commercial and industrial settings including automotive service bays, fleet maintenance facilities, and manufacturing floors. The 3/8-inch inner diameter hose fits standard compressed air and fluid delivery lines. The versatile guide arm adjusts for wall, floor, ceiling, and vehicle mounting positions, making this reel adaptable to a wide range of service configurations. The hybrid PVC-rubber blend hose resists kinking, lays flat to reduce trip hazards, and performs well in low-temperature environments compared to standard rubber hose.

Key Features

• High-visibility hybrid hose with bright yellow jacket and white glossy stripe for improved jobsite awareness
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe and convenient servicing
• One-piece steel base and support post with no-weld construction and dual axle support hub for maximum stability
• CPC powder coat finish is chip resistant and rust inhibiting; guide arm mounts to wall, floor, ceiling, or vehicle

Compatibility

Designed as an OEM-style replacement or direct upgrade for standard 3/8-inch ID hose reel installations in industrial and commercial service environments.

Installation Notes

This reel should be installed by a qualified tradesperson familiar with compressed air or fluid distribution systems. Before mounting or servicing, shut off and depressurize the supply line completely. Secure the base to a structurally sound surface using fasteners appropriate for the mounting substrate. Refer to applicable facility safety codes and the manufacturer installation guide for torque and connection requirements.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Outer Diameter: 5/8 inches
• Swivel Type: Machined solid brass 90-degree full-flow NPT
• Disc Construction: CNC robotically spun and ribbed steel with rolled edges
• Base Material: Steel, one-piece no-weld construction
• Hose Material: Hybrid PVC and rubber blend
• Finish: CPC chip-resistant rust-inhibiting powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 71 pounds
• Sold As: Each
• UPC: 674255752597

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SH-N-3100-HV
