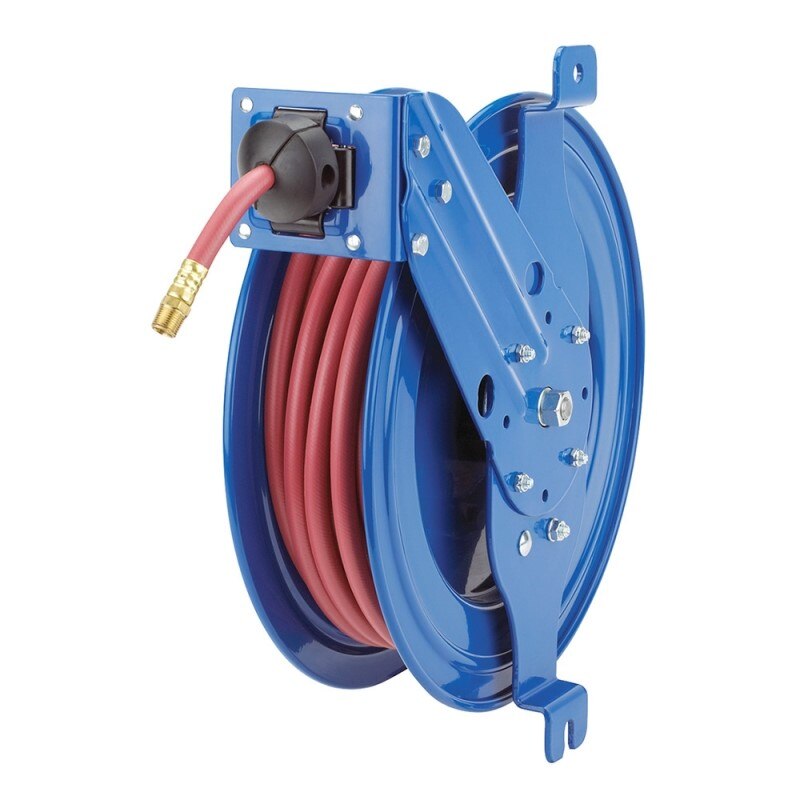

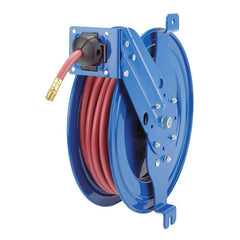

Coxreels SG19L-L450 Spring Driven Side Mount Hose Reel

Product Description

The COXREELS SG19L-L450 is a spring-driven, side-mount hose reel from the SG Series, designed for use with air, water, oil, and grease applications. It accommodates hose with a 1/2-inch inner diameter and handles up to 50 feet of hose. The reel features a machined brass 90-degree full-flow NPT swivel, a cartridge-style spring motor, and heavy-duty CNC robotically spun and ribbed steel discs with rolled edges. A multi-position guide arm with six adjustable positions provides controlled hose payout and retrieval. Licensed HVAC technicians, plumbers, lube technicians, and fleet service professionals routinely specify this reel for fixed and mobile service setups.

The SG19L-L450 is built for tight spaces and high-use environments. Its two-bolt side-mount pattern allows fast installation and removal on any vertical flat surface, making it practical for service vehicles, tool benches, vertical walls, beams, vehicle lift systems, and machine tool stations. The side-mount orientation is well suited for cabinets and enclosed spaces where overhead or end-mount reels are not practical. This reel is appropriate for both temporary deployments and permanent installations across residential service, commercial, and light industrial settings.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style spring motor is removable for maintenance without full disassembly
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Six-position adjustable guide arm and roller assembly for maximum hose control in confined or variable routing scenarios
• Two-bolt side-mount pattern supports quick installation and detachment on any vertical flat surface
• CPC powder coat finish is chip resistant and rust inhibiting; precision bearings are permanently lubricated

Compatibility

Designed as an OEM-style side-mount spring-driven hose reel for air, water, oil, and grease service lines with 1/2-inch ID hose up to 50 feet in length.

Installation Notes

Installation is typically performed by a qualified service technician or mechanic. Before mounting or servicing, depressurize the connected hose line and verify the supply line is shut off at the source. The two-bolt side-mount pattern requires a flat vertical surface capable of supporting the loaded weight of the reel and hose. Follow applicable local codes and the manufacturer instructions for securing fluid-handling equipment to service vehicles or fixed structures.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Length Capacity: 50 feet
• Swivel Type: Machined brass 90-degree full-flow NPT
• Spring Motor: Enclosed cartridge-style, lubricated
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Mounting Style: Side mount, two-bolt vertical flat surface
• Guide Arm Positions: 6 adjustable positions
• Finish: CPC powder coat, chip and rust resistant
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 44 pounds
• Material: Steel

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SG19L-L450
