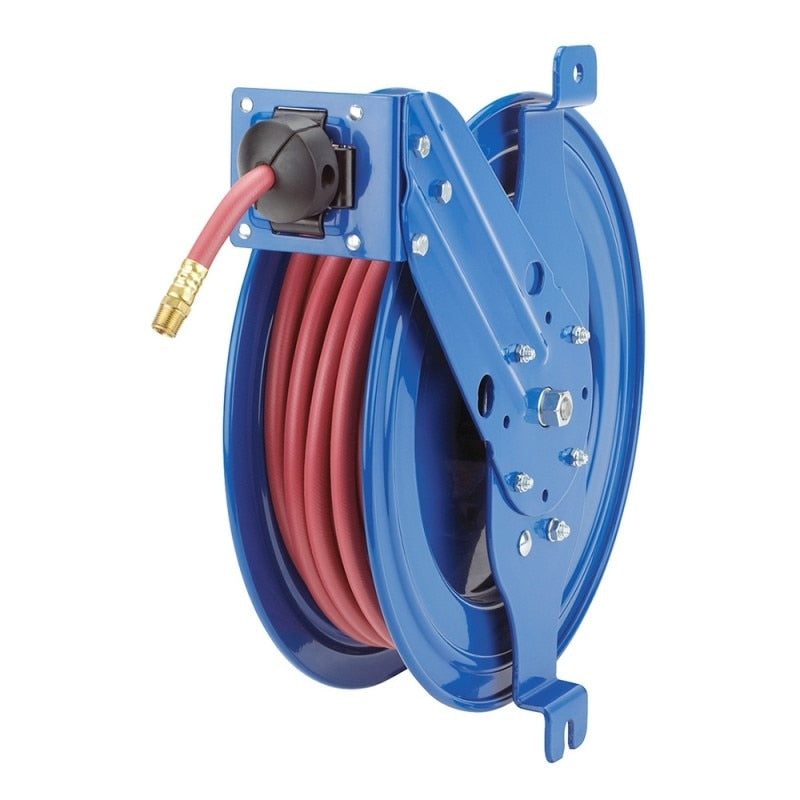

Coxreels SG19-M450 Spring Driven Hose Reel Side Mount

Product Description

The COXREELS SG19-M450 is a spring-driven hose reel from the SG Series, built for demanding trade applications where consistent hose retraction and tight-space installation are priorities. Constructed with heavy-duty CNC robotically spun steel discs and a side-mount design, this reel fits on any vertical flat surface using a simple two-bolt mounting pattern. Compatible with air, water, oil, and grease hose applications, it accepts a 1/2 inch inner diameter hose up to 50 feet in length. A machined solid brass 90-degree full-flow NPT swivel enables hose installation and seal maintenance without removing the reel from its mount. At 65 pounds, this is a robust unit suited for permanent or temporary installation by qualified service technicians.

The SG19-M450 is designed for use in environments where space is limited and reliable hose management is essential. Typical installation locations include service vehicles, tool benches, vertical walls, beams, vehicle lift systems, and machine tool stations. The adjustable six-position guide arm and roller assembly allow the technician to optimize hose routing for the specific work area. This reel handles air, water, oil, and grease lines, making it a practical single-solution choice for shops and mobile service operations running multiple fluid or pneumatic circuits.

Key Features

• Spring-driven retraction for automatic hose recovery without manual recoiling
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• Enclosed, lubricated cartridge-style motor is removable for maintenance without full disassembly
• Six-position adjustable guide arm and roller assembly for precise hose control in tight or complex layouts
• CPC powder coat finish resists chips, rust, and corrosion for long service life
• Two-bolt side-mount pattern supports quick installation and removal on vertical flat surfaces

Compatibility

Designed for use with 1/2 inch inner diameter hose up to 50 feet in air, water, oil, and grease service applications. Suitable for installation on service vehicles, tool benches, vertical walls, beams, vehicle lift systems, and machine tool stations.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid and pneumatic system service. Depressurize and disconnect the supply line before mounting or servicing the reel. The two-bolt mounting pattern requires a stable vertical flat surface capable of supporting the reel weight and hose load. Reposition the guide arm using a standard open-end wrench before pressurizing the system.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 13/16 inch
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Mount Style: Side mount, 2-bolt pattern, vertical flat surface
• Guide Arm Positions: 6 adjustable positions
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Disc Construction: CNC robotically spun and ribbed steel with rolled edges
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 65 pounds
• Material: Steel
• UPC: 674255741645

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SG19-M450
