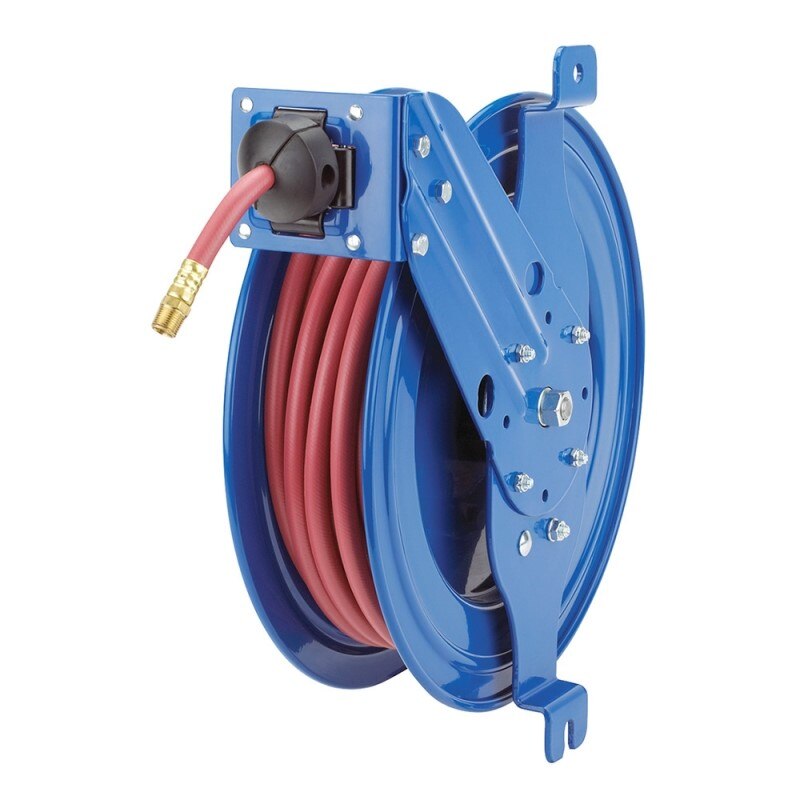

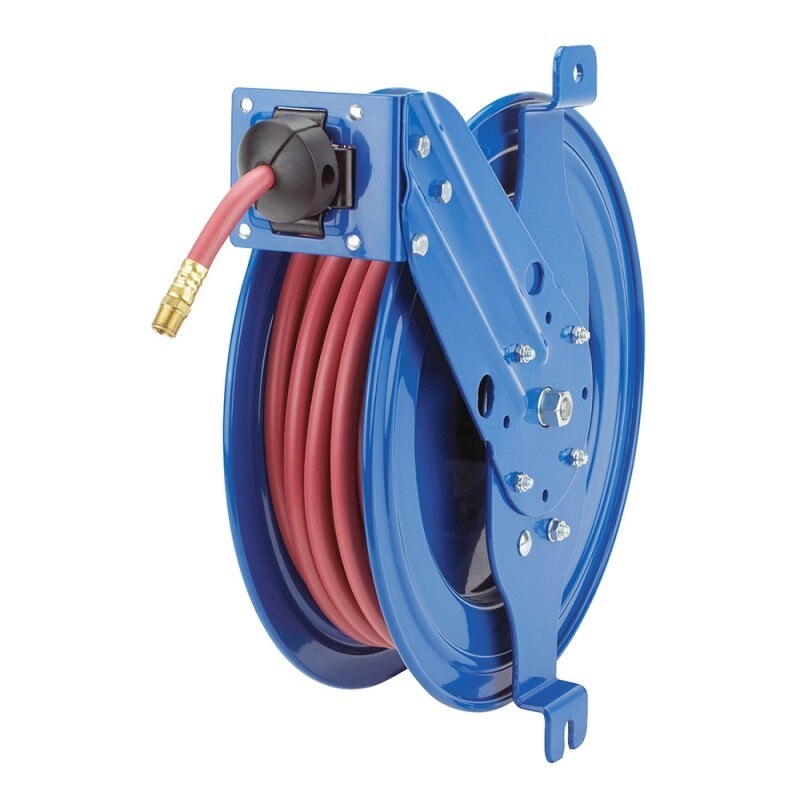

Coxreels SG19-M350 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS SG19-M350 is a spring-driven, side-mount hose reel from the SG Series, designed for dispensing air, water, oil, or grease hose in demanding service environments. Built around CNC robotically spun and ribbed steel discs with rolled edges, this reel delivers structural durability and hose protection in a compact footprint. The brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount. A cartridge-style motor is fully enclosed and lubricated for long service life, and a CPC powder coat finish resists chipping and rust. Licensed trades including service technicians and fluid-system mechanics rely on this reel for consistent, controlled hose payout in confined or vertical installations.

The SG19-M350 is suited for residential and commercial service applications where space is limited. Common installation locations include service vehicles, tool benches, vertical walls and beams, vehicle lift systems, and machine tool stations. The two-bolt mounting pattern allows fast attachment and detachment on any vertical flat surface, making it equally practical for permanent shop installations and temporary field setups. The adjustable six-position guide arm and roller assembly give the installer maximum control over hose routing and retrieval angle. This reel handles air, water, oil, and grease service lines with a 3/8 inch ID and 50 foot hose length.

Key Features

• Brass 90-degree full-flow NPT swivel machined from solid brass — seal maintenance and hose changes without dismounting the reel
• Enclosed, lubricated cartridge-style motor is removable for safe field maintenance
• CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Two-bolt side-mount pattern for vertical flat surfaces, cabinets, or enclosed spaces — supports temporary or permanent installation
• Six-position adjustable guide arm and roller assembly for precise hose control and retrieval angle
• CPC powder coat finish resists chipping and rust; permanently lubricated precision bearings reduce maintenance intervals

Compatibility

Designed as an OEM-style spring-driven hose reel for air, water, oil, and grease service lines with 3/8 inch ID hose in both commercial and mobile service applications.

Installation Notes

Installation is typically performed by a qualified service technician or fluid-system mechanic. Depressurize and drain all lines before mounting or connecting hose. Secure the reel to a structurally rated vertical flat surface using the two-bolt mounting pattern and appropriate fasteners for the substrate. Verify that the guide arm position and hose routing comply with any applicable facility or vehicle safety standards before returning the system to service.

Technical Specifications

• Hose Inside Diameter: 3/8 inches
• Hose Outside Diameter: 11/16 inches
• Hose Length: 50 feet
• Drive Type: Spring driven
• Mount Style: Side mount, vertical flat surface
• Mounting Pattern: 2-bolt
• Guide Arm Positions: 6 adjustable positions
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Finish: CPC powder coat, chip and rust resistant
• Compatible Media: Air, water, oil, grease
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 63 pounds
• Material: Steel
• UPC: 674255741638

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SG19-M350
