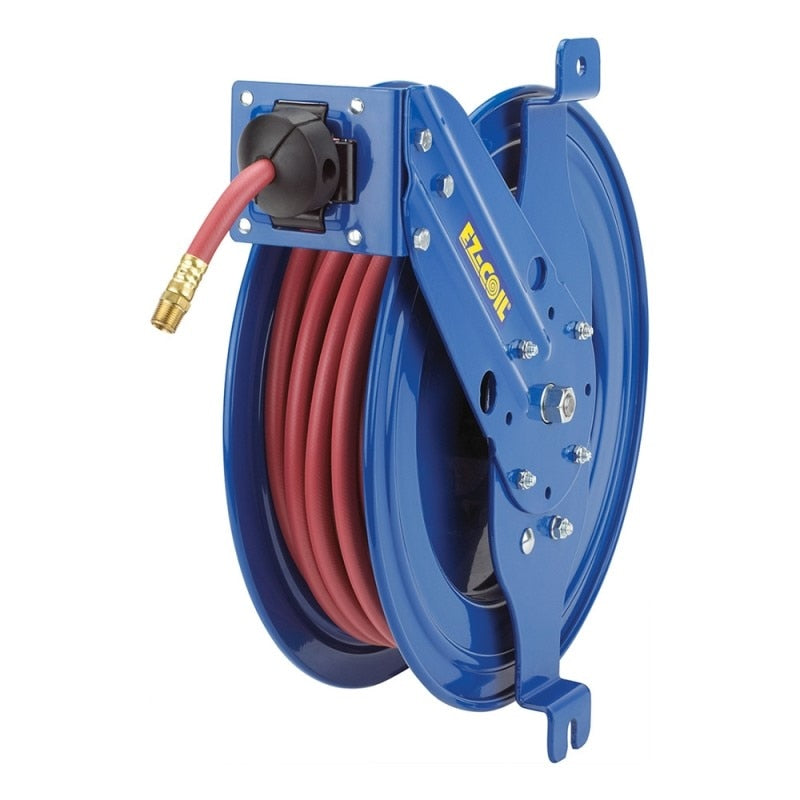

Coxreels SG17L-H125 Side Mount Hose Reel 25 Ft

Product Description

The COXREELS SG17L-H125 is a side-mount, spring-driven hose reel from the SG Series, designed for controlled hose management in demanding service environments. It features a 1/4 inch inner diameter hose path and accommodates up to 25 feet of hose. The reel mounts to any vertical flat surface using a simple two-bolt pattern, making it easy to install or remove as needed. A machined brass 90-degree full-flow NPT swivel allows hose replacement without pulling the reel from its mount. Built for air, water, oil, and grease service, this unit is suited for installation by service technicians in commercial or industrial settings.

The SG17L-H125 is well suited for service vehicles, tool benches, vertical walls and beams, vehicle lift systems, and machine tool stations. Its compact side-mount footprint makes it a practical choice for tight spaces where conventional reel orientations are not viable. The multi-position guide arm can be repositioned to six different locations using a standard open-end wrench, giving technicians flexible hose routing control at the point of use. This versatility makes the SG Series a common choice across automotive service bays, fleet maintenance facilities, and general industrial shops.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel allows hose changes without removing the reel from its mount
• Enclosed cartridge-style spring motor is pre-lubricated and fully removable for field maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for structural strength and hose protection
• Two-bolt side-mount pattern supports temporary or permanent installation on any vertical flat surface
• Six-position adjustable guide arm and roller assembly for maximum hose routing control
• CPC powder coat finish resists chipping, rust, and corrosion; precision bearings are permanently lubricated

Compatibility

Designed for use with air, water, oil, and grease hose applications within the COXREELS SG Series platform; compatible with hose having a 1/4 inch inner diameter and 1/2 inch outer diameter up to 25 feet in length.

Installation Notes

Installation is typically performed by a qualified service technician or maintenance professional. Before mounting or performing any maintenance, depressurize the hose line and relieve spring tension per safe handling procedures. The two-bolt mounting pattern requires a flat vertical surface capable of supporting the reel and hose load, including the 39-pound reel weight. Refer to applicable OSHA and facility safety guidelines when installing on service vehicles or elevated structures.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Outer Diameter: 1/2 inch
• Hose Capacity: 25 feet
• Drive Type: Spring driven
• Mount Style: Side mount, vertical flat surface
• Swivel Material: Solid brass, 90-degree NPT full-flow
• Guide Arm Positions: 6
• Finish: CPC powder coat
• Weight: 39 pounds
• UPC: 674255733862

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SG17L-H125
