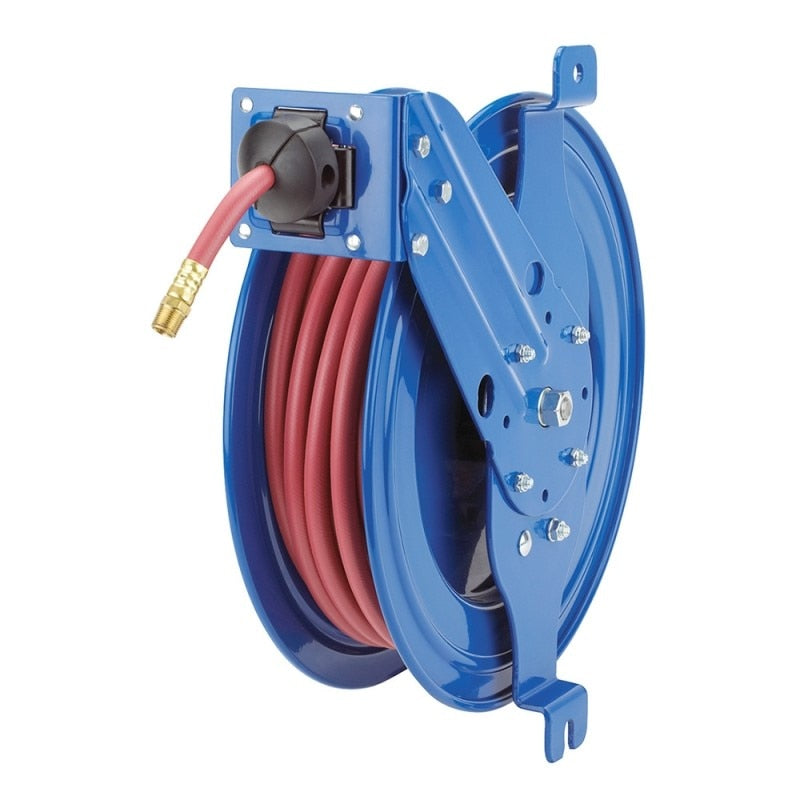

Coxreels SG17-M325 Spring Driven Hose Reel 25 Ft

Product Description

The COXREELS SG17-M325 is a spring-driven, side-mount hose reel designed for use with air, water, oil, and grease hose applications. Part of the SG Series, this reel accepts hose with a 3/8 inch ID and 11/16 inch OD up to 25 feet in length. It features a machined solid brass 90-degree full-flow NPT swivel, a removable cartridge-style motor, and heavy-duty CNC robotically spun steel discs with rolled edges. Licensed plumbers, mechanics, and industrial service technicians use this reel to manage hose in tight or enclosed workspaces where reliable retraction and secure hose control are essential.

The SG17-M325 is built for demanding service environments including service vehicles, tool benches, vertical walls, beams, vehicle lift systems, and machine tool stations. Its two-bolt side-mount pattern allows installation on any vertical flat surface, making it equally suited to permanent shop fixtures or temporary field setups. The adjustable six-position guide arm and roller assembly allow the operator to direct hose routing based on layout constraints, improving workflow efficiency without modifying the reel or its mount.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Enclosed and lubricated cartridge-style motor is removable for maintenance without full disassembly
• CNC robotically spun and ribbed steel discs with rolled edges for structural strength and hose protection
• Two-bolt side-mount pattern for fast installation or detachment on vertical flat surfaces, cabinets, or enclosed spaces
• Six-position adjustable guide arm and roller assembly for controlled hose direction in confined layouts
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life in shop and mobile environments
• Permanently lubricated precision bearings and adjustable solid rubber hose stop included

Compatibility

Designed as an OEM-style replacement and direct-fit reel for air, water, oil, and grease hose assemblies with 3/8 inch ID hose in service vehicle, shop, and industrial machine tool installations.

Installation Notes

Installation is performed by qualified mechanics or maintenance technicians. Before mounting or servicing, relieve all pressure in the hose and connected system and ensure the fluid supply is shut off. Secure the reel to a structurally sound vertical flat surface using the two-bolt mounting pattern and hardware rated for the reel weight. Position the guide arm before pressurizing the system, and verify all swivel and hose connections are leak-free at operating pressure before returning the reel to service.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 11/16 inch
• Hose Length: 25 feet
• Media Compatibility: Air, water, oil, grease
• Swivel Type: Solid brass 90-degree full-flow NPT
• Disc Material: Steel (CNC spun, ribbed with rolled edges)
• Finish: CPC powder coat (chip-resistant, rust-inhibiting)
• Mounting Style: Side mount, 2-bolt vertical flat surface pattern
• Guide Arm Positions: 6 adjustable positions
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 46 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SG17-M325
