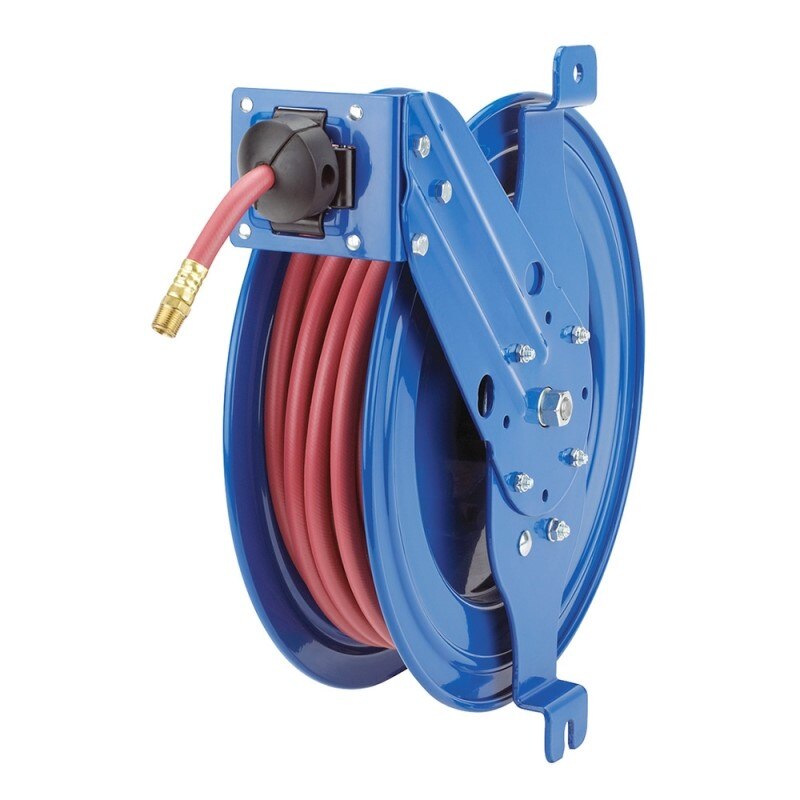

Coxreels SG17-H325 Spring Driven Hose Reel 3/8 in 25 Ft

Product Description

The COXREELS SG17-H325 is a spring-driven, side-mount hose reel from the SG Series, designed for controlled hose retraction in demanding trade and service environments. Built for air, water, oil, and grease applications, it accepts hose with a 3/8 inch inner diameter and accommodates up to 25 feet of hose. The reel features CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety. A machined solid brass 90-degree full-flow NPT swivel simplifies seal maintenance and hose installation without removing the reel from its mount. Licensed HVAC technicians, fleet mechanics, and shop service professionals rely on this reel for consistent, hands-free hose management.

The SG17-H325 is suited for service vehicles, tool benches, vertical walls, beams, vehicle lift systems, and machine tool stations. Its two-bolt mounting pattern allows fast installation and removal on any vertical flat surface, making it practical for both permanent shop installations and temporary service setups. The adjustable six-position guide arm and roller assembly provide maximum hose control in tight or confined spaces. This reel is sold individually.

Key Features

• Spring-driven retraction keeps hose under consistent tension without manual rewinding
• Six-position adjustable guide arm and roller assembly for precise hose routing and control
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• Lubricated, enclosed cartridge-style motor is removable for safe maintenance
• CNC robotically spun and ribbed steel discs with rolled edges for durability and hose protection
• CPC powder coat finish resists chips and rust for long service life
• Two-bolt side-mount pattern supports vertical flat surfaces, cabinets, and enclosed spaces

Compatibility

Designed for use with 3/8 inch inner diameter hose up to 25 feet in length carrying air, water, oil, or grease media. Part of the COXREELS SG Series side-mount spring-driven reel family.

Installation Notes

Installation is performed by qualified mechanics or service technicians using standard hand tools. Mount to a vertical flat surface using the two-bolt pattern, ensuring the mounting surface can support the loaded weight of the reel and hose. Depressurize and disconnect the supply line before servicing the swivel, motor cartridge, or guide arm. Follow applicable shop safety and compressed-air system codes during installation and maintenance.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Length Capacity: 25 feet
• Hose Outer Diameter: 11/16 inch
• Drive Type: Spring driven
• Mount Type: Side mount, vertical flat surface
• Guide Arm Positions: 6
• Swivel Material: Solid brass
• Disc Material: Steel
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 46 pounds
• Sold As: Each
• UPC: 674255741546

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SG17-H325
