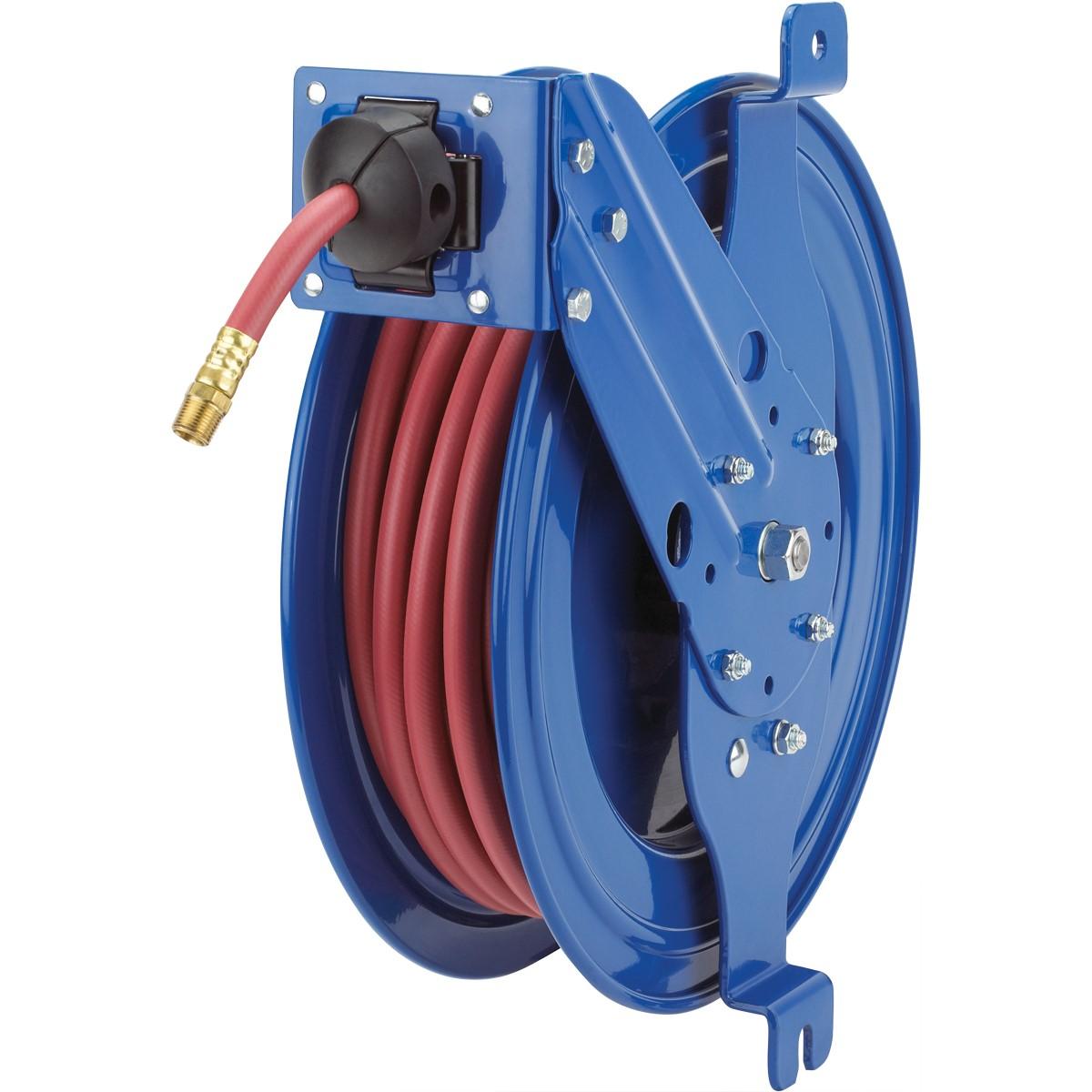

Coxreels SG17-H125 Spring Driven Hose Reel 25 Ft

Product Description

The COXREELS SG17-H125 is a spring-driven, side-mount hose reel designed for use with air, water, oil, and grease lines in demanding trade environments. Part of the COXREELS SG Series, this reel accepts 1/4 inch ID hose up to 25 feet in length and mounts to any vertical flat surface using a simple two-bolt pattern. The unit weighs 45 pounds and measures 17.5 inches long, 8.5 inches wide, and 19.25 inches tall. It is built with CNC robotically spun and ribbed steel discs and features a CPC powder coat finish that resists chipping and rust. HVAC technicians, fleet mechanics, and general service professionals typically install this reel in tight or enclosed service spaces.

The SG17-H125 fits a wide range of service applications where space is limited and organized hose management is essential. Common installations include service vehicles, tool benches, vertical walls, beams, vehicle lift systems, and machine tool stations. The two-bolt side-mount design allows the reel to be installed permanently or detached quickly for temporary setups. The six-position adjustable guide arm and roller assembly give the installer flexibility to direct hose routing based on the specific layout of the workspace.

Key Features

• Spring-driven retraction for automatic hose retrieval without manual rewinding
• Six-position adjustable guide arm and roller assembly for versatile hose control in tight spaces
• Two-bolt side-mount pattern mounts and detaches quickly from any vertical flat surface
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Lubricated, enclosed cartridge-style motor is fully removable for safe routine maintenance
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• CPC powder coat finish resists chips, rust, and corrosion for long service life

Compatibility

Designed as an OEM-style side-mount spring-driven hose reel for air, water, oil, and grease service lines with 1/4 inch ID hose up to 25 feet in length. Part of the COXREELS SG Series platform.

Installation Notes

Installation is typically performed by a qualified mechanic or service technician. Power down or depressurize the associated fluid or air system completely before connecting or disconnecting hose. The two-bolt mounting pattern requires a standard wrench; secure mounting to a structural vertical surface rated for the combined weight of the reel, hose, and fluid load. Reposition the guide arm using a standard wrench before final mounting to confirm the desired hose-exit direction.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Hose Length: 25 feet
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 45 pounds
• Material: Steel
• Mounting Pattern: 2-bolt side mount, vertical flat surface
• Swivel Material: Solid brass
• Finish: CPC powder coat

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SG17-H125
