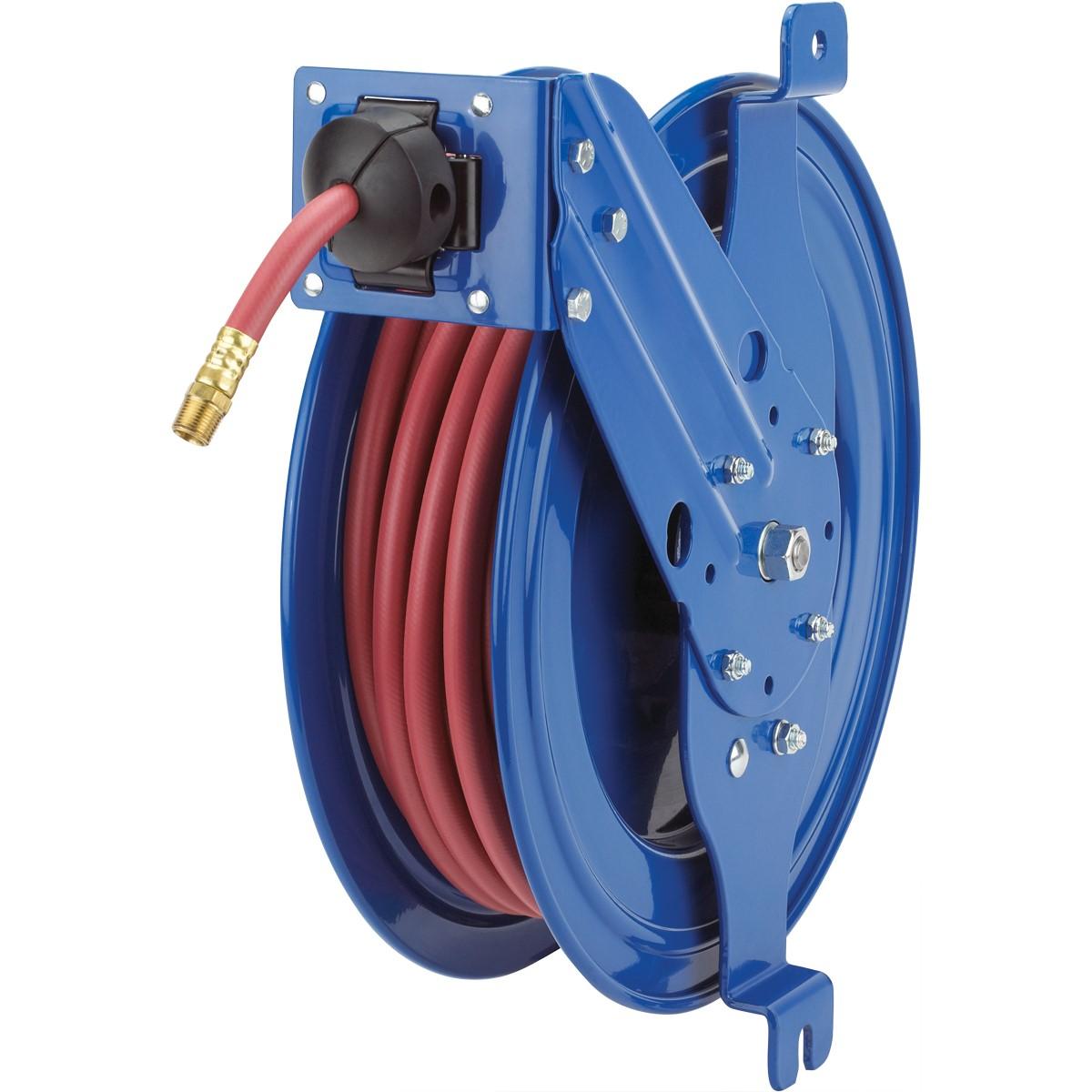

Coxreels SG13-L325 Spring Driven Hose Reel 25 Ft Steel

Product Description

The COXREELS SG13-L325 is a spring-driven hose reel designed for controlled hose retraction in demanding trade and service environments. Built with heavy-duty CNC robotically spun and ribbed steel discs, this reel handles air, water, oil, and grease applications. It features a multi-position guide arm and roller assembly that adjusts to six positions for precise hose routing. A machined solid brass 90-degree full-flow NPT swivel allows hose connection and seal maintenance without removing the reel from its mount. At 26 pounds and measuring 14.5 inches long by 6.75 inches wide by 16 inches tall, it is compact enough for tight installations while built to handle heavy daily use.

The SG13-L325 suits service vehicles, tool benches, vertical walls, beams, vehicle lift systems, and machine tool stations. The side-mount two-bolt pattern allows fast installation and removal on any vertical flat surface, making it practical for both permanent and temporary setups. It accommodates 3/8 inch ID hose up to 25 feet in length, covering the reach requirements of most mobile service and shop applications. Technicians working in confined bays or on service trucks will find the compact footprint and adjustable guide arm particularly useful.

Key Features

• Spring-driven retraction for hands-free hose management in service and shop environments
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without dismounting the reel
• Lubricated, enclosed cartridge-style motor is removable for maintenance without full disassembly
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Adjustable guide arm and roller assembly moves to six positions for maximum hose control in tight spaces
• CPC powder coat finish provides chip resistance and rust inhibition for long service life

Compatibility

Designed as an OEM-style replacement or direct-fit unit for spring-driven side-mount hose reel applications handling air, water, oil, or grease service lines with 3/8 inch ID hose.

Installation Notes

Installation is performed by qualified technicians or mechanics using standard hand tools. Mount to any vertical flat surface using the two-bolt pattern, ensuring the mounting surface can support the loaded weight of the reel and hose. Depressurize and disconnect the hose line before servicing the swivel, motor cartridge, or guide arm. Confirm NPT thread compatibility at the swivel connection before final installation.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Outer Diameter: 5/8 inches
• Hose Length: 25 feet
• Drive Type: Spring driven
• Guide Arm Positions: 6
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Disc Construction: CNC robotically spun and ribbed steel with rolled edges
• Finish: CPC powder coat
• Mount Style: Side mount, 2-bolt vertical flat surface pattern
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 26 pounds
• Material: Steel

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SG13-L325
