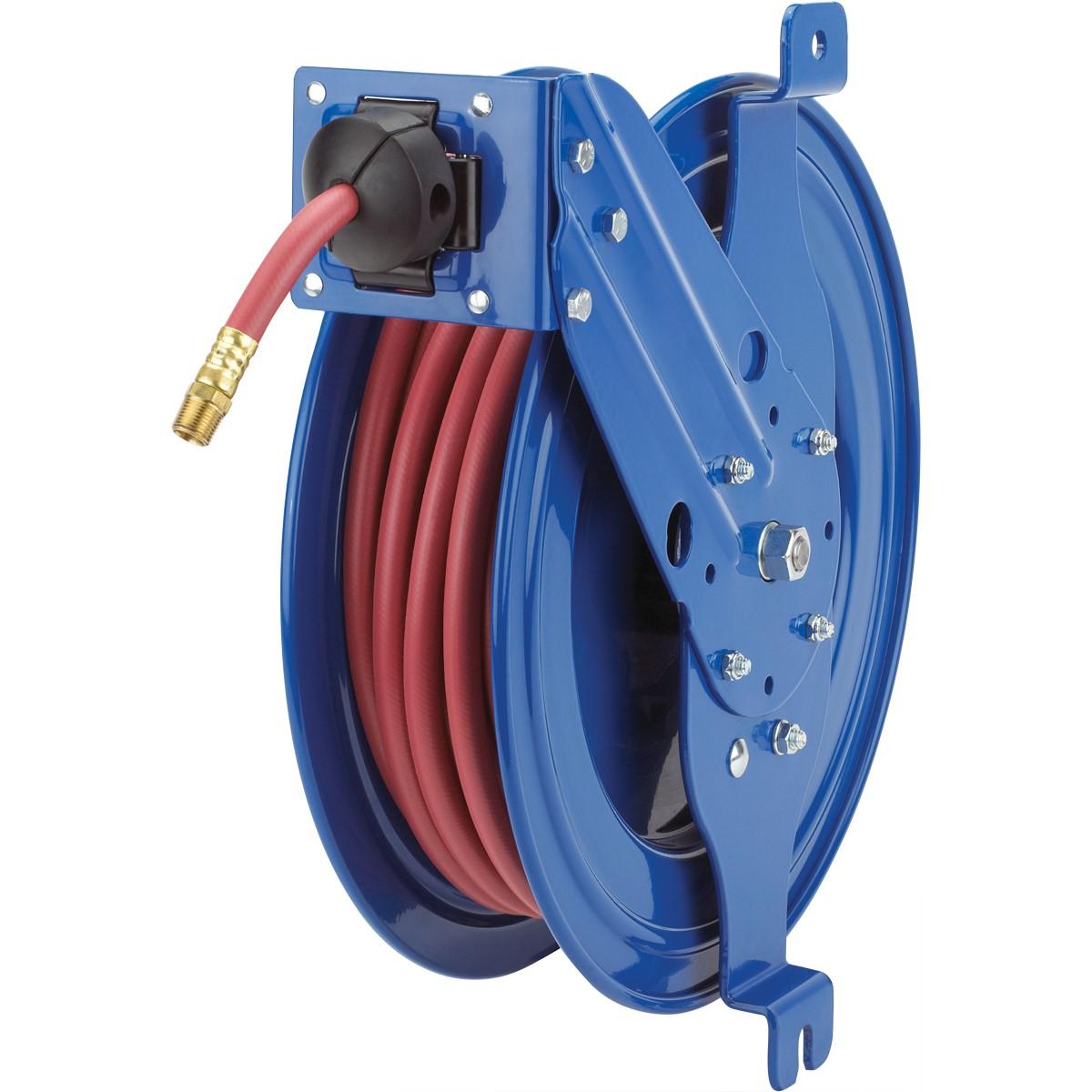

Coxreels SG13-L125 Spring Driven Hose Reel 25 Ft

Product Description

The COXREELS SG13-L125 is a spring-driven hose reel from the SG Series, designed for controlled hose retraction in demanding service environments. Built with CNC robotically spun steel discs and a side-mount configuration, this reel accommodates hoses with a 1/4 inch inner diameter and handles a 25-foot hose length. A cartridge-style spring motor drives automatic retraction, reducing wear and keeping hose off the floor. The unit ships at 25 pounds and measures 14.5 inches long, 6.75 inches wide, and 16 inches tall. Licensed HVAC and mechanical service technicians, plumbers, and fleet shop technicians are the primary installers.

The SG13-L125 is suited for air, water, oil, and grease hose applications in tight or enclosed spaces. Its two-bolt side-mount pattern allows fast attachment to and removal from vertical flat surfaces, making it a practical fit for service vehicles, tool benches, wall mounts, beams, vehicle lift systems, and machine tool stations. The multi-position guide arm relocates to six different positions using a standard wrench, allowing the hose exit angle to match the workspace layout without removing the reel from its mount.

Key Features

• Spring-driven cartridge motor is enclosed, lubricated, and removable for maintenance without reel removal
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service in place
• CNC robotically spun, ribbed steel discs with rolled edges provide strength and hose protection
• Six-position adjustable guide arm and roller assembly deliver precise hose routing control
• Two-bolt side-mount pattern installs on any vertical flat surface for temporary or permanent use
• CPC powder coat finish resists chips and rust; permanently lubricated precision bearings throughout

Compatibility

Designed for use with air, water, oil, and grease hose lines with a 1/4 inch inner diameter and up to 25 feet in length. Part of the COXREELS SG Series side-mount spring-driven reel family.

Installation Notes

Installation is typically performed by a licensed mechanic, fleet technician, or plumbing professional. Shut off the supply line and relieve all hose pressure before mounting or servicing the reel. Secure the reel to a structurally adequate vertical flat surface using both mounting bolts; do not operate with a single-bolt mount. Verify the NPT swivel connections are thread-sealed and leak-tested before returning the line to service.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Length: 25 feet
• Application Media: Air, water, oil, grease
• Drive Type: Spring driven
• Mount Style: Side mount, 2-bolt vertical flat surface
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Disc Construction: CNC spun ribbed steel with rolled edges
• Finish: CPC powder coat
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 25 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SG13-L125
