Coxreels SDL-100 Static Discharge Cable Reel 100 Ft

Product Description

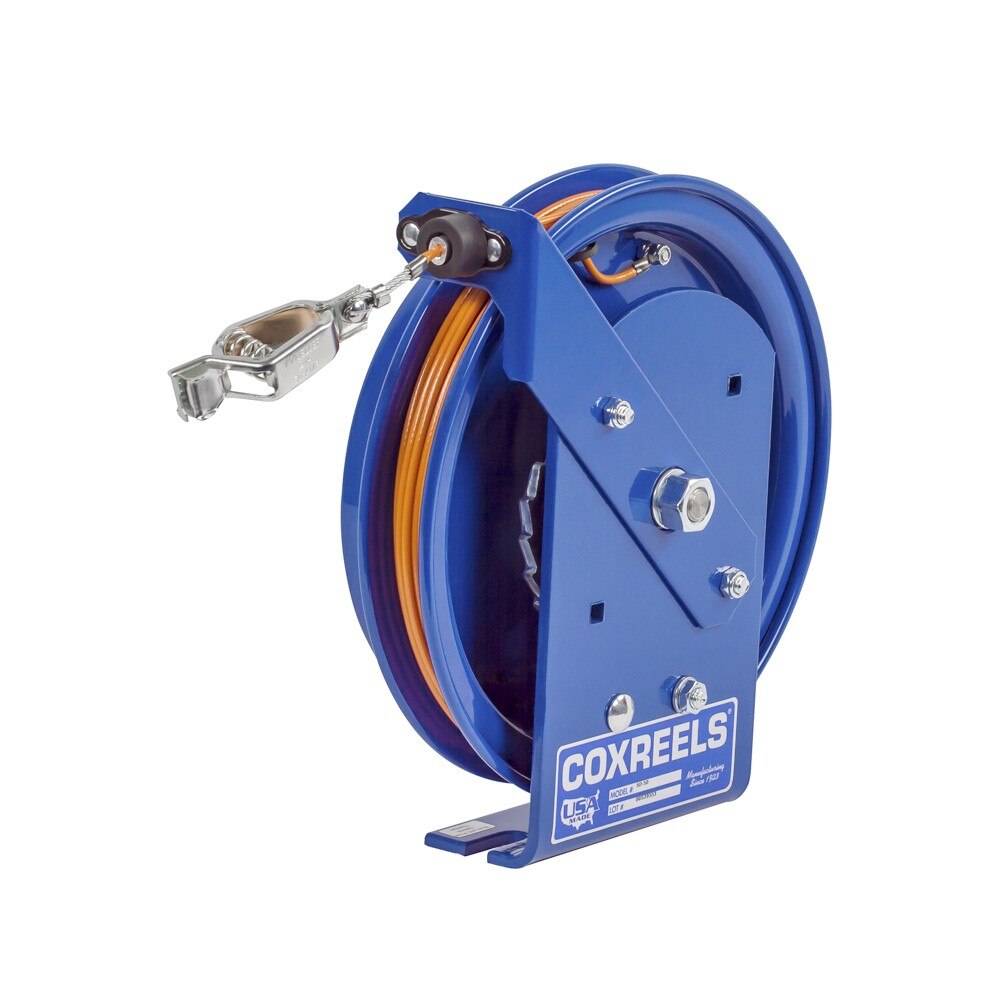

The COXREELS SDL-100 is a static discharge grounding cable reel built for use in combustible and hazardous environments where uncontrolled static buildup poses an ignition risk. Part of the COXREELS SD Series, this reel uses a spring-drive retraction mechanism and carries 100 feet of 7-strand by 7-wire galvanized steel cable with a high-visibility orange vinyl cover. The unit weighs 28 pounds and measures 14.5 inches long, 6.75 inches wide, and 16 inches tall. It is designed for professional installation in fuel handling, chemical dispensing, and industrial settings where grounding reels are required by safety protocol.

The SDL-100 is used in industrial and commercial environments where flammable liquids or vapors are present. It is commonly paired with fuel hose reels to provide a dedicated grounding point before and during dispensing operations. Typical installation locations include fueling stations, fleet maintenance facilities, chemical plants, and tank farms. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a wide range of field layouts.

Key Features

• Spring-drive retraction with lubricated, enclosed cartridge-style motor that is removable for maintenance without full reel disassembly
• 7-strand by 7-wire galvanized steel cable with high-visibility orange vinyl cover for durability and easy visual identification
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for structural strength and operator safety
• Solid one-piece steel base with single pedestal support post, no-weld construction, for maximum stability
• Versatile aluminum guide arm adjustable for wall, floor, ceiling, and vehicle mounting positions
• CPC powder coat finish rated for chip resistance and rust inhibition; permanently lubricated precision bearings

Compatibility

Designed as an OEM-style static discharge grounding reel for use in combustible-environment applications; commonly paired with fuel hose reels in industrial and fleet fueling installations.

Installation Notes

Installation should be performed by a qualified technician familiar with hazardous-location equipment and applicable NFPA and OSHA grounding requirements for flammable liquid handling. Shut down all dispensing operations and verify the area is free of ignition sources before mounting or servicing the reel. Ensure the cable connection provides a verified low-resistance path to a true earth ground. Follow all local authority having jurisdiction requirements for static grounding systems in classified locations.

Technical Specifications

• Cable Length: 100 ft
• Cable Type: 7-strand x 7-wire galvanized steel with orange vinyl cover
• Drive Type: Spring drive
• Body Material: Steel
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 28 pounds
• UPC: 674255719255

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SDL-100
