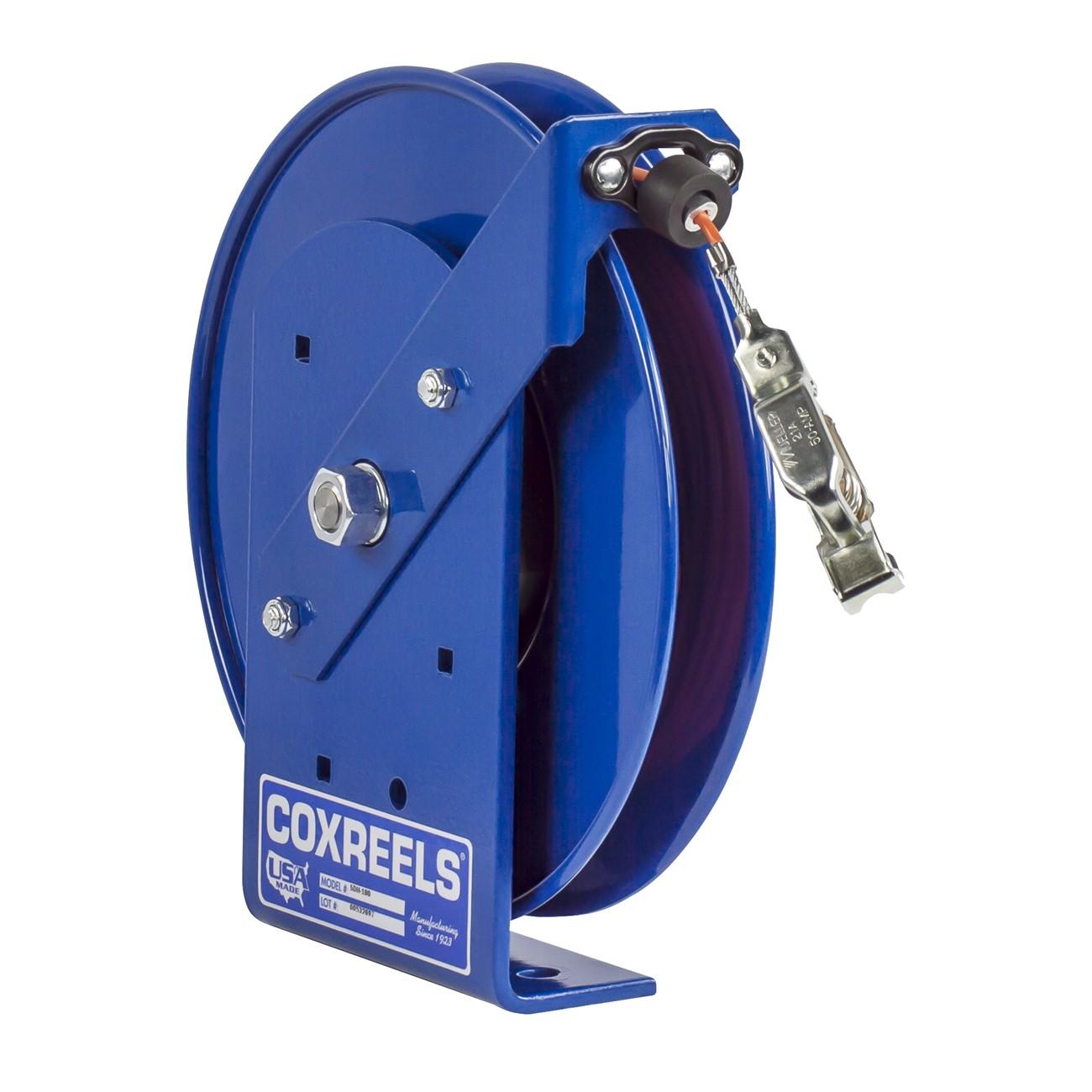

Coxreels SDH-100-1 Static Discharge Cable Reel 100 Ft

Product Description

The COXREELS SDH-100-1 is a static discharge cable reel built for use in combustible and potentially explosive environments where uncontrolled static buildup poses an ignition risk. Rated for 100 feet of cable, it features a direct hand crank retraction mechanism and a heavy-duty steel construction throughout. The reel carries a 7-strand by 7-wire stainless steel cable with a high-visibility orange vinyl cover. It weighs 13 pounds and measures 14.5 inches long, 6.75 inches wide, and 16 inches tall. Licensed electricians and fuel-handling technicians install this reel as a grounding and bonding solution in fuel transfer, chemical dispensing, and similar industrial service applications.

The SDH-100-1 is designed for combustible environments where static discharge cable reels are required alongside fuel hose reels or chemical dispensing equipment. Typical installations include fueling stations, tank farms, fleet service bays, and industrial facilities handling flammable materials. The reel mounts to walls, floors, ceilings, or vehicles using its multi-position aluminum guide arm, making it adaptable to a wide range of service configurations. It ships as a single unit and is ready for direct integration into existing grounding systems.

Key Features

• 100 ft of 7-strand by 7-wire stainless steel cable with high-visibility orange vinyl cover
• Direct hand crank retraction for controlled, manual cable retrieval
• CNC robotically spun and ribbed steel discs with rolled edges for durability and operator safety
• Single pedestal design with solid one-piece steel base and support post, no-weld construction
• Multi-position aluminum guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• Includes 50-amp grounding clamp, adjustable solid rubber cable stop, and permanently lubricated precision bearings
• CPC powder coat finish is chip-resistant and rust-inhibiting

Compatibility

Designed as an OEM-style static discharge grounding reel for use in combustible environments; commonly paired with fuel hose reels in fueling and chemical transfer service setups.

Installation Notes

Installation should be performed by a qualified electrician or certified fuel-handling technician familiar with applicable electrical codes and bonding and grounding requirements for flammable liquid environments. Disconnect and de-energize all related equipment before mounting or connecting the grounding cable. Ensure the grounding clamp makes solid metal-to-metal contact with the receiving vessel or equipment chassis. Verify that mounting hardware is appropriate for the surface type and that the reel position allows full cable extension without obstruction.

Technical Specifications

• Cable Length: 100 ft
• Cable Construction: 7-strand x 7-wire stainless steel with orange vinyl cover
• Grounding Clamp Rating: 50 amps
• Drive Type: Hand crank
• Disc Construction: CNC spun and ribbed steel with rolled edges
• Base Material: Steel, single pedestal no-weld construction
• Guide Arm Material: Aluminum, multi-position
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 13 pounds
• UPC: 674255923751

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SDH-100-1
