Coxreels SD-75 Static Discharge Cable Reel 75 Ft

Product Description

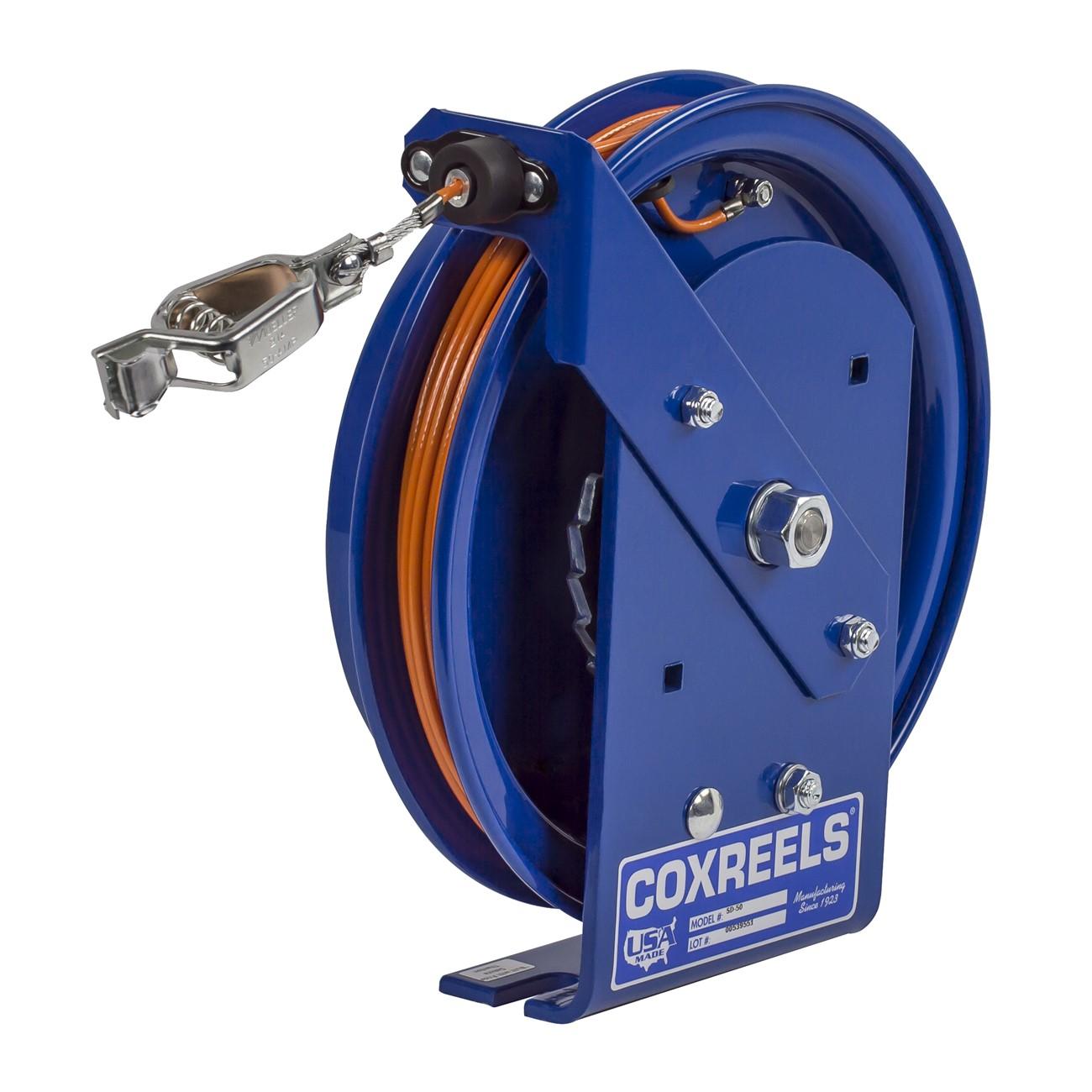

The COXREELS SD-75 is a static discharge grounding cable reel built for use in combustible and potentially explosive environments. It deploys a spring-drive retraction mechanism to keep a 75-foot, 7-strand by 7-wire galvanized steel cable with a high-visibility orange vinyl cover under controlled tension at all times. The reel is constructed from steel with a CPC powder coat finish that resists chips and rust. It ships with a 50-amp grounding clamp. Licensed electricians and fuel-handling technicians install this reel in facilities where static buildup near flammable vapors or fuels represents an ignition risk.

The SD-75 is suited for petroleum dispensing, chemical handling, and industrial fueling operations where static grounding is required before and during fuel transfer. It is commonly paired with fuel hose reels at dispensing stations in commercial and industrial settings. The spring-drive design allows one-handed cable deployment and automatic retraction, which supports efficient workflow in busy service environments. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations.

Key Features

• 75-foot galvanized steel cable with high-visibility orange vinyl cover for use in combustible environments
• Spring-drive cartridge motor is lubricated, enclosed, and removable for maintenance without full reel disassembly
• CNC robotically spun and ribbed steel discs with rolled edges for structural strength and cable protection
• Solid one-piece steel base with single-pedestal support post, no-weld construction for maximum stability
• Multi-position aluminum guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• Includes 50-amp grounding clamp and adjustable solid rubber cable stop; chip-resistant CPC powder coat finish

Compatibility

Designed as an OEM-style static discharge grounding reel for use in combustible fuel-handling and industrial environments; commonly paired with fuel hose reels at dispensing stations.

Installation Notes

Installation should be performed by a licensed electrician or qualified technician familiar with static grounding requirements in hazardous locations. Shut off all fuel flow and de-energize adjacent electrical equipment before mounting or servicing the reel. Verify that the mounting surface is rated for the reel weight and that all fasteners are properly torqued per the manufacturer's mounting instructions. Applicable codes include NFPA 77 for static electricity control and any local authority having jurisdiction requirements for hazardous location grounding.

Technical Specifications

• Cable Length: 75 feet
• Cable Construction: 7-strand x 7-wire galvanized steel with orange vinyl cover
• Drive Type: Spring drive
• Grounding Clamp: 50 amps
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 31 pounds
• Material: Steel
• Finish: CPC powder coat
• UPC: 674255719170

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SD-75
