Coxreels SD-50 Static Discharge Cable Reel 50 Ft

Product Description

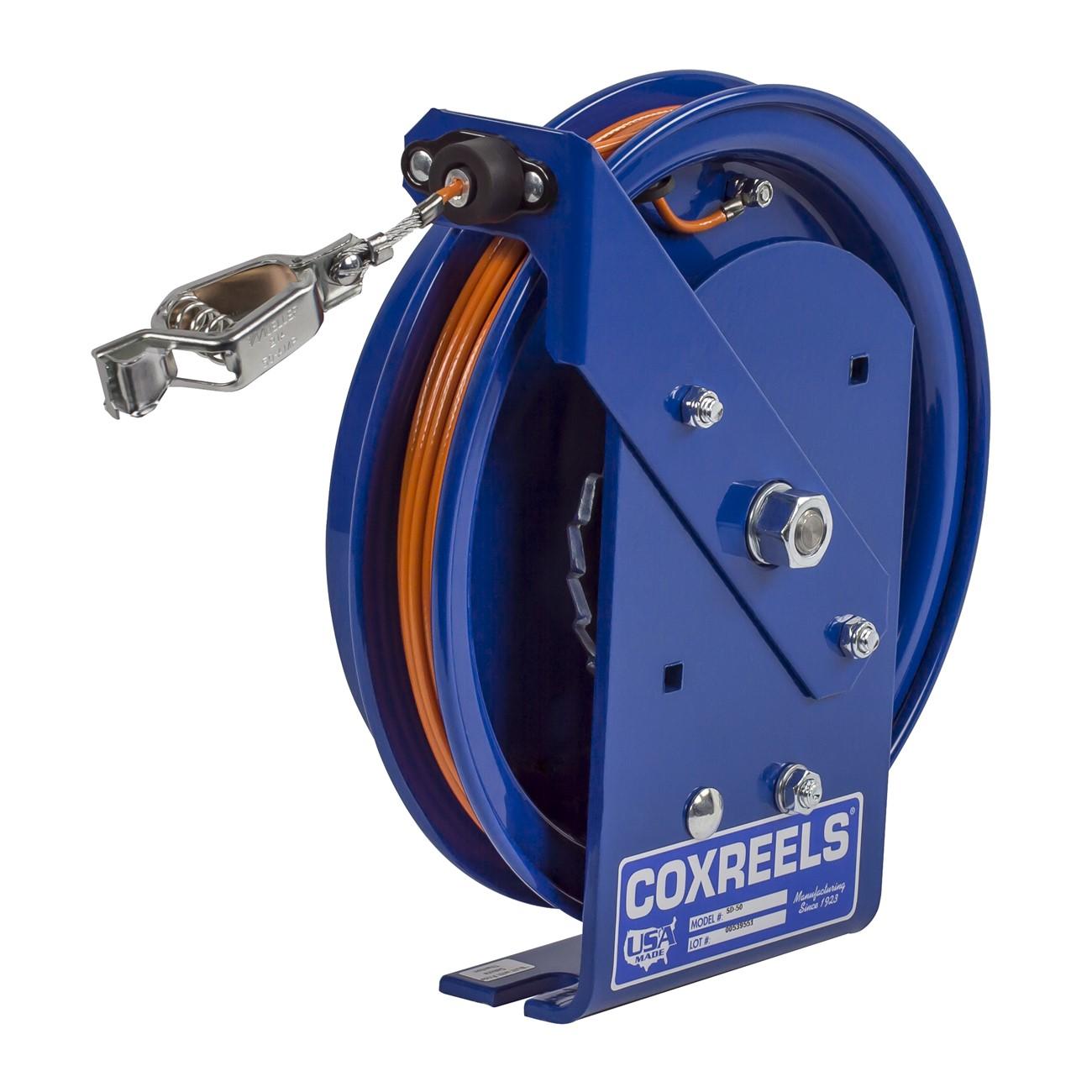

The COXREELS SD-50 is a static discharge grounding cable reel built for use in combustible and fuel-handling environments where uncontrolled static buildup poses an ignition risk. The reel features a spring-driven retraction system, a galvanized 7-strand by 7-wire steel cable with a high-visibility orange vinyl cover, and a 50-amp grounding clamp. The steel drum and base are finished with a chip-resistant, rust-inhibiting CPC powder coat. Licensed HVAC technicians, fueling facility operators, and industrial maintenance trades install this unit alongside fuel hose reels and dispensing equipment to safely dissipate static charge before and during fluid transfer operations.

The SD-50 is designed for combustible-environment service where static grounding is required by safety protocol. Typical installations include fuel dispensing stations, chemical transfer areas, aviation ground support, and any mobile or fixed fueling application where a grounding or bonding point is needed. The reel accommodates wall, floor, ceiling, and vehicle mounting positions via its multi-position aluminum guide arm, making it suitable for both shop-fixed and service-vehicle installations.

Key Features

• Spring-driven cable retraction with an enclosed, lubricated cartridge-style motor that is removable for maintenance without disassembling the reel
• 7-strand by 7-wire galvanized steel cable with high-visibility orange vinyl cover for durability and easy identification
• 50-amp grounding clamp included for positive static discharge connection
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece steel base with single pedestal and no-weld support post for maximum stability
• Multi-position aluminum guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• CPC powder coat finish resists chips and rust; adjustable solid rubber cable stop included

Compatibility

The SD-50 belongs to the COXREELS SD and SDH Series static discharge cable reel line, designed as a companion reel to fuel hose reels used in combustible-environment fueling and fluid transfer applications.

Installation Notes

Installation should be performed by a qualified electrician or industrial maintenance technician familiar with static bonding and grounding requirements in classified hazardous locations. Verify compliance with applicable NFPA and OSHA standards for static control in flammable or combustible environments before mounting. Disconnect all power and depressurize any connected systems before servicing the reel or replacing the cable. Confirm that the mounting surface can support the fully loaded weight of the reel and that the grounding clamp connection point provides a true earth ground path.

Technical Specifications

• Cable Length: 50 ft
• Drive Type: Spring Drive
• Cable Construction: 7-strand x 7-wire galvanized steel with orange vinyl cover
• Grounding Clamp Rating: 50 amps
• Material: Steel, Powder Coated
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 20 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SD-50
