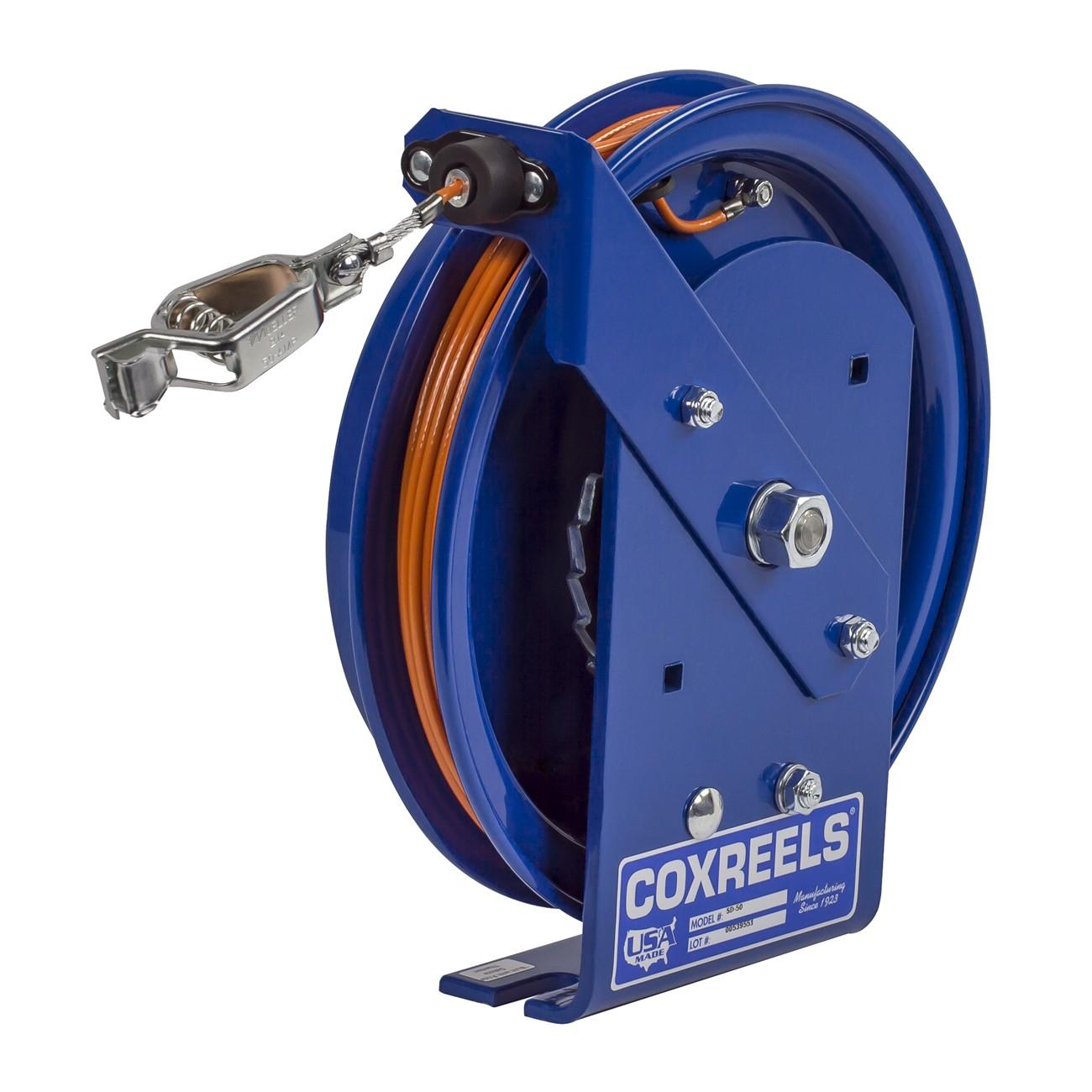

Coxreels SD-100 Static Discharge Cable Reel 100 Ft

Product Description

The COXREELS SD-100 is a static discharge grounding cable reel built for use in combustible and flammable environments where uncontrolled static buildup poses an ignition risk. The spring-drive retraction mechanism keeps cable neatly spooled and ready for deployment. The reel is constructed from steel with a CPC powder coat finish that resists chips and rust under heavy service conditions. It ships as a single unit and is sized for 100 feet of cable capacity. Licensed technicians and fuel-handling professionals working around fuel dispensing, chemical transfer, or similar hazardous-location applications install this reel as a grounding solution paired with fuel or chemical hose reels.

The SD-100 is designed for combustible environments where static grounding is required before and during fluid transfer operations. Typical installations include fuel dispensing stations, chemical handling facilities, and mobile service vehicles. The reel mounts in multiple orientations thanks to a versatile guide arm, making it suitable for wall, floor, ceiling, or vehicle installations. It is commonly paired with fuel hose reels to provide a complete grounding and dispensing setup at a single service point.

Key Features

• Spring-drive retraction with a lubricated, enclosed cartridge-style motor that is removable for maintenance without full disassembly
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Solid one-piece steel base with single pedestal support post, no-weld construction for maximum stability
• Multi-position aluminum guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• 7-strand by 7-wire galvanized steel cable with high-visibility orange vinyl cover
• Includes 50-amp grounding clamp, adjustable solid rubber cable stop, and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style static discharge grounding reel for use in combustible environments; commonly paired with fuel hose reels in dispensing and transfer applications.

Installation Notes

Installation should be performed by a qualified technician familiar with grounding and bonding requirements for hazardous locations. De-energize and isolate any associated fuel or chemical transfer equipment before mounting or servicing the reel. Verify that mounting surface and fastener hardware are rated for the load and environment. Consult applicable NFPA and local electrical codes for grounding continuity and bonding requirements in classified hazardous locations.

Technical Specifications

• Cable Capacity: 100 ft
• Drive Type: Spring Drive
• Cable Construction: 7-strand x 7-wire galvanized steel with orange vinyl cover
• Grounding Clamp: 50 amp
• Frame Material: Steel
• Finish: CPC Powder Coated
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 32 pounds
• Sold As: Each
• UPC: 674255719057

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: SD-100
