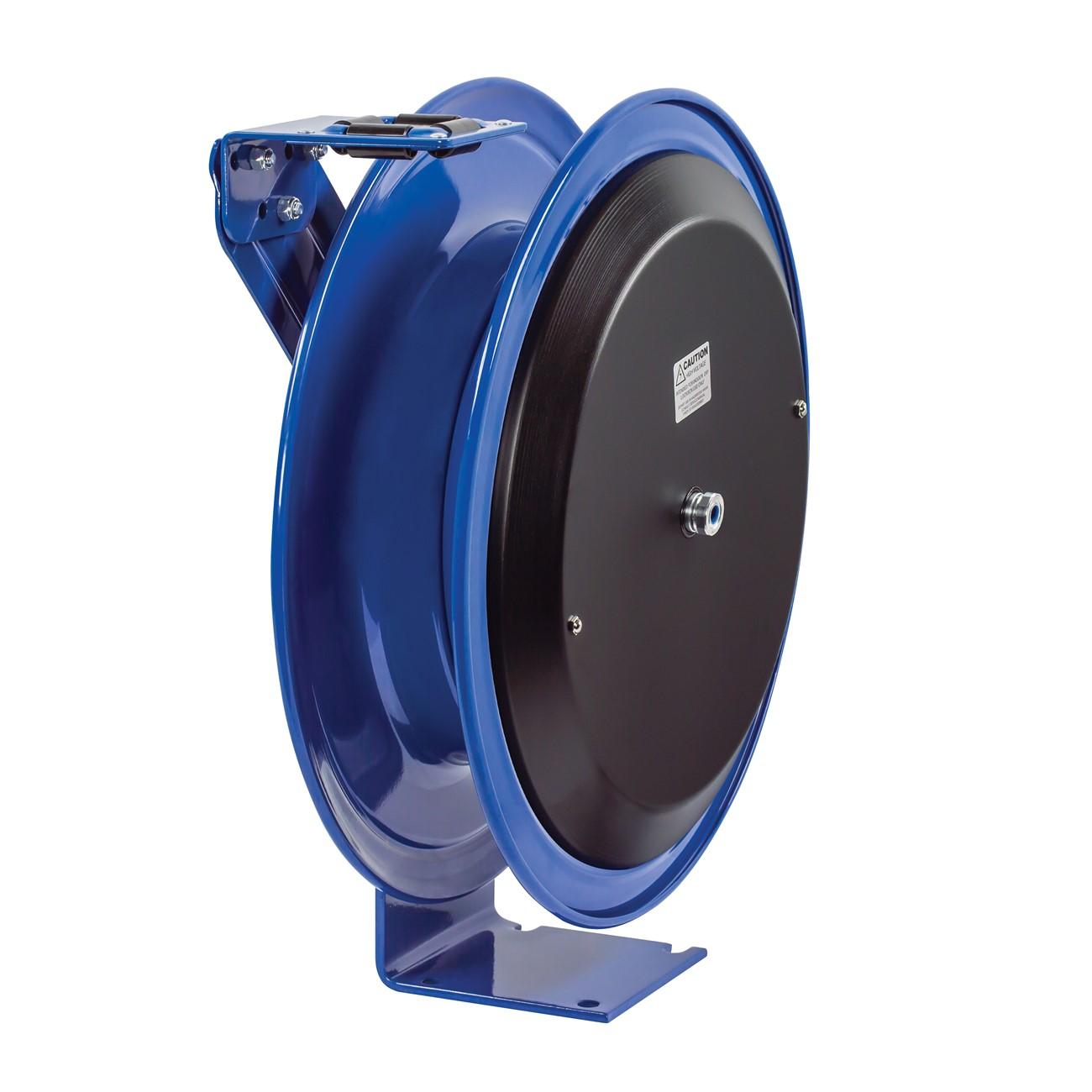

Coxreels PC24L-0016 Power Cord Reel 100 Ft Spring Drive

Product Description

The COXREELS PC24L-0016 is a spring-driven power cord reel built for heavy-duty industrial and commercial use. Part of the PC Series, it replaces tangled extension cords with a self-retracting design that improves job-site safety, productivity, and workflow efficiency. The reel is constructed with CNC robotically spun and ribbed steel discs featuring rolled edges for strength and durability. At 62 pounds and measuring 25 inches long, 13 inches wide, and 27 inches tall, this is a full-size unit intended for permanent or semi-permanent mounting by electricians and maintenance technicians in demanding service environments.

The PC24L-0016 is suited for industrial facilities, commercial shops, vehicle service bays, and similar applications where a reliable, retractable power source is needed at a fixed station. The 100-foot cord capacity provides reach across large work areas without the hazards of loose extension cords on the floor. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a wide range of installation layouts.

Key Features

• Spring-driven self-retraction eliminates tangled cords and reduces trip hazards
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe and convenient servicing
• CNC robotically spun and ribbed discs with rolled edges for increased strength and operator safety
• Solid one-piece steel base and support post with no-weld construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• Chip-resistant, rust-inhibiting powder coat finish with permanently lubricated precision bearings

Compatibility

Designed as a heavy-duty OEM-style industrial power cord reel for permanent or semi-permanent mounting in commercial and industrial service environments.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power sources before servicing the reel, slip ring, or cord connections. Ensure the mounting surface and fasteners are rated to support the unit weight of 62 pounds plus cord load. Select the appropriate mounting orientation using the adjustable guide arm before final installation.

Technical Specifications

• Cord Capacity: 100 feet
• Drive Type: Spring drive
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 62 pounds
• Material: Steel
• UPC: 674255922471

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC24L-0016
