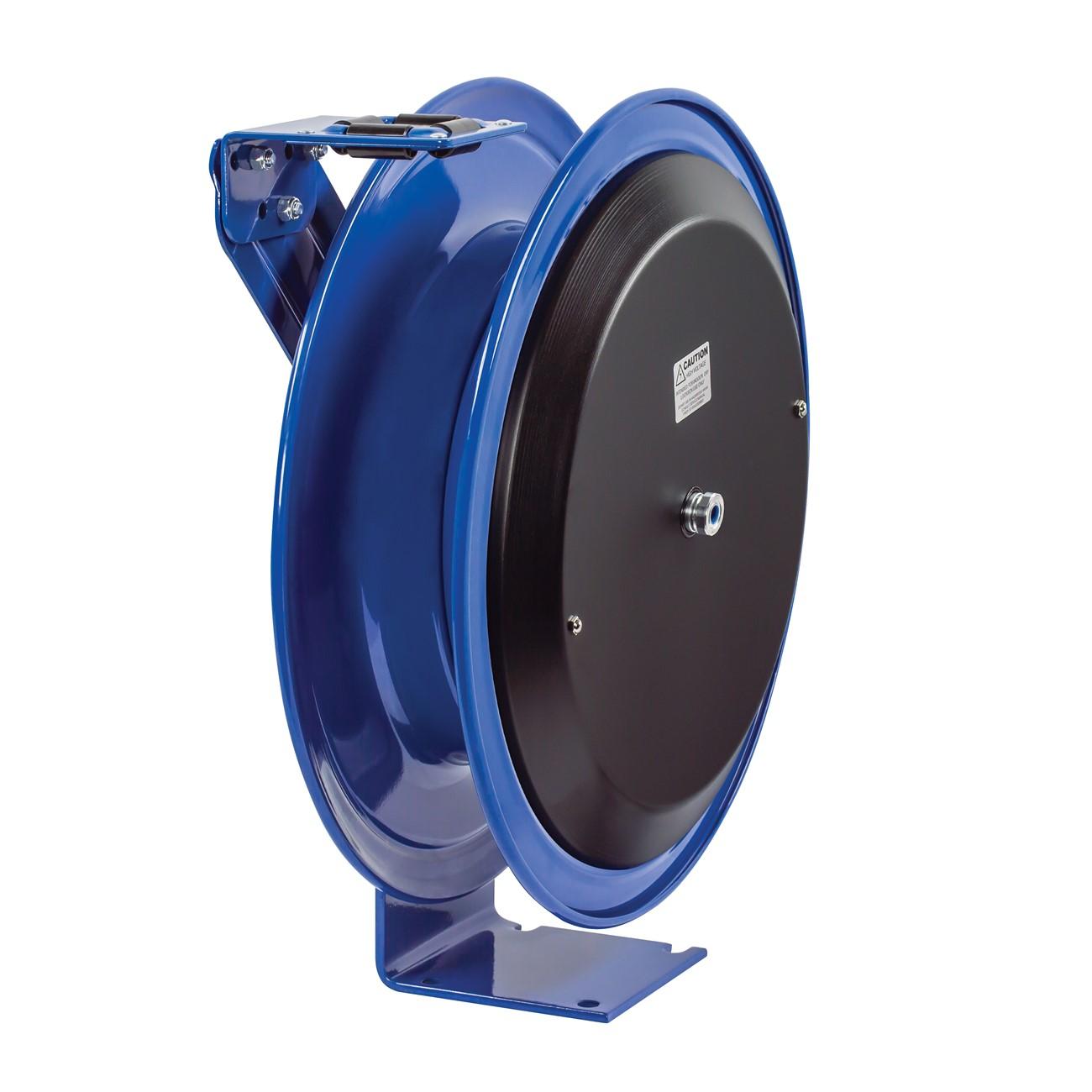

Coxreels PC24L-0012 Power Cord Reel 100 Ft Spring Drive

Product Description

The COXREELS PC24L-0012 is a spring-driven power cord reel built for heavy-duty industrial and commercial use. It replaces tangled extension cords with a self-retracting design that keeps work areas clear and reduces trip hazards. The reel is constructed from powder-coated steel and features CNC robotically spun and ribbed discs with rolled edges for structural strength and operator safety. At 64 pounds, this is a substantial, permanently mounted unit intended for installation by electricians or qualified maintenance technicians in facilities, fleet shops, or industrial service environments.

The PC24L-0012 is suited for permanent installation in facilities requiring reliable, high-cycle power cord management. Typical applications include manufacturing floors, vehicle maintenance bays, warehouses, and service garages where repeated cord extension and retraction is part of daily workflow. The spring-drive mechanism ensures automatic cord retrieval without manual effort, improving both productivity and site safety.

Key Features

• Spring-driven self-retracting mechanism for automatic cord retrieval
• CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is easily removable for field maintenance
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• Solid one-piece steel base with single pedestal and no-weld support post for maximum stability
• Chip-resistant, rust-inhibiting CPC powder coat finish with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct installation unit in the COXREELS PC Series, modeled after the P and SH Series reel platforms for long-lasting, trouble-free performance in demanding industrial environments.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Power down all circuits before making electrical connections at the slip ring assembly. The multi-position guide arm allows mounting on walls, floors, ceilings, or vehicles — confirm mounting surface load capacity before fastening. Do not exceed the cord reel's rated electrical capacity during operation.

Technical Specifications

• Drive Type: Spring Drive
• Cord Length: 100 ft
• Frame Material: Steel
• Finish: CPC Powder Coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 64 pounds
• UOM: Each
• UPC: 674255922648

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC24L-0012
