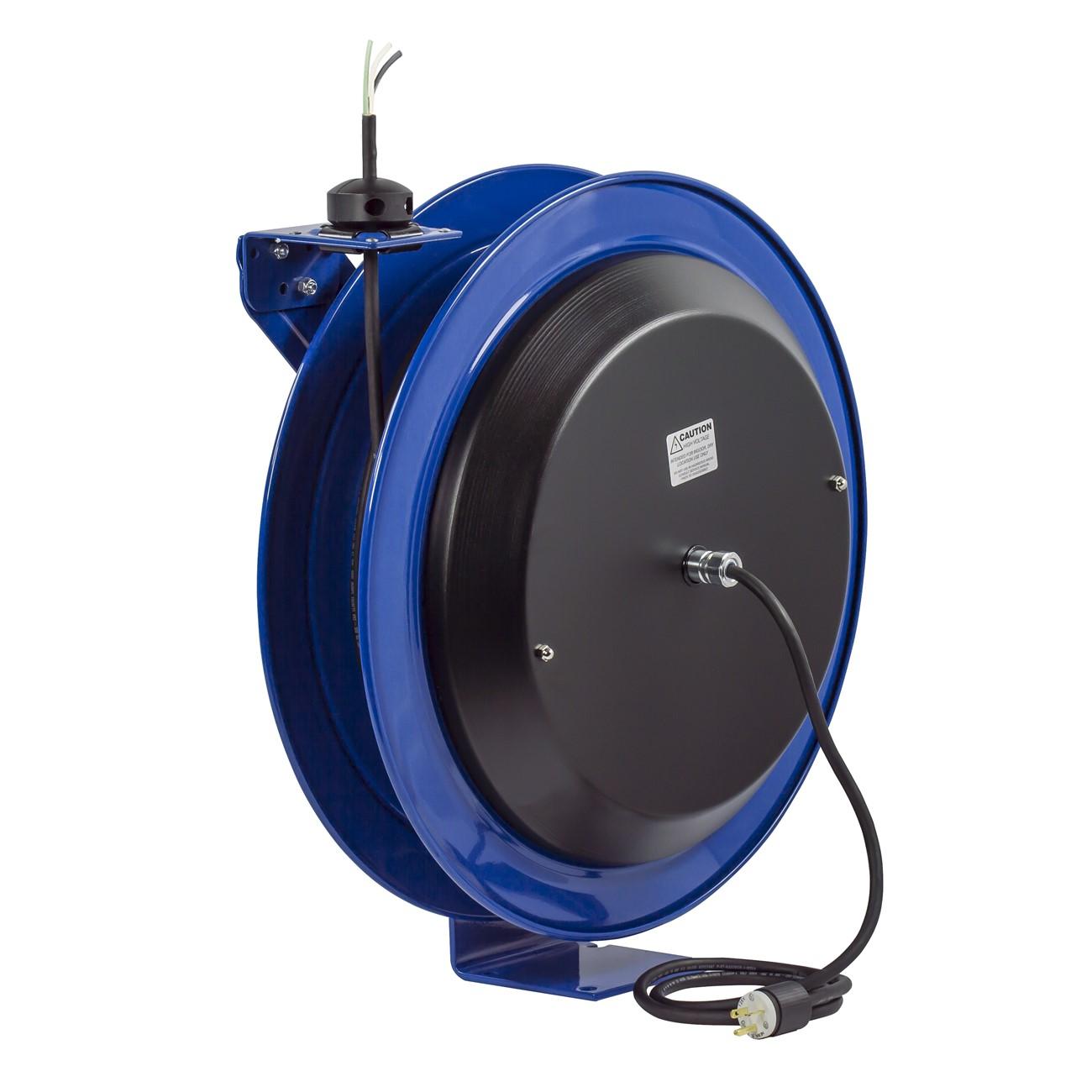

Coxreels PC24-0016-X Power Cord Reel 100 Ft Spring Drive

Product Description

The COXREELS PC24-0016-X is a spring-driven power cord reel built for heavy-duty industrial use. It replaces tangled extension cords with a self-retracting design that keeps job sites safer and more efficient. The reel is constructed from powder-coated steel and features CNC robotically spun and ribbed discs with rolled edges for strength and durability. At 71 pounds, this is a substantial unit intended for permanent or semi-permanent mounting in demanding environments. A 5-foot lead cable and grounding plug are included. Licensed electricians and industrial maintenance professionals are the primary installers.

The PC24-0016-X is designed for industrial and commercial applications where a reliable, retractable power source is needed at a fixed workstation, service bay, warehouse, or vehicle-mounted position. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to a wide range of facility layouts. The 100-foot cord capacity suits applications where equipment must be reached at a distance from a fixed power drop. This reel fits environments where a standard extension cord would create a tripping hazard or wear out quickly under repeated use.

Key Features

• Spring-driven self-retraction eliminates tangled cords and reduces trip hazards
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe and convenient servicing
• CNC robotically spun and ribbed discs with rolled edges for increased strength and operator safety
• Single-pedestal steel base with one-piece construction and no-weld support post for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• Chip-resistant, rust-inhibiting powder coat finish with permanently lubricated precision bearings

Compatibility

The PC24-0016-X is part of the COXREELS PC Series, modeled after the P and SH Series platforms, and is designed as a heavy-duty industrial-grade power cord reel for use wherever a retractable cord management solution is required.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power at the source before making any electrical connections or performing maintenance on the slip ring assembly. The multi-position guide arm should be secured fully before placing the reel in service. Verify that the mounting surface can support the reel weight of 71 pounds plus any dynamic load from cord retraction.

Technical Specifications

• Cord Capacity: 100 ft
• Drive Type: Spring
• Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 71 pounds
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC24-0016-X
