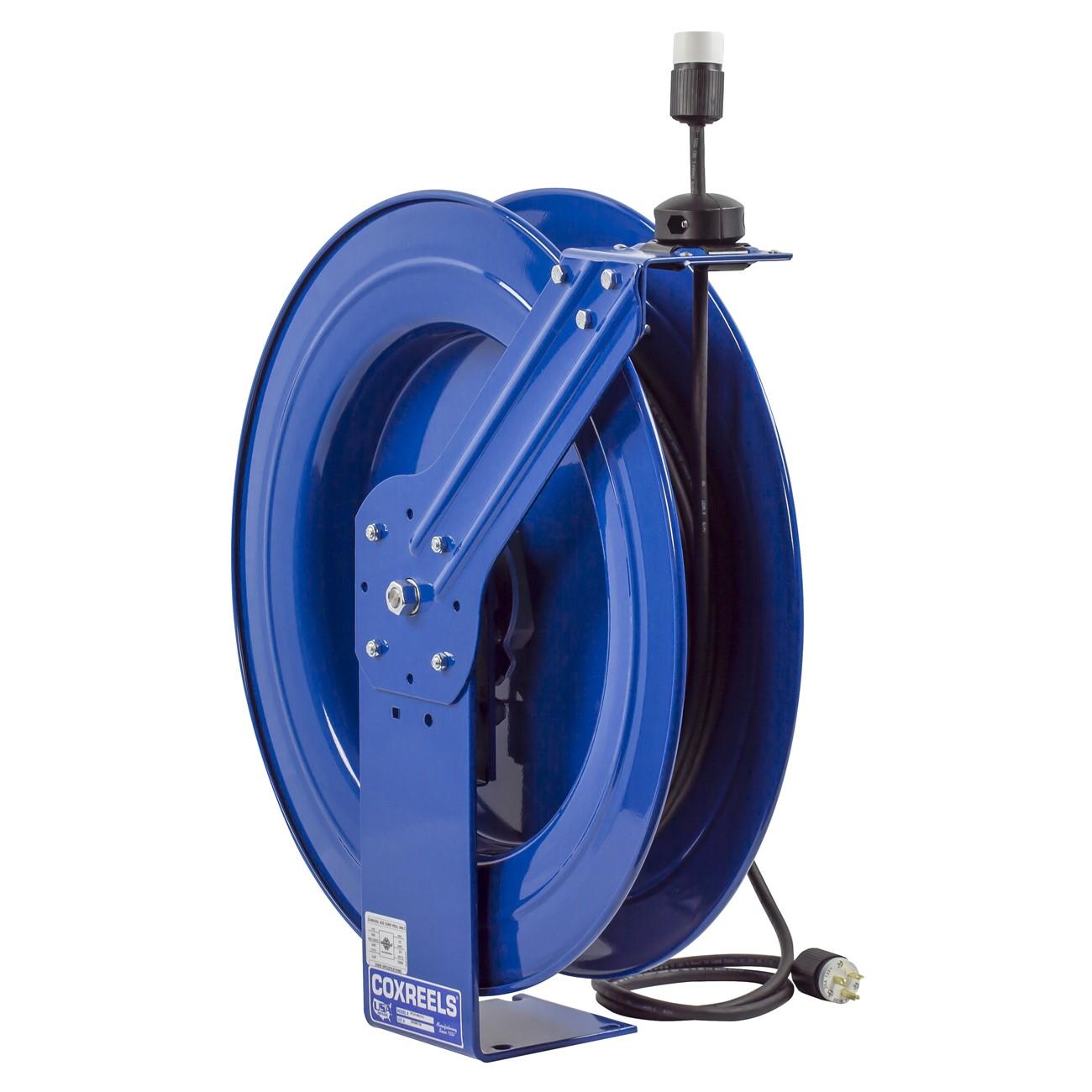

Coxreels PC24-0016-A Power Cord Reel 100 Ft Spring Drive

Product Description

The COXREELS PC24-0016-A is a spring-driven industrial power cord reel built for heavy-duty use in demanding work environments. Part of the COXREELS PC Series, it holds up to 100 feet of power cord and self-retracts automatically to eliminate tangled extension cords on the job site. The reel is constructed with CNC robotically spun and ribbed steel discs with rolled edges for strength and cord protection. At 73 pounds, the unit is built on a solid one-piece steel base with a single pedestal and support post — no welds — providing maximum stability without excess bulk. Licensed electricians and industrial maintenance technicians are the primary installers of this unit.

The PC24-0016-A is designed for industrial and commercial applications where a reliable, retractable power source is needed at a fixed or vehicle-mounted location. Typical install scenarios include manufacturing facilities, service bays, warehouses, and fleet maintenance shops. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable across a wide range of workspace configurations. The unit ships as a single reel assembly with a 5-foot lead cable, grounding plug, and a single industrial receptacle included.

Key Features

• Spring-driven self-retraction eliminates tangled cords and reduces trip hazards
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe and straightforward servicing
• CNC robotically spun and ribbed discs with rolled edges provide added disc strength and cord protection
• One-piece steel base with single pedestal and no-weld support post for structural stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• Chip-resistant, rust-inhibiting powder coat finish with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style heavy-duty industrial power cord reel replacement or new installation unit, modeled after the COXREELS P and SH Series for long-lasting, trouble-free performance in industrial and commercial environments.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power at the source before beginning any wiring connections to the reel assembly. Verify that the mounting surface — wall, ceiling, floor, or vehicle structure — is rated to support the weight of the reel and cord load. Do not exceed the rated cord length or load capacity of the unit.

Technical Specifications

• Cord Capacity: 100 feet
• Drive Type: Spring driven
• Disc Material: Steel
• Base Material: Steel
• Finish: Powder coat, chip-resistant and rust-inhibiting
• Lead Cable: 5 feet
• Included: Grounding plug, single industrial receptacle
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 73 pounds
• UOM: Each
• UPC: 674255922389

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC24-0016-A
